8mm 10mm Custom Insulated Glass Unit Replacement For Office Building / Hospital
8mm 10mm Custom Insulated Glass Unit Replacement For Office Building / Hospital
8mm 10mm Custom Insulated Glass Unit Replacement For Office Building / Hospital
8mm 10mm Custom Insulated Glass Unit Replacement For Office Building / Hospital
Specifications
Brand Name :
Crystal Base
Model Number :
TSG
Certification :
CE/CSI/BS/ASTM
Place of Origin :
China
MOQ :
100sqm
Price :
negotiation
Payment Terms :
T/T ,L/C,DP or western Union
Supply Ability :
3,000 Sqm per Day
Delivery Time :
15 days after order confirmed
Packaging Details :
Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer
Product Name :
insulated glass UnitS
Application :
Airports and buildings near highways and railways, that require sound insulation properties.
Size Of Panel :
Various
Standard :
CE/CSI/BS/ASTM
Type :
tinted/Reflective/Tempered/Laminated/Argon/Low-Eclear/tinted/Reflective/Tempered/Laminated/Argon/Low-E
Thickness :
4+6A+4mm,5+9A+5mm,6+12A+6mm,8+15A+8mm
Transmittance :
90%
Technique :
Tempered glass
Color :
F-green, sapphire blue, ocean blue, bronze, dark gray, and golden etc.
Description

8mm 10mm Custom Insulated Glass Unit Replacement For Office Building / Hospital

Specification

Product name

insulated glass unit

Glass composition

Float glass, laminated glass, tempered glass,low-E glass,tinted glass etc.

Thickness

Glass Thickness:3mm -19mm

Size

1)Max size: 3000mm x 8000mm Min size:200mmx200mm

2)According to the customer requirements

Color

Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue,

ocean blue, bronze, dark gray, and golden etc.

Shape

1)semi-circle 2)rectangle 3)arch 4)special shape

Filled Gas

1) air 2) vacuum 3) argon, etc.

Application

1)Office buildings, hospitals, hotels, houses and buildings with heating or

cooling requirements.

2)For use in airport control towers, train windows and other environments

that need regulated Airports and buildings near highways and railways,

that require sound insulation properties.

Description

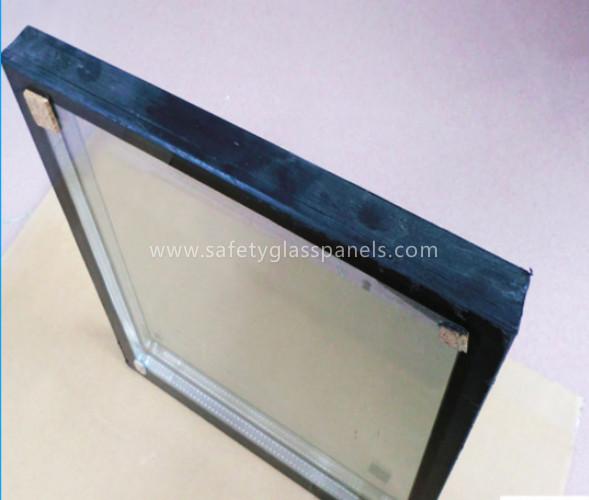

insulated Glass are hermetically sealed combinations of two or more panes of glass

separate by a dry airspace.The air trapped between the two pieces of glass acts as

an insulaor slowing the rate at which heat and cold can pass through the unit.

The more air sandwiched between the glass the better insulator effect you have.

Feature:

​

1. Engergy conversation,heat preservation and heat insulation

2. Comfortabenss sound insulation and noise reduction

3. Environment protection .low temperature but No dew

4. Beautiful clear and penetrated

The clear insulated glass data:

Code


Product


Visible light


Solar energy

SHGC

SC

U Value

W/(m2.K)
EN673

T%

R%

T%

R%

1

4mm Clear Glass

90

8

85

8

0.87

1.00

5.8

2

5mm Clear Glass

90

8

83

8

0.86

0.98

5.8

3

6mm Clear Glass

89

8

82

7

0.97

0.85

5.7

4

8mm Clear Glass

88

8

79

7

0.83

0.95

5.7

5

10mm Clear Glass

88

8

76

7

0.8

0.92

5.6

6

12mm Clear Glass

87

8

72

7

0.78

0.87

5.5

7

15mm Clear Glass

86

8

69

7

0.75

0.87

5.5

8

19mm Clear Glass

83

8

62

6

0.7

0.81

5.3
