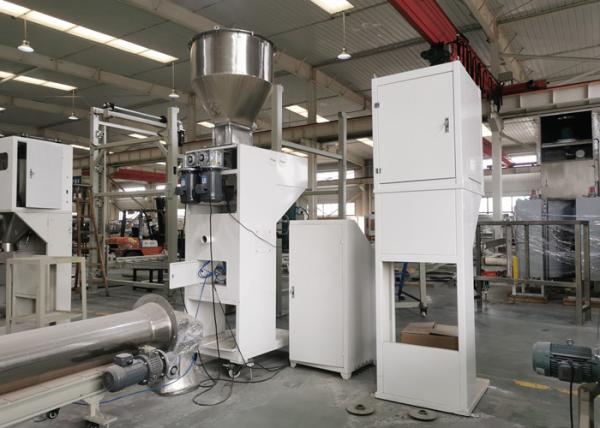

Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry
Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry
Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry
Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry
Specifications
Brand Name :
EAGLE
Model Number :
SXP50PW
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Voltage :
380V
Package type :
Normal open or M type bag
Function :
Weighing, filling, sealing
Frequency :
50-60Hz, 380V
Power :
4 KW
Packing Speed :
2-4 bags per min
Air pressure :
0.4-0.6 MPa
Automatic grade :
Semi-automatic
Bag sealing typpe :
Thread stitched / heat sealed
Description

Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry

Machine Features

Sole weight feeding system: Inverter velocity control, double-speed feeding.

Bag clamping system composes of weighing frame, sensor, bracket.

Pneumatic control system for material feeding, filling and bag clamping.

With belt transmission for high stability

With hopper as a feeding buffer device.

It ensures weighing velocity and precision.


Application Scope

Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.

Procedure

Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.


Technical Parameters

Model Weighing Scope Speed Accuracy Power Air pressure
SXP05PB 0.5-5kg 4-6 bags/minute 0.2-1%F.S 2Kw

0.4-0.6Mpa
SXP25PW 5-25KG 3-5 bags/minute

0.2%F.S

4Kw
SXP25PB 5-25KG 5-10bags/minute
SXP50PW 10-50kg 3-5 bags/minute


Machine Main Components List

No Name Model Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Avionics 1
4 Approach switch BN-M18 Omron 1
5 Optoelectronic switch FQ31-TO8P Omron 1
6 Other low-pressure component Zhengtai 1batch
7 Motor Zhengjiang China 1batch
8 Cylinder AIRTAC 1batch
9 Magnetic valve AIRTAC 1batch
10 Other pneumatic element AIRTAC 1batch


After-sale Service

1.We will test the machine before machine delivery. 2.Professional manual shipping together with the machine.

3.Professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

Packaging and Delivery


1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.

Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry


WHY CHOOSE US


1.We have 30 years’ experience to packing machine
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory

4.ISO9001 certified workshop and CE

5.The supporter of spare part all are famous company and have reliable quality
