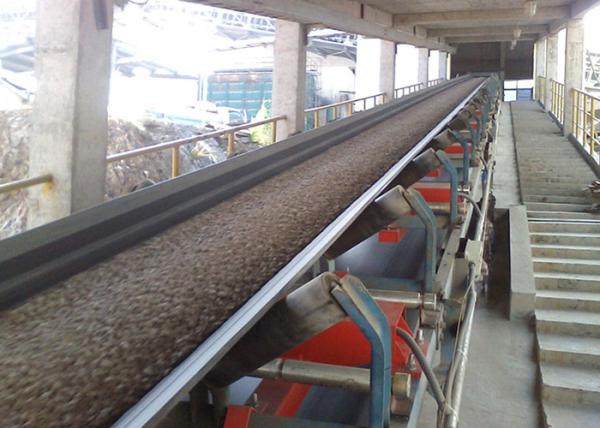

Food Grade 220VAC 600mm Conveyor Belt Weigher In Salt Industry
Food Grade 220VAC 600mm Conveyor Belt Weigher In Salt Industry
Food Grade 220VAC 600mm Conveyor Belt Weigher In Salt Industry
Food Grade 220VAC 600mm Conveyor Belt Weigher In Salt Industry
Specifications
Brand Name :
EAGLE
Model Number :
FH-4
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
One unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 units/month
Delivery Time :
8-15 working days
Packaging Details :
Film wrapped and packed in wooden case
Origin :
Hefei, China
Load cell output :
2.0±0.002MV/V
User manual :
Chinese / English
Weighing type :
Continuous or intermittent
Power :
220VAC, 50 Hz
Key point :
Easy to Operate
HS code :
84741000
Operating temperature :
-10~50℃
Description

Conveying Belt Scale In Salt Industry , Belt Conveyor Machine With Food Grade

Brief Introduction

Belt scale to be easily installed in the industrial field of ingredients and intermediate measurement section, to measure materials continuously.

Simple structure, stable working, easy operation and maintenance.

Widely used in, fertilizer, metallurgy, electric energy, coal, mining, ports, chemical, building materials and other industries.


Application Scope

Series FH electronic conveyor belt scales are widely used for the measurement in conveying processes of building materials, metallurgy, electric power, chemical, coal, mining, ports and other industries.

It can not only be used in conventional environment, but also in acid, alkali, salt and atmospheric corrosion environments.


Main performance parameter

NO. Model Bandwidth (mm) Flow range (m³/h) Accuracy
1 FH05 500 0.05-6 Over0.5%
2 FH 06 600 0.5-10
3 FH 08 800 2-30
4 FH 10 1000 5-100
5 FH 12 1200 10-200
6 FH 14 1400 30-300
7 FH 16 1600 50-500
8 FH 18 1800 100-1000

Scope of Supply

No. name Specification Unit Qty Origin Note
1 Weighing bridge FH-4 Unit 1 Saimo
2 Totalizer SA-201 Set 1 Saimo
3 Load cell

PLR9363-LS

 Piece 4 Saimo
4 Speed measuring device PLR-12R Unit 1 Saimo
5 Junction Box PLR-JB Piece 1 Saimo
6 Cable

RVVP 2*0.5

RVVP 4*0.5

 Meter Supplier of Saimo
7 Installation accessories Unit 1 Saimo Contains threaded hoses, hose connectors, gaskets, mounting bolts and nuts, etc.
8 User manual Unit 2 Saimo
9 Check hanging code Unit 1 Saimo Additional paid part

Machine Characteristics

1. The frame of the conveyor belt scale is made of cold bending C type steel plate, and it has a rational structure and strong intensity.

2. Low noise, less vibration, dust proof, high reliability and a long service life.

3. Annular belt without junction, and users can choose parallel belt, baffle plate or rimmed belt structure.

4. Unique X type leaf spring measuring device to make better linearity and repeatability.


Our Service

Technical services

3.1 Design of production line and solutions according to buyer's requirement.

3.2 In 7 days after the receipt of deposit, the seller shall provide related technical documents for equipment installation, in addition to those with special requirements.

3.3 Before delivery, the seller can modify the previous solutions according to buyer's requirement.

Load cell

The load cell PLR9363-LS used in the FH type floating scale series belt scale is a strain gauge load cell

Sensor type Shear beam
Rated load(kg) 50,100,200,300,500,1000,2000
Sensitivity(mV/V) 1.8±0.005
Creep (30 minutes) ±0.05％FS
Zero balance ±1％FS
Zero temperature effect(％FS/10℃) ±0.02
Input resistance 400±10Ω
Output impedance 352±3Ω
Range of working temperature -30℃～+70℃
Safety overload 120％FS
Material Alloy steel
Outlet diameter φ5mm
Outlet length 3m

Package and Delivery

Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.

We can also transport the machines by flight, all depend on client's requirement.
