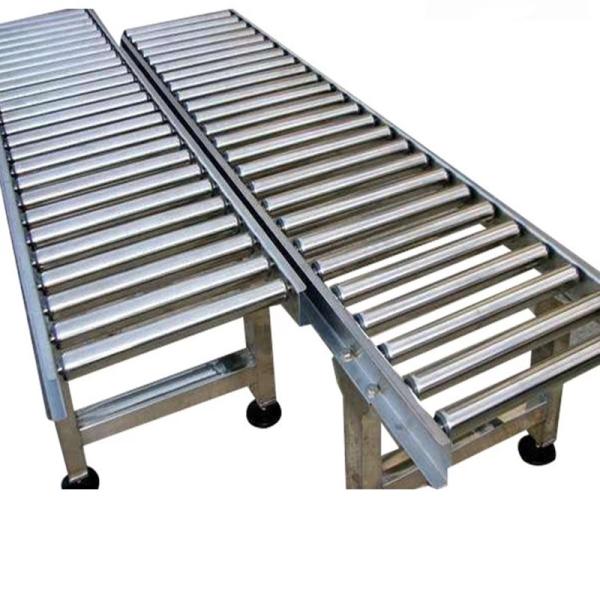

Carbon Steel 1.5KW Palletizing Conveyor For Beverage , Food
Carbon Steel 1.5KW Palletizing Conveyor For Beverage , Food
Specifications
Brand Name :
EAGLE
Model Number :
XYR-ZXA
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One set
Price :
USD 900.00-4,000.00/set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/month
Delivery Time :
6-10 working days
Packaging Details :
Film wrapped and packed in wooden cases
Type :
Palletizing Conveyor
Roller Material :
Galvanized
Max loading :
2 tons
Outrigger :
Carbon steel
Beam :
Bending plate, thickness 4-5mm
Installation :
Online Guide, easy to install
Power :
0.75 / 1.5KW
Usage :
Beverage , Food
Description

Carbon Steel 1.5KW Palletizing Conveyor For Beverage , Food

Palletizing Conveyor is a common piece of mechanical handing equipment that moves material from on location to another .Palletizing Conveyor are especialy useful in application involving the transportation of heavy pallets or goods .It is widely used in various area.

Conveyor Type - Bag shaping conveyor

The product is conveyed by the vibration of the square roller, which makes the bag smoother, and the palletizing type on the pallet is neat and beautiful; at the same time, the shaping conveyor can pull the product apart at a certain distance, which is convenient for photoelectric detection and palletizing of the further station.

No. Model Name Size
1 XYR-ZXA Bag shaping conveyor A Length 2000mm, roller length 604mm, Height 750mm
2 XYR-ZXB Bag shaping conveyor B Length 2000mm, roller length 604mm, Height 1000mm
3 XYR-ZXC Bag shaping conveyor C Length 2000mm, roller length 604mm, Height 1200mm

Technical Parameters

No. Name Brand/Model Material
1 Motor CPG Aluminum (shell)
2 Square roller Square roller 80x80 Carbon steel galvanized
3 Bearing block LK Cast iron
4 Outrigger Square tube 80x40 Carbon steel spray
5 Beam Bent plate, thickness 4mm Carbon steel spray
6 Guardrail Bent plate, thickness 1.5mm Stainless steel 201

Roller Conveyor Features

Roller conveyor is easy to link. And it can form a complex logistics conveyor system and shunt mixing system matched with multiple roller line and other conveying equipment.

It has the big transmission capacity, quick speed and fast running features, also can achieve more varieties of shunt conveying.

Options

Side guides;

End stop;

Caster wheel with brake;

Heavy duty adjustable feet can be anchored to the ground.

Package and Shipping

Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.

Delivery: 7-15 working days after deposit.

Carbon Steel 1.5KW Palletizing Conveyor For Beverage , Food

FAQ

Q:How about your warranty?

A: Our warranty is 12 months. Normally, the general after-sale service may be as below:

The technical support is permanent.

The paid spares parts could be provided at any time.

We have agent in some countries to offer compensable service.

Q:Which port is the nearest ?

A:Shanghai, Ningbo, Guangzhou, Shenzhen

Q:What's your lead time ?

A:Normally 20-30 days after we receive your deposit.
