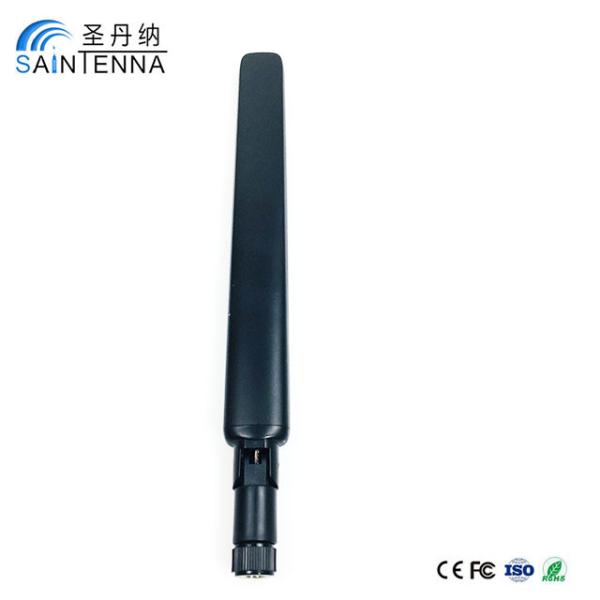

Active 4dbi 4G LTE Antenna , 698-2700MHz Rubber Duck Antenna SMA Connector
Active 4dbi 4G LTE Antenna , 698-2700MHz Rubber Duck Antenna SMA Connector
Active 4dbi 4G LTE Antenna , 698-2700MHz Rubber Duck Antenna SMA Connector
Active 4dbi 4G LTE Antenna , 698-2700MHz Rubber Duck Antenna SMA Connector
Specifications
Place of Origin :
China, Shanghai, China (Mainland)
Brand Name :
Saintenna
Model Number :
4G Lte Antenna
Supply Ability :
10000 Piece/Pieces per Week Active 4dbi 4g lte antenna
Packaging Details :
Carton or customized by customer
MOQ :
Negotiation
Price :
Negotiation
Name :
4G Lte Antenna
Connector :
SMA Plug
Gain :
4dbi/customized
Frequency Range :
699~960MHz/1710~2700MHz
Color :
Black or white
Material :
rubber/pcb/fpc/Fiberglass antenna
VSWR :
<3
Impedance :
50 Ohm
Type :
External Plastic Antenna
Port :
Shanghai, Shenzhen
Description

Active 4dbi 4g lte antenna 698-2700MHz Rubber Duck Antenna SMA

Product Description

Over 10 years experience in antenna design and development.Welcome to visit our factory.

We offer oem&odm service

All the specifications bellow were customized by customers, we provide OEM service.

Our antenna materials are: PCB, FPC, rubber rod etc.

Specification:

Frequency range

699~960MHz/1710~2700MHz

S.W.R

≤3

Gain

4.0dBi

Connector

SMA Plug

Impedance

50 Ohm

Reliability test:

Project

Test condition

Result

Storage environment

Temperature, humidity, air pressure test are as follows:

1.Temperature: -30℃~+80℃
2.Humidity: 45%-85%

3.Pressure: 86kpa-106kpa

Normal electrical and mechanical properties

High and low temperature test

The 5 cycle is between 70℃ and 40℃. Then check the appearance quality

Meet the mechanical and electrical properties

Resistance to constant damp heat test

Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H

Meet the mechanical and electrical properties

Vibration test

Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times

Normal electrical and mechanical properties

Drop test

1m height drop

Normal electrical and mechanical properties

Drawing force test

Push pull tester to test the strength of the instrument:≥10N

Normal electrical and mechanical properties

Voltage resistance

1. Insulation spark voltage 1.5KV

2. Sheath spark voltage 1.5KV

3. Insulation resistance to sheath voltage 0.5KV

Normal electrical and mechanical properties

All the product had passed the ROHS environmental standards.
