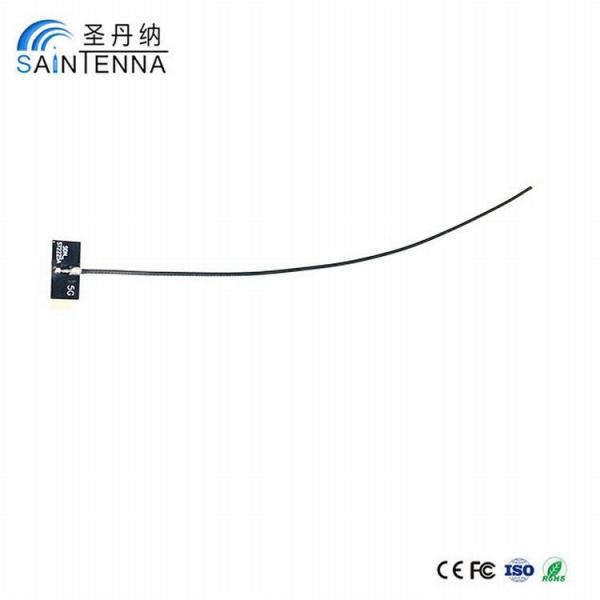

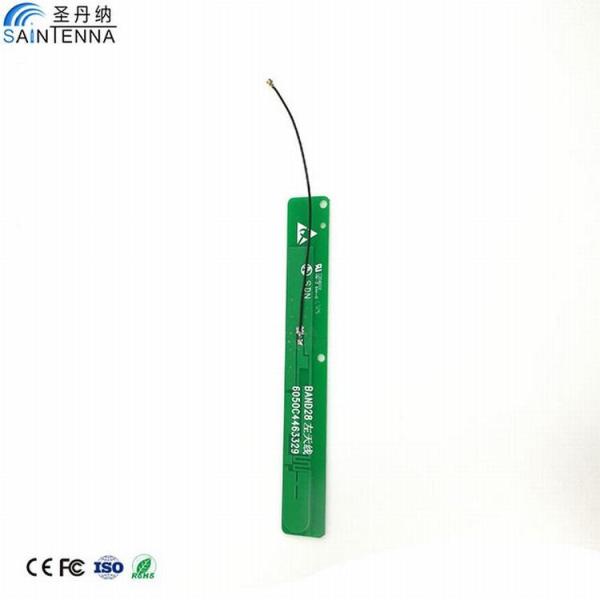

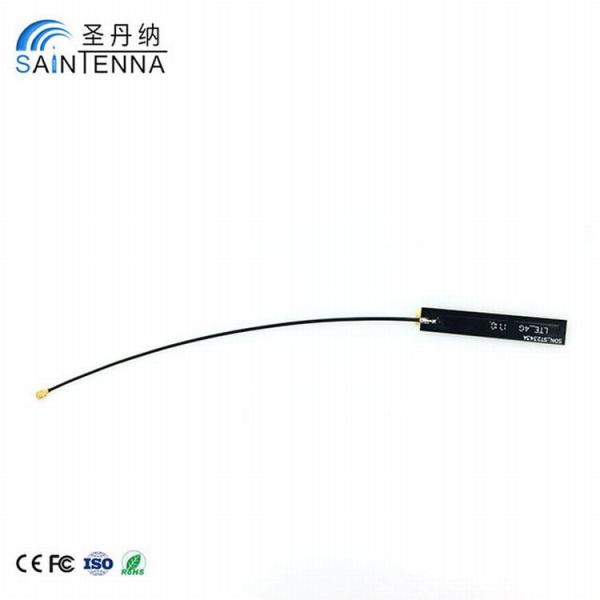

Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Small Size 5.8Ghz PCB Wifi Antenna 50 Ohm Impedance With SMA Connector
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Saintenna, Saintenna
Model Number :
Wifi Pcb Antenna
Supply Ability :
10000 Piece/Pieces per Week Small Size 5.8Ghz Wifi Built-In PCB Antenna With Sma Connector
Packaging Details :
Carton or customized by customer
MOQ :
Negotiation
Price :
Negotiation
Name :
Wifi PCB Antenna
Gain :
3dbi/5Dbi
VSWR :
<1.5
Frequency Range :
2.4~2.5GHz/ 4.9~5.9GHz
Impedance :
50 Ohm
Color :
Black
Type :
Internal
Environmental Standard :
ROHS, REACH
Port :
Shanghai, Shenzhen
Description

Small Size 5.8Ghz Wifi Built-In PCB Antenna With Sma Connector

Specification:

Product Name

2.4GHz wifi receiver antenna/ 5GHz wifi receiver antenna/ 2.4G 5G dual band wifi receiver antenna

Frequency Range

2.4~2.5GHz/ 4.9~5.9GHz/ 2.4~2.5GHz 4.9~5.9GHz dual band

S.W.R

<1.5

Gain

3dBi~5dBi

Connector

SMA M/F, RP SMA, UFL, IPEX

Impedance

50Ohm

Environmental Standard

ROHS, REACH

Reliability test:

Project

Test condition

Result

Storage environment

Temperature, humidity, air pressure test are as follows:

1. Temperature: -30℃~+80℃
2. Humidity: 45%-85%

3. Pressure: 86kpa-106kpa

Normal electrical and mechanical properties

High and low temperature test

The 5 cycle is between 70℃ and 40℃. Then check the appearance quality

Meet the mechanical and electrical properties

Resistance to constant damp heat test

Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H

Meet the mechanical and electrical properties

Vibration test

Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times

Normal electrical and mechanical properties

Drop test

1m height drop

Normal electrical and mechanical properties

Drawing force test

Push pull tester to test the strength of the instrument:≥10N

Normal electrical and mechanical properties

Voltage resistance

1. Insulation spark voltage 1.5KV

2. Sheath spark voltage 1.5KV

3. Insulation resistance to sheath voltage 0.5KV

Normal electrical and mechanical properties

All the product had passed the ROHS environmental standards.
