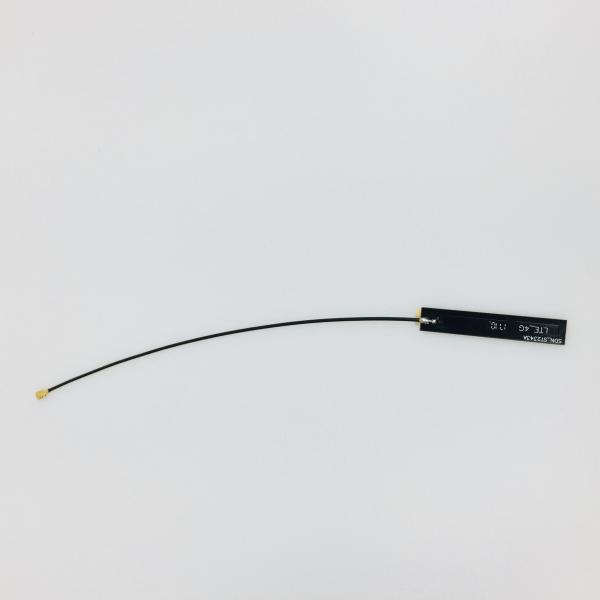

High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
High Gain Internal 4G LTE PCB Antenna Full Band ROHS REACH Environmental Standard
Specifications
Brand Name :
Saintenna
Place of Origin :
Shanghai
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000pcs per day
Delivery Time :
Customized
Packaging Details :
Carton
Product Name :
High gain internal 4G LTE full band PCB antenna Ipex connector
Frequency Range :
Dual band
Gain :
customized
Connector :
Customized
Color :
Cutomized
VSWR :
<3
Description

High gain internal 4G LTE full band PCB antenna Ipex connector

Product Description

Specification:

Product Name 2.4GHz wifi receiver antenna/ 5GHz wifi receiver antenna/ 2.4G 5G dual band PCB antenna
Frequency Range 2.4~2.5GHz/ 4.9~5.9GHz/ 2.4~2.5GHz 4.9~5.9GHz dual band
S.W.R <1.5
Gain 3dBi~5dBi
Connector SMA M/F, RP SMA, UFL, IPEX
Impedance 50Ohm
Environmental Standard ROHS, REACH


Reliability test:

Project Test condition Result
Storage environment

Temperature, humidity, air pressure test are as follows:
1. Temperature: -30℃~+80℃
2. Humidity: 45%-85%
3. Pressure: 86kpa-106kpa

 Normal electrical and mechanical properties
High and low temperature test The 5 cycle is between 70℃ and 40℃. Then check the appearance quality Meet the mechanical and electrical properties
Resistance to constant damp heat test Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H Meet the mechanical and electrical properties
Vibration test Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times Normal electrical and mechanical properties
Drop test 1m height drop Normal electrical and mechanical properties
Drawing force test Push pull tester to test the strength of the instrument:≥10N Normal electrical and mechanical properties
Voltage resistance

1. Insulation spark voltage 1.5KV
2. Sheath spark voltage 1.5KV
3. Insulation resistance to sheath voltage 0.5KV

 Normal electrical and mechanical properties
OUR ADVANTAGES

All the specifications bellow were customized by customers,we provide OEM/ODM service.
Samples are available.
Fast delivery, high quality and best price.
Over 10 years experience in antenna design and development.

If any questions, pls feel free to contact with us,
you're questions will be dealt with during 24 hours.
