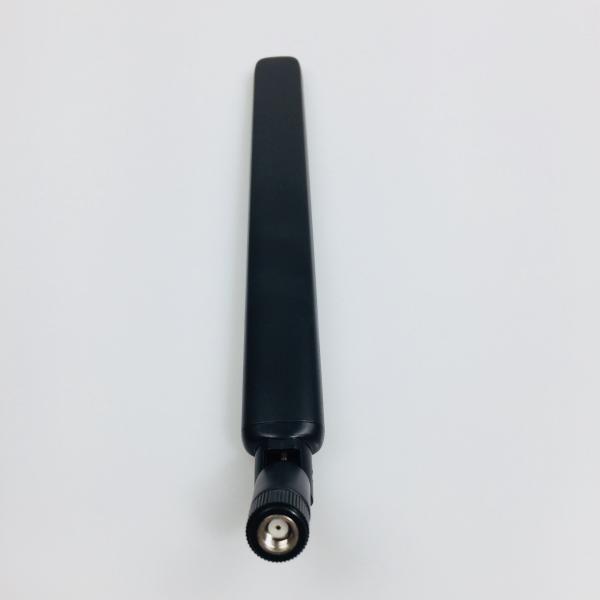

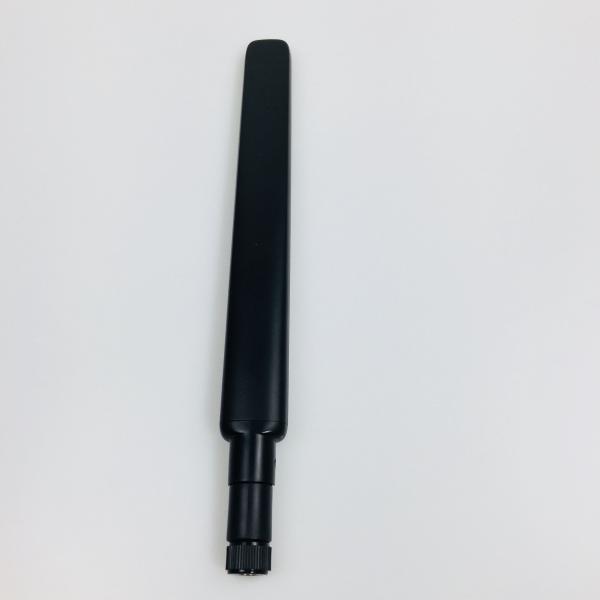

690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
Specifications
Brand Name :
Saintenna
Place of Origin :
Shanghai
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000pcs per day
Delivery Time :
Customized
Packaging Details :
Carton
Product Name :
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain
Frequency Range :
Full Band
Gain :
3dbi,4dbi/customized
Connector :
SMA Connector
Color :
Cutomized
VSWR :
<3
Description

690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain

690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain

Product Description

Item Name 4G LTE FULL Band antenna
Physical Properties
Connect Type SMA-J
Operating Temperature -40~85°
Storage Temperature -40~95°
Electrical Properties
Frequency Range 690~960MHz

1400~2170MHz

2300~2700 MHz
Impedance 50Ω
VSWR <2
Efficiency 67%
Peak Gain 4dbI

690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain

Reliability test report

1 Humidity
The device shall be placed in 90%~95% relative humidity and at 60℃±3℃ for 48h, then place at 25℃±5℃ and less than 65% relative humidity for 2h
It shall fulfill the specification
2 High Temperature
The device shall be placed at 105℃ for 48h, then place at 25℃±5℃ and less than 65% relative humidity for 2h
It shall fulfill the specification
3 Low Temperature
The device shall be placed at ‐40℃ for 48h, then place at 25℃±5℃ and less than 65% relative humidity for 2h
It shall fulfill the specification
4 Temperature Cycle
The device shall be placed at ‐40℃ for 30 min then at 105℃ for 30 min. Cycling shall be repeated 5 times. At the room temperature for 1h
It shall fulfill the specification
5 Salt Spray Test
The device shall be placed in salt spray box (5% NaCl) at 25℃±5℃ for 24h.
It shall fulfill the specification
6 Vibration Test
The device shall be placed to vibration for 2h each in x,y and z axis with the amplitude of 1.5mm, the frequency shall be varied uniformly between the limits of 10Hz~55Hz.
It shall fulfill the
specification
7 Drop Test
The device shall be dropped naturally to cement floor 6 times from the height 1 meter
It shall fulfill the specification
8 Drawing Force Test
The device shall be placed at push/pull tester at the strength of no less than 10N
It shall fulfill the specification
9 Voltage Resistance
1.Insulation spark voltage 1.5KV
2.Sheath spark voltage 1.5KV
3.Insulation resistance to sheath voltage 0.5KV
It shall fulfill the specification
Specification
1.Physical Properties
 Connect Type.................. SMA-J
 Operating Temperature......... -40～85°
 Storage Temperature........... -40～95°
2.Electrical Properties
 Frequency Range................... 690~960MHz
1400~2170MHz
2300~2700 MHz
 Impedance..................... 50Ω
VSWR............................ ＜2
 Efficiency........................ 67%
 Peak Gain......................... 4dbI
690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain

PRODUCT CATEGORY

690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain

Company Information

690Mhz -2700Mhz full band 4G lte antenna with SMA connector high gain

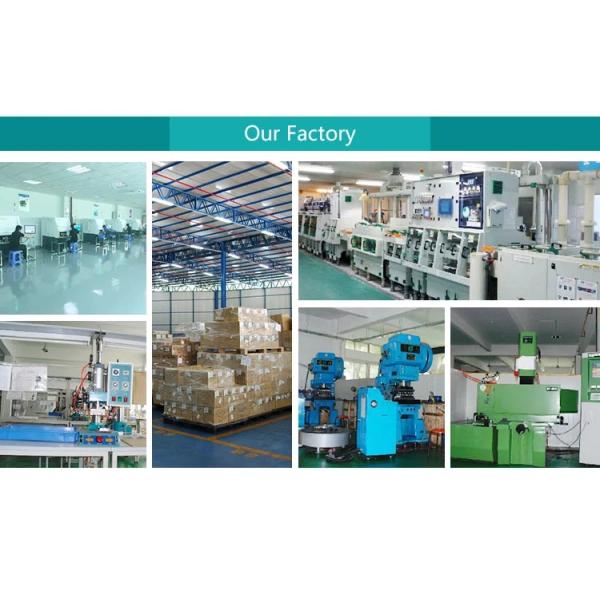

our factory
