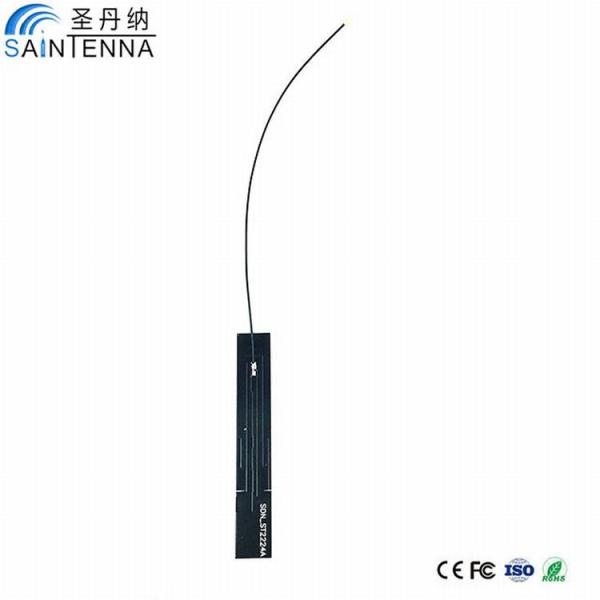

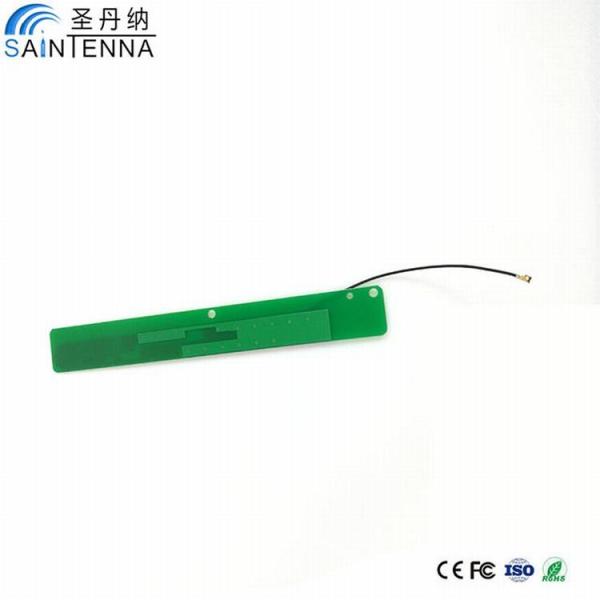

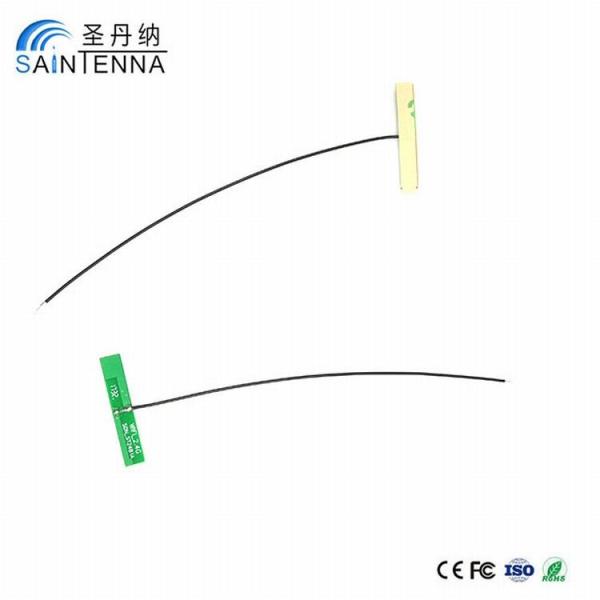

868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Saintenna
Model Number :
pcb wifi receiver antenna
Supply Ability :
10000 Piece/Pieces per Week Professional 868mhz PCB Antenna 5GHz Wireless Long Range Outdoor
Packaging Details :
Carton or customized by customer
MOQ :
Negotiation
Price :
Negotiation
Name :
2.4g wifi antenna
S.W.R :
≤1.5
Gain :
3dBi
Material :
Plastic
Connector Type :
SMA Male/ IPEX 1.13cable (Customizable)
Impedance :
50 Ohm
Part Number :
SAA30993A
Frequency Range :
2.4ghz-2.5ghz
Quality :
Best
Port :
Shanghai, Shenzhen
Description
Product Description

Professional 868mhz PCB Antenna 5GHz Wireless Long Range Outdoor CPE 5dBi Rfid

All the product had passed the ROHS environmental standards.

Specification:

Product Name

2.4GHz wifi receiver antenna/ 5GHz wifi receiver antenna/ 2.4G 5G dual band wifi receiver antenna

Frequency Range

2.4~2.5GHz/ 4.9~5.9GHz/ 2.4~2.5GHz 4.9~5.9GHz dual band

S.W.R

<1.5

Gain

3dBi~5dBi

Connector

SMA M/F, RP SMA, UFL, IPEX

Impedance

50Ohm

Environmental Standard

ROHS, REACH

Reliability test:

Project

Test condition

Result

Storage environment

Temperature, humidity, air pressure test are as follows:

1. Temperature: -30℃~+80℃
2. Humidity: 45%-85%

3. Pressure: 86kpa-106kpa

Normal electrical and mechanical properties

High and low temperature test

The 5 cycle is between 70℃ and 40℃. Then check the appearance quality

Meet the mechanical and electrical properties

Resistance to constant damp heat test

Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H

Meet the mechanical and electrical properties

Vibration test

Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times

Normal electrical and mechanical properties

Drop test

1m height drop

Normal electrical and mechanical properties

Drawing force test

Push pull tester to test the strength of the instrument:≥10N

Normal electrical and mechanical properties

Voltage resistance

1. Insulation spark voltage 1.5KV

2. Sheath spark voltage 1.5KV

3. Insulation resistance to sheath voltage 0.5KV

Normal electrical and mechanical properties

868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID

our factory

868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID

Customers

868mhz 5GHz Wireless Internal PCB Antenna Long Range Outdoor CPE 5dBi RFID
