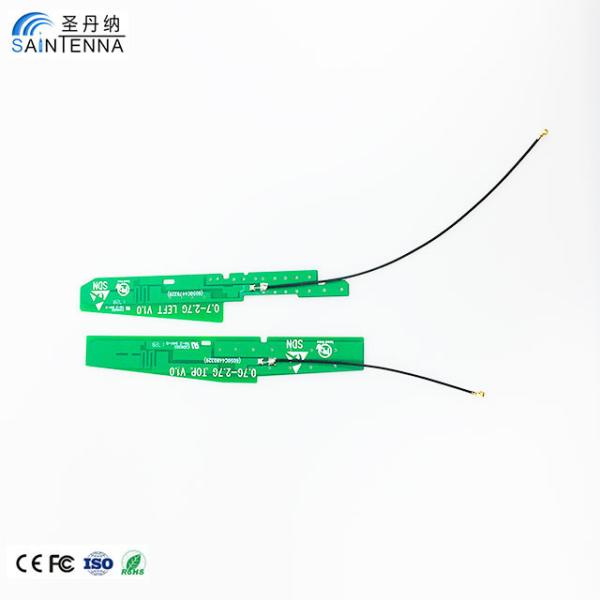

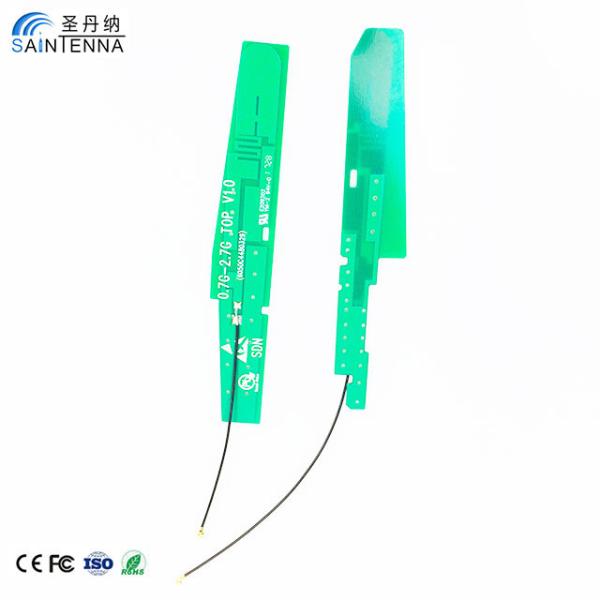

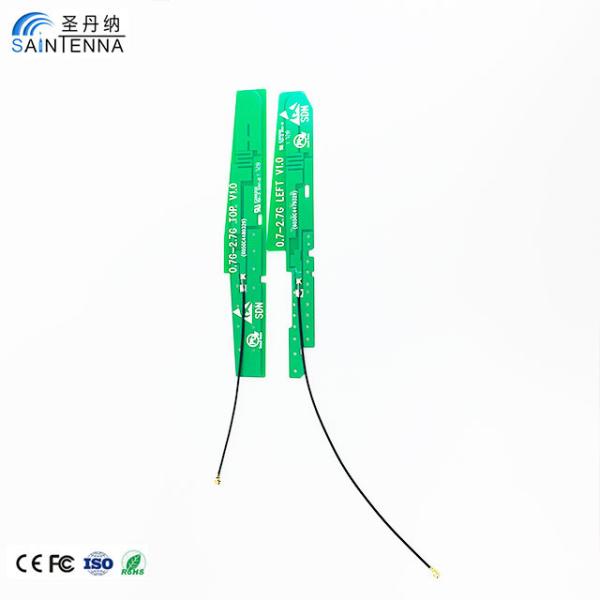

Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Customized Router Internal PCB Antenna SMA Male / IPEX 1.13 Cable Connector
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Saintenna
Supply Ability :
10000 Piece/Pieces per Week Free Sample Customized Router Internal PCB Antenna
Packaging Details :
Carton or customized by customer
MOQ :
Negotiation
Price :
Negotiation
Name :
Free Sample Customized Router Internal PCB Antenna
S.W.R :
≤1.5
Gain :
3dBi
Material :
Plastic
Connector Type :
SMA Male/ IPEX 1.13cable (Customizable)
Impedance :
50 Ohm
Part Number :
SAA30993A
Frequency Range :
0.7Ghz-2.7Ghz/customized
Quality :
Best
Port :
Shanghai, Shenzhen
Description
Product Description

Free Sample Customized Router Internal PCB Antenna

All the specifications bellow were customized by customers, we provide OEM service.

All the product had passed the ROHS environmental standards.

You can tell us the style you want, and we provide custom service

Specification:

Product Name

 Free Sample Customized Router Internal PCB Antenna

Frequency Range

0.7~2.7GHz dual band

S.W.R

<1.5

Gain

3dBi~5dBi

Connector

SMA M/F, RP SMA, UFL, IPEX

Impedance

50Ohm

Environmental Standard

ROHS, REACH

Reliability test:

Project

Test condition

Result

Storage environment

Temperature, humidity, air pressure test are as follows:

1. Temperature: -30℃~+80℃
2. Humidity: 45%-85%

3. Pressure: 86kpa-106kpa

Normal electrical and mechanical properties

High and low temperature test

The 5 cycle is between 70℃ and 40℃. Then check the appearance quality

Meet the mechanical and electrical properties

Resistance to constant damp heat test

Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H

Meet the mechanical and electrical properties

Vibration test

Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times

Normal electrical and mechanical properties

Drop test

1m height drop

Normal electrical and mechanical properties

Drawing force test

Push pull tester to test the strength of the instrument:≥10N

Normal electrical and mechanical properties

Voltage resistance

1. Insulation spark voltage 1.5KV

2. Sheath spark voltage 1.5KV

3. Insulation resistance to sheath voltage 0.5KV

Normal electrical and mechanical properties
