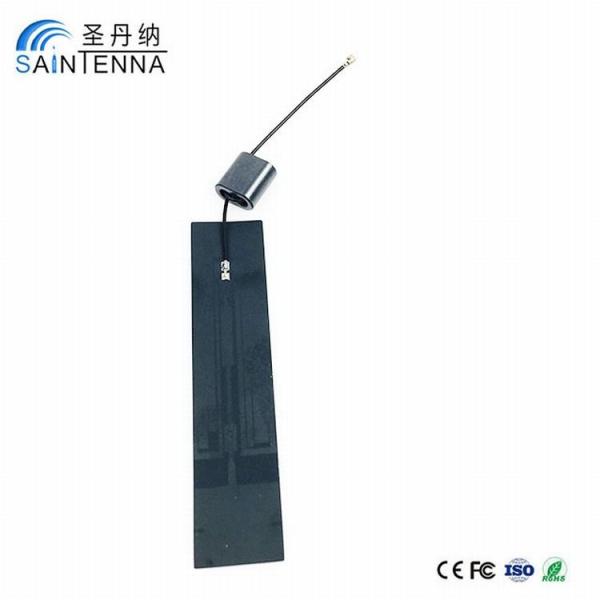

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna
Specifications
Place of Origin :
Shanghai, China, Shanghai, China (Mainland)
Brand Name :
Saintenna
Model Number :
gsm directional antenna
Name :
gsm directional antenna
Connector :
customized
Gain :
4dbi
Frequency Range :
699~960MHz/1710~2700MHz
Color :
Black or white
Material :
Plastic
VSWR :
<3
Impedance :
50 Ohm
Type :
External Plastic Antenna
Supply Ability :
10000 Piece/Pieces per Week gsm directional antenna
Packaging Details :
Carton or customized by customer
Port :
Shanghai, Shenzhen
MOQ :
Negotiation
Price :
Negotiation
Description

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

Product Description

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

Connector

SMA to N-J connector:

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

SMA to N-MMCX connector:

824-960Mhz 1710-2170Mhz Free Sample Sma Connector Signal 3G 4G Gsm directional Antenna

Specification:

Product Name

Internal/ external 4G LTE Antenna

Frequency Range

699~960MHz/1710~2700MHz

S.W.R

<3

Gain

4dbi

Connector

SMA M/F, RP SMA, UFL, IPEX

Impedance

50Ohm

Environmental Standard

ROHS, REACH

Reliability test:

Project

Test condition

Result

Storage environment

Temperature, humidity, air pressure test are as follows:

1.Temperature: -30℃~+80℃
2.Humidity: 45%-85%

3.Pressure: 86kpa-106kpa

Normal electrical and mechanical properties

High and low temperature test

The 5 cycle is between 70℃ and 40℃. Then check the appearance quality

Meet the mechanical and electrical properties

Resistance to constant damp heat test

Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H

Meet the mechanical and electrical properties

Vibration test

Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times

Normal electrical and mechanical properties

Drop test

1m height drop

Normal electrical and mechanical properties

Drawing force test

Push pull tester to test the strength of the instrument:≥10N

Normal electrical and mechanical properties

Voltage resistance

1.Insulation spark voltage 1.5KV

2.Sheath spark voltage 1.5KV

3.Insulation resistance to sheath voltage 0.5KV

Normal electrical and mechanical properties

All the product had passed the ROHS environmental standards.
