25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
Specifications
Brand Name :
Saintenna
Place of Origin :
Shanghai
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/week
Delivery Time :
5-8working days
Packaging Details :
carton
Product :
25*25*4mm Internal GPS GLONASS/GNSS active Ceramic Patch Antenna With Ipex
Connector :
SMA-J/ customized
VSWR :
＜2
Polarization :
circular polarization
Gain（dBi） :
3.55dBi
Color :
White
Description

25*25*4mm Internal GPS GLONASS/GNSS active Ceramic Patch Antenna With Ipex

PRODUCT INFORMATION

Specification


1. Mechanical Specification


 Connect Type...................................... SMA-J
 Work Temperature............................... -40~85℃
 Storage Temperature........................... -40~85℃

Specification of antenna......................... 75×75mm

 Specification of cable............................. RG178×200mm


2. Electrical Specification


 Frequency Range........................................ 914.5～930.5MHz
 VSWR...................................................... <2
 Peak Gain.................................................... 3.55dBi
 Polarization.................................................. circular polarization
 Input Impedance................................... 50Ω

 Max Input Power............................ 10W

RELIABILITY TEST REPORT

No. Item Test Condition Remark
1 Humidity The device shall be placed in 90%~95% relative humidity and
at 60℃±3℃ for 48h, then place at 25℃±5℃ and less than 65%
relative humidity for 2h 		It shall fulfill the
specification
2 High Temperature The device shall be placed at 85℃ for 48h, then place at
25℃±5℃ and less than 65% relative humidity for 2h		 It shall fulfill the
specification
3 Low Temperature The device shall be placed at -40℃ for 48h, then place at
25℃±5℃ and less than 65% relative humidity for 2h		 It shall fulfill the
specification
4 Temperature
Cycle		 The device shall be placed at -40℃ for 30 min then at 85℃ for
30 min. Cycling shall be repeated 5 times. At the room
temperature for 1h 		It shall fulfill the
specification
5 Salt Spray Test The device shall be placed in salt spray box (5% NaCl) at
25℃±5℃ for 24h. 		It shall fulfill the
specification
6 Vibration Test The device shall be subjected to vibration for 2h each in x,y
and z axis with the amplitude of 1.5mm, the frequency shall be
varied uniformly between the limits of 10Hz~55Hz. 		It shall fulfill the
specification
7 IP5X Test The device shall be placed in the dust test machine, dust
blowing mode, at 35℃ for 4 hours, then turn on dust floating
mode, at 45℃ for 4 hours. 		It shall fulfill the
specification
8 IPX6 Test The device shall be placed in spray water in all direction.
Nozzle inner diameter 12.5mm, water flow 100±5L/min, for
3min 		It shall fulfill the
specification

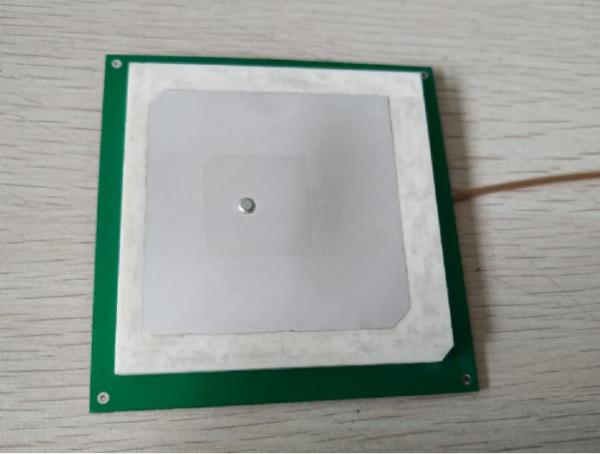

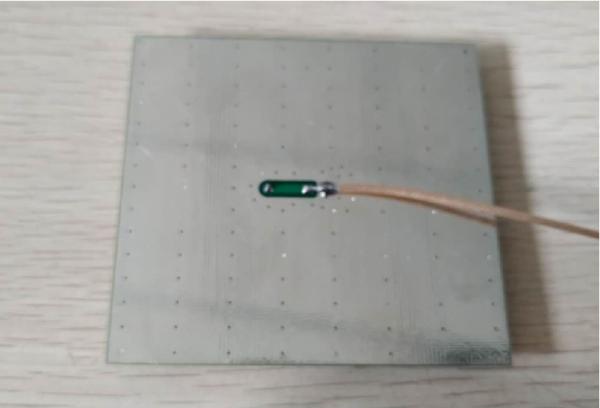

PRODUCT PICTURE

25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna

PRODUCT CATEGORY

Our Main prouct is Wifi antenna, GPS antenna, GNSS antenna, 433mhz antenna, PCB antenna, FPC antenna, 4G lte antenna and so on.

25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna

OUR ADVANTAGES:
1. All the specifications bellow were customized by customers, we provide OEM/ODM service.
2. Samples available
3. Fast delivery, high quality and best price.
4. Saintenna have over 10years experience in antenna design and development.
5. Saintenna have best after-sale service

Shipping&Packaging

1. Payment available: 100% T/T, Western Union, Paypal and so on.

2. Country of origion: Shanghai, China

3. Delivery terms: By sea or air or express( EMS, DHL, UPS, FedEx, TNT and so on)

25*25*4mm Ceramic Patch Antenna With Ipex , Internal GPS GLONASS / GNSS Patch Antenna
