Picosecond Q Switched nd Yag Laser for tattoo pigment removal machine
All colors tattoo removal
A. Epidermal pigment: Body tattoo , eye line and brow tattoo
B. Vessels disease: Varicosity removal, capillary hemangioma
C. Laser facial: Oil control, skin rejuvenation, skin pore improvement
D. Dermal pigment: Nevus of ota, birthmark, coffee spot age pigment, freckle
Advantages

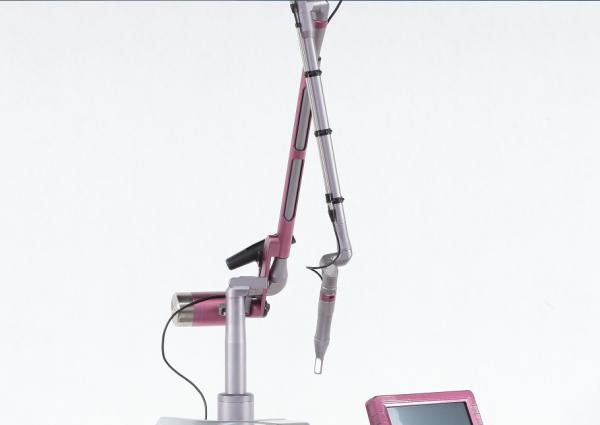

1, South Korea imported 7 joint articulated arm
360 treatment without dead angle and ensure the highest energy output minimum energy loss during laser transmission
2, Variety of Wavelengths and handpieces Available
1064nm:Dermal pigment lesions and dark color tattoo removal
532nm: Epidermal pigment lesions,red, yellow, coffee tattoo removal
585nm:blue and purple tattoo removal
650nm:Green tattoo removal
755nm:Epidermal pigment lesions
Fractional Handpiece: wrinkle removal and skin rejuvenation
3, High peak power
1200mj High single pulse energy means strong ability to crushes the pigment to make it bane of full range of pigmentations
4, Aming beam(635nm)
For targeted and precise treatment
5, High quality laser source
USA imported Q switch and laser bar, Germany Heraeus Xenon lamp, Aluminium laser case
6, Short pulse width (600ps)
Efficient destruction of the target pigment with minimal collateral thermal damage meeting the criteria of selective photothermolysis
7, Flat-top hat Beam
Ensure that the energy is delivered efficiently to maximize effect while minimizing damage to surrounding tissue
8, 2-10mm adjustable spot size.
Energy density is automatically adjusted with spot size
The PicoSecond Laser uses ultra-short pulses (one trillionth of a second in length) to hit the melanin with a great pressure, the melanin shatters into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body. It is a quick and easy non-surgical ,non-invasive laser skin treamtent for the body.
Technical parameter - Q switched Nd Yag Laser
Mode | Zeus |
Laser Type | Q switched ND YAG Laser |
Wavelength | 1064nm/532nm |
Laser transmission | South Korea imported 7 articular optical arm |
Spot size | 4-10mm |
Pulse width and Frequency | Single Pulse: 6ns; 1-10Hz PTP: 12ns; 1-8Hz Long Pulse: 300us; 1-5Hz |
Pulse energy | Single Pulse: 100-800mj/cm2 (1064nm) Single Pulse: 50-400mj/cm2 (532nm) PTP: 100-1064mj/cm2 (1064nm) PTP: 50-800mj/cm2 (532nm) Long Pulse: 100-45000mj/cm2 (1064nm) Long Pulse: 50-25000mj/cm2 (532nm) |
Honeycomb MLA | 4-10mm |
Screen | 10.4" touching type true color LCD display |
Power supply | AC230V±10% 60/50Hz |
Infrared light | 635nm |
Number of handpiece | standard: 1 pc Zoom handpiece; option: 1pc fractional handpiece. |
Cooling system | Closed-off water circulation, Insaide+air cooling |
Dimension of machine | 81*42*84cm |
Dimension of package | machine: 92*47*92cm optical-arm: 110*51*24cm |
Net Weight | 80Kg |
Gross Weight | 100Kg |
Package | aluminum alloy case |
Our service :
FAQ
1. What is the Payment Terms?
Re: T/T, Western Union, Ali Pay, etc.
2. How do you delivery the machine?
Re: Door to door service, DHL, TNT, UPS, FEDEX, air cargo, etc.
3. What about the delivery?
Re: 5-15 working days after payment.
4. What’s your warranty?
Re: 12 months warranty for host machine and whole life maintenance.
5. Do you offer clinical training?
Re: Yes. Welcome to our company for free and professional training.
