10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment
10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment
10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment
10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment
Specifications
Brand Name :
Future
Model Number :
Q switched Nd Yag laser
Certification :
CE, ISO13485, ISO9001
Place of Origin :
Beijing, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
500 units per month
Delivery Time :
3-6 working days
Packaging Details :
Aluminium alloy case
Laser Type :
Q switched Nd: Yag Laser
Style :
Stationary
Wavelength :
1064nm / 532nm
Pulse Energy :
800mj
Pulse width :
850ps
Frequecy :
10Hz
Handpiece :
1 standard, 1 MLA handpiece
Name :
10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment
Description

Q switched Nd yag laser Picosecond pigment treatment skin rejuvenation tattoo removal machine

Multi-functional Q switched Nd yag 1064nm&532nm laser

Theory of treatment


The Q-switched Nd: YAG laser delivers a specific wavelength light with high energy which is absorbed by the pigment as tattoo and result in a shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body. Then these tiny particles will be eliminated by the body. This specific wavelength light can only be absorbed by pigment particles, so it’s no injury to the skin and the normal tissues will occur.

Multi-mode output: single pulse, long pulse, MLA mode
User friendly software means that operator error is drastically reduced.
Easy for understanding and operation.

Picoseconds can be understood as an upgraded version of the traditional Q-switch, mainly dealing with chloasma, freckles, senile plaques and other dermis and epidermis pigmentary diseases, as well as a variety of color tattoos, scars, rough skin and other issues. But why did the name change after Q-switched lasers were upgraded to picosecond lasers? Because this upgrade is not only a little change,but a cross-age significance.

The main difference between picoseconds and Q-switching is the pulse width, an important parameter of the laser. Like the speed of vehicles, the pulse width is very important for lasers. In general, the pulse width of traditional Q-switching can be as low as 4 to 5 nanoseconds, and the picoseconds are exemplified at the most advanced level, can reach 450ps below, convert into nanosecond is below 0.45ns, the short pulse width already exceeds the Q-switched laser many times.

Technical parameter - Q switched Nd Yag Laser

Mode
Zeus
Laser Type
Q switched ND YAG Laser
Wavelength
1064nm/532nm
Laser transmission

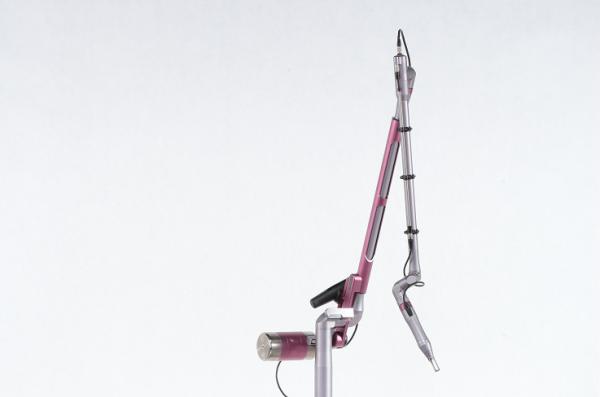

South Korea imported 7 articular optical arm
Spot size
4-10mm
Pulse width and Frequency

Single Pulse: 6ns; 1-10Hz

PTP: 12ns; 1-8Hz
Long Pulse: 300us; 1-5Hz
Pulse energy

Single Pulse: 100-800mj/cm2 (1064nm)

Single Pulse: 50-400mj/cm2 (532nm)
PTP: 100-1064mj/cm2 (1064nm)
PTP: 50-800mj/cm2 (532nm)
Long Pulse: 100-45000mj/cm2 (1064nm)
Long Pulse: 50-25000mj/cm2 (532nm)
Honeycomb MLA
4-10mm
Screen
10.4" touching type true color LCD display
Power supply
AC230V±10% 60/50Hz
Infrared light
635nm
Number of handpiece
standard: 1 pc Zoom handpiece; option: 1pc fractional handpiece.
Cooling system
Closed-off water circulation, Insaide+air cooling
Dimension of machine
81*42*84cm
Dimension of package

machine: 92*47*92cm

optical-arm: 110*51*24cm
Net Weight
80Kg
Gross Weight
100Kg
Package
aluminum alloy case
10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment

Our service :

  • Professional manufacture with 13 years experience, master the most advantage technologies of medical beauty equipment.
  • Professional R & D team, supply OEM & ODM service.your logo, outshape, language, interface can specially be designed on your machine
  • 3 years warranty, lifetime free service and maintenance, if there any problems happens with your machine, we will repair it free of charge
  • Fastest delivery time, we promise arrange delivery within 5 working days.
  • Professional afte-sale service team, supply product trainning and 24 hours online service.

10Hz Frequency Laser Tattoo Removal Machine Q Switched Nd Yag Picosecond Pigment Treatment
