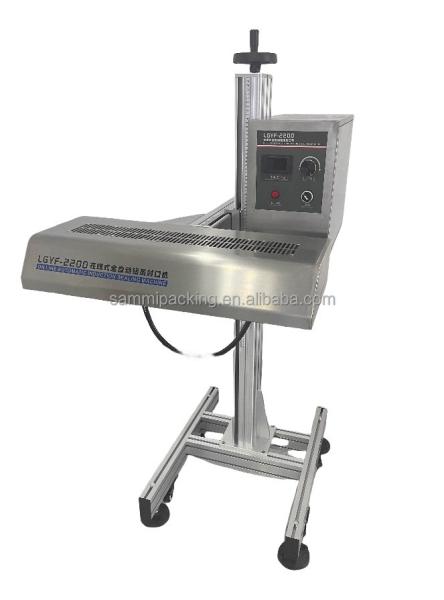

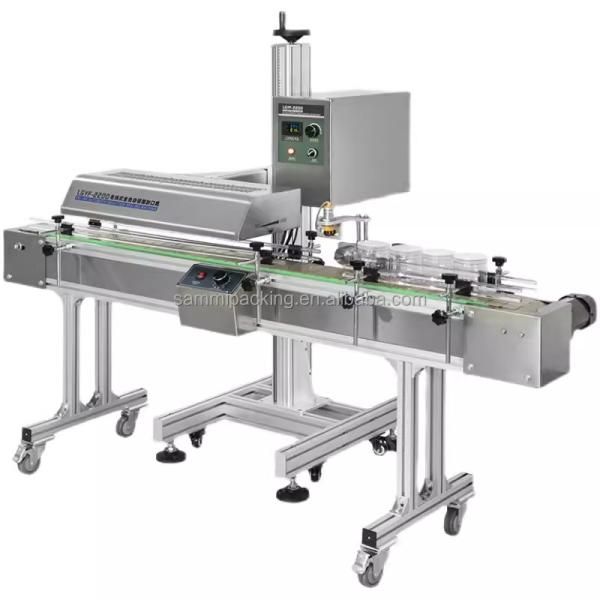

Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil
Specifications
Application :
Food, Beverage, Commodity, Chemical, Other
Packaging Type :
Bottles
Packaging Material :
Wood
Automatic Grade :
Semi-automatic
Driven Type :
Electric
Voltage :
220V, 110V, 220V/50HZ/60HZ, 220V/50hz/60hz
Place of Origin :
Guangdong, China
Brand Name :
SAMMIPACK
Dimension(L*W*H) :
50*40*150CM
Weight :
150 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
PLC, Motor
After-sales Service Provided :
Video technical support, Online support
Model :
LGYS-2200
Sealing diameter :
20-150mm
Bottle height :
20-600mm
Sealing speed :
6-18m/min
work type :
continuous conveying
cooling way :
Air cooling
Material :
stainless steel + aluminum
Power :
4500w
Price :
$1,400.00 - $2,300.00/sets
Description

High quality LGYF-2200 Automatic induction sealing machine

Product description

This series machine use transistor circuit control, and it has the characteristics of low cost, simple operation and easy to use. Mainly used for bottle with threaded plastics, glass bottle of bottle etc. those non-metal induction sealing operation. It’s suitable for large and medium sealing job. Batch continuity, but isn’t suitable for acid. High humidity and dust more harsh environments (such as pesticides. drinks etc.) for a long time. These series machines are suitable for single homework, do not use in line connected.

Application

Suitable for sealing flat round screw cap on glass bottles or plastic bottles. This induction sealing machine is not suitable for metal containers, cover without screw. And the cap dia. is between 20mm-180mm for option. It's suitable for the big production factory.

Specification

Model
LGYF-2200A
LGYF-2200B
Voltage
220V, 50/60Hz
Power
2300W
Sealing Diameter
φ20~φ60MM
φ30~φ150MM

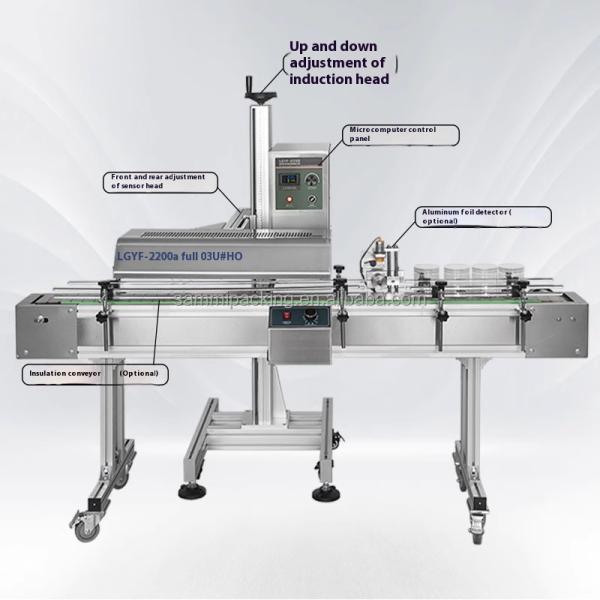

Sensor Head Adjustment Range
Height: 0-800MM ; Front and Rear: 0-260MM
Sealing Speed
5~18M/MIN
Machine Size
750*950*1600MM
Weight
52KG
Conveyor Size
1200MM Length * 200mm Width
Chassis Material
304 stainless steel & aluminum profile
Working Mode
Continuous sealing
Cooling Method
Air cooling
Control Circuit
Transistor digital circuit

Machine display
