high quality factory supply PL single bag filter made in china

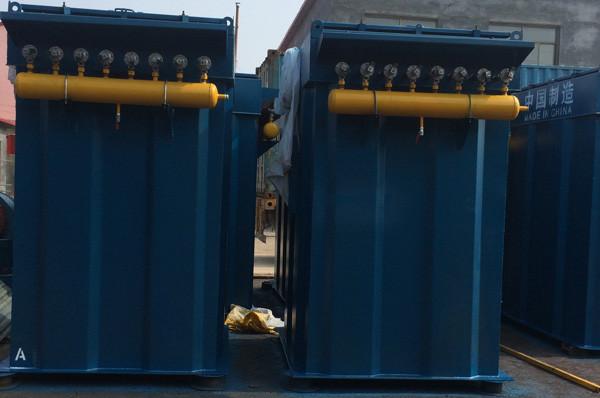

The PL single bag filter is a dust removal unit that is small in size, dexterous in appearance and high in dust removal efficiency. The components of the dust collector are installed in a vertical frame, the steel plate shell, the overall rust-removing and baking paint, the appearance is beautiful, the structure is reasonable, the operation is reliable, and the use is simple and convenient. It is mainly suitable for dust removal applications of low-density non-fibrous dust, and the dust removal efficiency can be as high as 99.9%.

PL single bag filter structure:

1. The fan adopts the centrifugal ventilation fan structure, the air volume is large, the wind pressure is high, and the noise elimination measures are adopted, and the noise is small when used.

2. The filter material of the single-stage dust collector filter bag is made of 208 industrial polyester needle felt. The filter bag structure is flat bag. Each filter bag is equipped with a spring frame. The filter effect is good, the filter bag is convenient to change, and the service life is long.

3. The cleaning mechanism of the dust collector adopts the motor with an eccentric wheel to drive the connecting rod to make the filter bag shake and dust on the outer surface of the dust filter bag. The control of the cleaning mechanism is divided into two types: automatic control and manual control; the automatic control means that the fan works continuously, and the vibrating cleaning can be carried out according to the requirements; after the manual control, that is, the fan is stopped, the cleaning mechanism automatically works, and automatically stops after several tens of seconds.

4. A spacious and sealed access door is installed on the unit's dust collector housing to facilitate changing the filter bag and repairing internal components.

5. The unit dust collector component adopts drawer type structure, which is convenient for operation and cleaning.

6. The side of the single-stage dust collector is equipped with a dust-containing gas inlet, which can be equipped with dust-collecting equipment such as unpacking port, material ash port, sand blasting box, vibrating screen, crusher, bucket elevator and belt conveyor.

PL single bag filter is widely used in industrial and mining enterprises such as cement, mineral powder, mining, metallurgy, building materials, machinery, chemical industry and grain processing.

Why choose ours PL single bag filter?

1. Over 20 years experience in foundry machinery industry.

2. CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.

3. Factory and Competitive Price we offer.

4. Strong Research & Development technical team with more than 36 people of senior professor engineer and senior engineer.

5. Various machinery to meet all your needs at our factory.

6. Prompt and Professional reply regarding our products and service.

7. Hundreds of customers all around the world.
