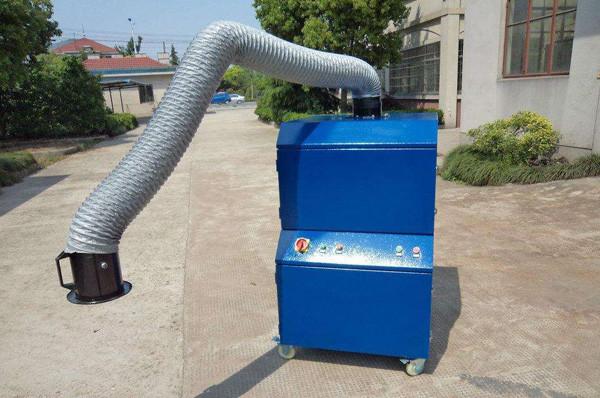

One-arm welding smoke purifier for purification device for welding smoke collection

The one-arm welding fume purifier is a purification device for collecting welding fumes generated in the welding operation. It is a commonly used environmental protection device. The one-arm welding fume purifier, as the name suggests, is a welding fume with a single suction arm installed. Purifiers, of course, can also be equipped with two-armed fume purifiers depending on the needs of the workstation.

Features of the one-arm welding fume purifier:

1. The welding fume purifier consists of a centrifugal fan, a filter cartridge filter chamber, or a static electrode plate type purifier, a dust collecting drawer, a purifier chamber body, a pulse cleaning or manual cleaning, an electric control device, and a flexible suction with a dust cover. Arm composition.

2. The welding fume purifier adopts a filter cartridge filter with large filtering area and low filtration flow rate per unit area, thus having high filtration efficiency.

3. The welding fumes purifier adopts the optimized design and adopts the airflow and uniform flow diversion technology to solve the phenomenon that the airflow in each chamber is difficult to avoid in the general bag filter.

4. The welding fumes purifier has reasonable airflow organization design, small resistance loss, compact machine shape, flexible movement, simple operation and convenient maintenance.

5. The filter cartridge adopts imported filter material, and the filtration efficiency reaches 99.5%. The service life of the filter cartridge is much longer than the normal filter material under normal use conditions.

6. Use a uniform wind deflector in front of the filter cartridge to greatly extend the life of the filter cartridge.

7. The suction arm of the welding smoke purifier can be rotated 360 degrees and can move up, down and left and right.

8. There are four wheels on the bottom of the welding smoke purifier, which is light and portable, and is suitable for the field where the working point often changes the dust.

The working principle of the one-arm welding fume purifier is that the negative pressure generated by the soot by the welding fumes purifier is sucked into the soot by the suction hood, and enters the cavity through the flexible suction arm, and the flow velocity becomes slow, so that the dust of the large particle diameter falls down, and the fineness is fine. The dust airflow enters the purification chamber, and the filter separation of the dust is completed by the separation of the filter cartridge in the purification chamber, and the smoke is blocked by the filter element on the surface thereof, and the purified air is discharged through the fan, and the blocked soot is continuously deposited on the surface of the filter element. When the pulse cleaning system is turned on regularly, the manual cleaning device needs to take out the filter cartridge and manually clean it.
