automatic foundry resin precoated sand clay sand processing production line

Introduction
The features of the equipment are advanced technology, reliable performance, rational structure, flexible layout, simple application and maintenance. The PLC control system is applied to realize mechatronics integration system. At present, there are 16 series, more than 80 kinds of production for the regeneration production line.

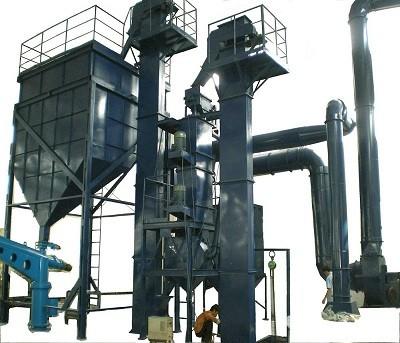

Clay sand processing production line
Vibration conveyor, cast hanging conveyor, belt conveyor, magnetic separation machine, winding machine, hexagonal mesh, sand library, two-way cooling bed, hoisting machine, belt machine, boiling reclaimer, belt conveyor, hoist, discharger, belt machine, sand library, the disc feeder, belt conveyor, hoist, belt conveyor, exhaust ventilator, accessories, two-way feeder, screw feeder, accessories electronic scale sand mixing machine, belt machine, the disc feeder.

7. Rotor type sand mixer technique parameter

8. Inertia vibrating conveyor
This series of products applicable to the block, granular materials delivery, often in casting workshop for new coke, limestone, sand, sand transport.It has compact structure, light weight, stable working, low noise, reliable use, etc.

This series of inertial vibrating conveyor with vibration motor, vibrator two type products, type "B", products to vibration motor.This machine hanging type, a type two installation type.

9. Dust collector
Dust the overall design philosophy for the effective removal of powder sand, clean operating environment, the effective protection of dust emissions.

10. Electric control system
PLC control, PLC of Mitsubishi or Omron products. The rest of the main electric components are domestic famous or joint venture products, generally uses Chint or Delixi product, all can be linked, each subsystem can be linked, single machine can be manually.

All control cabinets, consoles and several control link button box, control cabinet for the centralized control, in indoor, console can be realized across all actions, button box for on-site maintenance and debugging. Several parts are unified and scattered, bring great convenience for operation, debugging.
