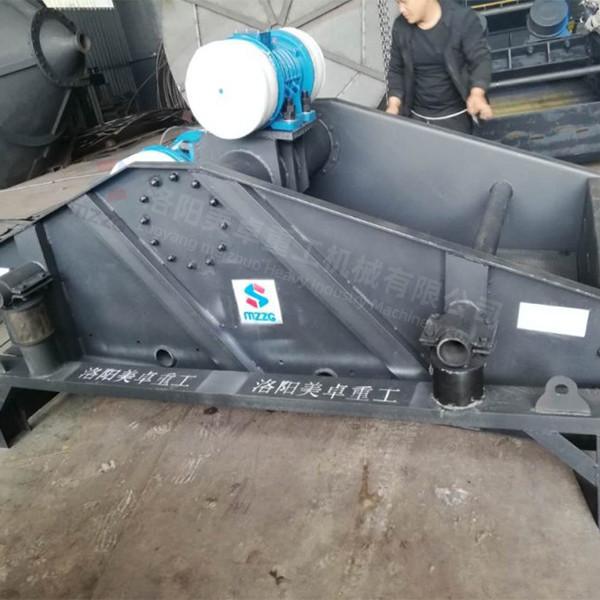

Polyurethane Sand Dewatering Screen , Gravel Screen TS Series Easy Maintenance

Application
TS dewatering screen is mainly used in mining, construction for coarse or fine sand dehydrate processing. With the advantages of simple structure and easy maintenance, it becomes a hot sell in our market.

Spare parts

Working principle
Adopts double motor self-synchronous technology, universal eccentric block, adjustable amplitude vibrator. The utility model is mainly composed of a screen box, a vibration exciter, a supporting system and a motor. The two unconnected vibrators operate synchronously and reversely, the centrifugal force produced by two groups of eccentric masses is superimposed along the direction of vibration, and the reverse centrifugal force is counteracted, thus forming a single vibration along the direction of vibration, so that the screen box moves back and forth in the linear motion.

Structure

Tech specification

Performance advantages

• 1. The material of the dewatering screen is made of high-molecular-weight polyurethane, which is resistant to impact, low temperature, abrasion, and chemical corrosion.
• 2. The vibration motor of the dewatering screen is easy to replace. The base rubber spring is used to dampen the vibration, so that the amplitude is small, and the slow vibration can be taken off cleanly.
• 3. The dewatering screen can be customized according to the output and water content. The side plate of the fuselage has a reinforcing plate, with a support at the bottom, a horizontal bar at the bottom, and a triangular steel plate support at the discharge port.
• 4. The vibration motor is fixed with high-strength bolts, and the bottom spring is a rubber spring. The sieve plate has a high fixed density, and ribs are punched in the sieve plate.
• 5. After welding, the welder will strictly require no welding holes, and the bottom is supported by channel steel.
• 6. The sieve holes can be adjusted according to needs. The equipment has low noise and good dehydration effect.
• 7. Before delivery, the staff will debug it, whether the vibration motor is normal, and whether the exciter is running well to ensure that the quality of the factory product is guaranteed for the customer.
