Customized Ore Washing Plant , Sand Washer Machine Classifier Long Service Life
Customized Ore Washing Plant , Sand Washer Machine Classifier Long Service Life
Specifications
Place of Origin :
Henan, China
Brand Name :
MZZG
Supply Ability :
10 set 15 set per month
Packaging Details :
Depond on product
MOQ :
1 set
Price :
Negotiation
Delivery Time :
35 work days
Payment Terms :
L/C, T/T
Model Number :
2LSX920
Usage :
Natural Sand
Warranty :
1 Year
Applicable Industries :
Energy & Mining
Spiral diameter :
920 mm
Feed size :
10mm
Operation :
Connevient
Market :
World-wide
Quality :
International Standard
Description

Customized Ore Washing Plant , Sand Washer Machine Classifier Long Service Life

Product Description:

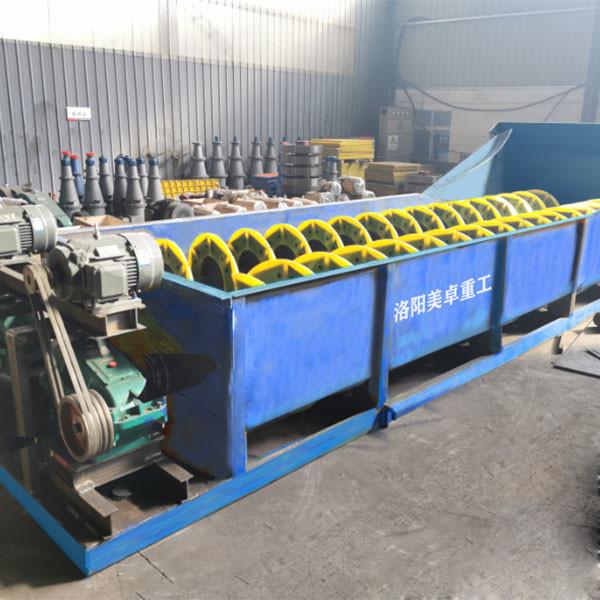

Double spiral sand washing machine is a kind of sand washing equipment, mainly by the tub, gearbox, motor, central shaft, screw blade, support composition, reasonable structure. It is widely used for washing, grading, cleaning, and fine and coarse grained materials washing in highway, hydropower and construction industries, especially for building and road construction sand and gravel.

Customized Ore Washing Plant , Sand Washer Machine Classifier Long Service Life

Working principle:

When the machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.

Customized Ore Washing Plant , Sand Washer Machine Classifier Long Service Life

Structure:

Customized Ore Washing Plant , Sand Washer Machine Classifier Long Service Life

Features:

  1. The washed material has less loss and high washing efficiency, which can fully meet the requirements of high-grade materials.
  2. Simple structure and stable operation.
  3. Separate the bearing from water and materials to avoid premature damage caused by pollution and rust.
  4. Suitable for a variety of work environments.
  5. Relatively long service life, almost no vulnerable parts, so can greatly reduce the cost.

Tech specification:

Model

Diameter of screw

(mm)

Screw shaft

length(mm)

Power

(kw)

 Spiral mandrel mize(mm) Spiral weir plate height(mm) Spiral blade size (mm)

Capacity

(t/h)

Weight

(t)

Dimension

(mm)

(L×W×H)
2LSX920 920*2 6800 11*2 ∅273×20 1418 ∅800×∅273×10 150-200 9.125 8700*2100*3500
2LSX1120 1120*2 6800 15*2 ∅325×20 1618 ∅1040×∅325×10 200-250 12 9380*2400*3800
