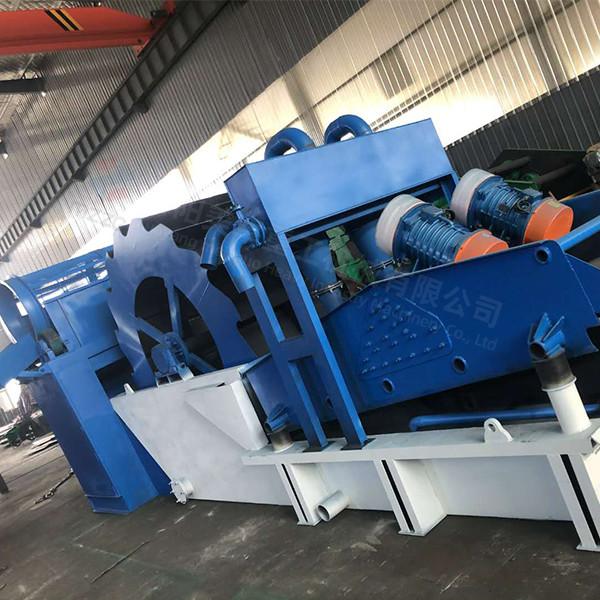

20-200 Tph Capacity Wheel Sand Washing Machine Low Water Content With Rotary Screen
20-200 Tph Capacity Wheel Sand Washing Machine Low Water Content With Rotary Screen
Specifications
Brand Name :
MZZG
Model Number :
SX26-10-55
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 set 15 set per month
Delivery Time :
35 work days
Packaging Details :
Depond on product
Application :
Quarry/Mining/Construction
Function :
Screening, Washing, dewatering, recycling
Product name :
20-200 Tph Capacity Wheel Sand Washing Machine Low Water Content With Rotary Screen
Motor Type :
AC Motor
Feed size :
≤15mm
Capacity :
20-60t/h
Description

20-200 Tph Capacity Wheel Sand Washing Machine Low Water Content With Rotary Screen

Structure

20-200 Tph Capacity Wheel Sand Washing Machine Low Water Content With Rotary Screen

Working principle

Sand and water from the feed tank into the sink, with the impeller rolling, and grinding each other. The impurities covering the sand are washing away. By adding more water at the same time, the strong current will carry away the waste in the sink and some low-weight waste. The clean sand and stones are picked up by the leaves. As it slowly rises, the water begins to fall through the screen and back into the sink. On the one hand, remove water from sand and stones; On the other hand, water can be made full use of. Finally, sand and stones enter the washing tank outside from the rotating impeller to complete the washing task.

20-200 Tph Capacity Wheel Sand Washing Machine Low Water Content With Rotary Screen

Introduction

The screen washing machine is based on the screen sand machine, washing sand machine and fine sand recovery machine and design, the use of cutting-edge technology. The machine has simple structure and various functions. It is widely used for cleaning, screening, recycling and dewatering of sand crushing, river sand, mountain sand, lake sand, as well as mining, aggregate processing, pile driving mud, river dredging treatment, urban construction waste incineration treatment, ceramic raw material processing, silica sand production and processing, various metal ore tailings treatment and many other industries.

Features

  • Higher sand quality, lower water content.
  • Recover 0.16-3mm fine sand and reduce mud content.
  • Compact structure, easy installation.
  • High productivity and 95% of fine particles in raw materials can be recycled.
  • Solve the problem of sedimentation tank cleaning, while improving economic performance.

Tech specifications

Model

Impeller

size

(mm)

Rotary

screen size

(mm)

Screen

plate size

(mm)

Capacity

(t/h)

Feed size

(mm)

Cyclone

model

Water

consumption

(m3/h)

Power

(Kw)

Weight

(kg)

Dimension

(mm)

SX26-10-55

2600

1000

1200*2400

20-60

≤40

250*2

90-150

35.5

7700

7345*5255*2980

SX30-12-65

3000

1200

1500*3000

50-120

≤40

300*2

100-160

52.5

10900

7705*5800*3070

SX36-15-75

3600

1500

1800*4500

120-150

≤40

350*2

150-200

67.5

18500

5800*6500*3662

SX36-15-75

3600

1500

2400*4500

150-180

≤40

350*4

150-300

90

20000

6500*6500*3662
