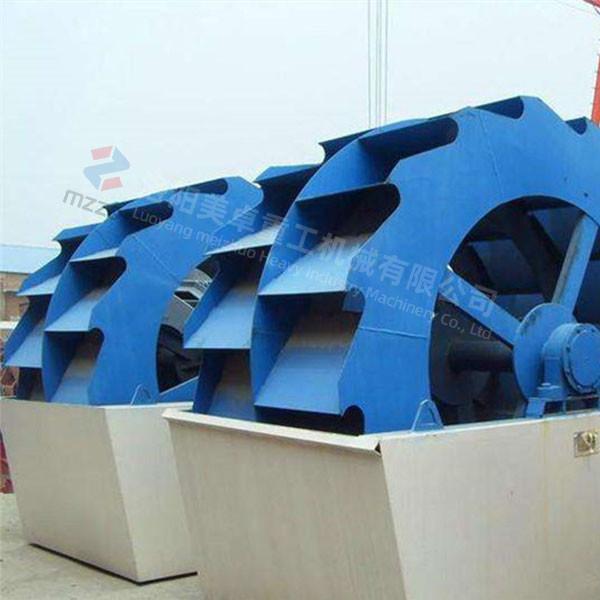

Aggregate Bucket Sand Washer Normal Motor High Performance Long Lifespan
Aggregate Bucket Sand Washer Normal Motor High Performance Long Lifespan
Specifications
Place of Origin :
Henan, China
Brand Name :
MZZG
Supply Ability :
10 set 15 set per month
Packaging Details :
Depond on product
MOQ :
1 set
Price :
Negotiation
Delivery Time :
35 work days
Payment Terms :
L/C, T/T
Model Number :
XSD2610
Warranty :
12 months
Usage :
Natural Sand
Feeding size :
0-10mm
Motor Type :
Normal motor
Dimension(L*W*H)(mm) :
3255*1982*2690
Keyword :
Bucket sand washer
Spare parts supply :
Long Term
After Sale Service :
Provided
Description

Bucket Sand Washer from aggregate sand and gravel washing line

Application
Bucket sand washer is a kind of wheel washing equipment, and can clean and separate the dust and powder from the sand. Sand washing machine are mainly used in building site, gravel plant, concrete dam building site of hydro power station, etc..

Aggregate Bucket Sand Washer Normal Motor High Performance Long Lifespan

Tech specification

Model Wheel Size (mm) Max feed size (mm)

Power

(KW)

 Weight (t) Capacity (t/h) Overall dimension (mm)
XSD2610 Φ2600×1000 10 5.5/7.5 2.6 20-50 3255×1982×2690
XSD2816 Φ2800×1600 10 11/15 4.2 30-60 3540×3000×2880
XSD3016 Φ3000×1600 10 15/20 5.5 50-100 3845×3000×3080
XSD3220 Φ3000×2000 10 15/20 8.3 60-150 4150×3500×3300
XSD3620 Φ3000×2000 10 15/20 9.8 80-150 4500×3500×3700

Working Princle

  • When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear.
  • The sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, it breaks the water vapour which favors dewatering;
  • At the same time, the strong water flow takes the impurities away, and discharged from the overfall.
  • The clean sand is taken away by the impellers, when rising, the water drops down to the wash trough from the nets, this can both dewater the sand and save water.
  • Finally, the sand is poured into the discharge chute and finished cleaning.

Structure

Aggregate Bucket Sand Washer Normal Motor High Performance Long Lifespan
