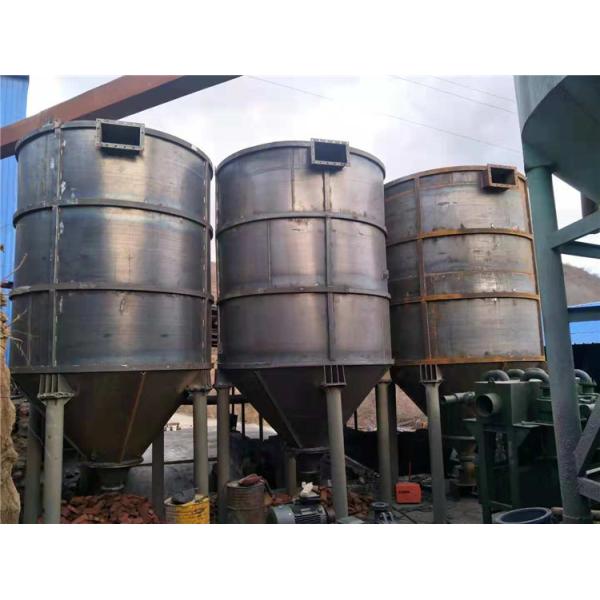

Mineral Concentrator Deep Cone Thickener 100-120 M³/H Capacity Solid Liquid Separation
Mineral Concentrator Deep Cone Thickener 100-120 M³/H Capacity Solid Liquid Separation
Specifications
Brand Name :
MZZG
Model Number :
WS-3600
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 set 15 set per month
Delivery Time :
35 work days
Packaging Details :
Depond on product
Name :
Deep cone thickener
Function :
Solid-liquid Separation
Advantages :
Change slurry water into clean
Installation :
Technical Guidance
Manufacture standard :
Industrial Standard
Capacity(m³/h) :
100-120
Sediment Area (m2) :
2.55
Power :
20kw
Description

Mineral Concentrator Deep Cone Thickener 100-120 M³/H Capacity Solid Liquid Separation

Introduction

Deep cone thickener mainly used for slurry water during sand or tailings washing process, changed slurry water into clean water flowing out and supplementary sand washing water.The process capacity is about 30-200m³/h, we often use chamber of belt filter press after this thickener, to turn slurry into mud cake discharge directly, within 25%-35% water content, to reduce the pollution for environment. In essence, the thickener belongs to a new type of mud-water separation sedimentation tank, special internal structure together with different kinds of flocculant for sediment makes it widely used.

Mineral Concentrator Deep Cone Thickener 100-120 M³/H Capacity Solid Liquid Separation

What is the function of this Deep cone thickener?

The deep cone thickener completely replaces the traditional sedimentation tank through the interaction of the internal mechanism of the tank and the flocculant. The sewage washed into sand is clean and can be recycled for sand washing and water reduction. The occupation of resources and land meets the requirements of environmental protection and sustainable development.

Tech specification

Model

Feed

concentration
(%)

Weight
(kg)

Tank diameter
(mm)

Process
capacity(m³/h)

Dimension
L*W*H
(mm)

WS-3600

≤20

6000

Φ3000

100-120

3000*3000*6500

WS-6700

≤20

13500

Φ6000

200-250

6000*6000*7500

WS-8700

≤20

33000

Φ8000

250-350

8000*8000*7500

Application

Now the deep cone thickener widely applied to dewatering to various metal and non-metal ores and the slurry solid-liquid separation in sectors like metallurgy, coals, chemicals, mine tailings and environment protection.

Structure

Mineral Concentrator Deep Cone Thickener 100-120 M³/H Capacity Solid Liquid Separation
