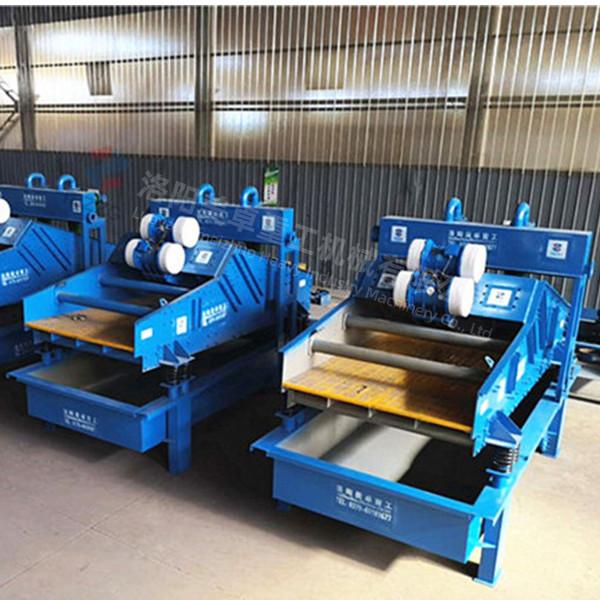

4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance
4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance
Specifications
Place of Origin :
Henan, China
Brand Name :
MZZG
Supply Ability :
10 set 15 set per month
Packaging Details :
Depond on product
MOQ :
1 set
Price :
Negotiation
Delivery Time :
35 work days
Payment Terms :
L/C, T/T
Name :
4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance
Feeding size :
0-3mm
Motor Type :
AC Motor
Water Consumption (m³/h) :
150-240
Dimension(L*W*H) :
4744*2500*3200
Processed materials :
Quartz Etc
Operation :
Safe
Port :
qingdao /shanghai
Description

4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance

Product introduction

We improve our core technology, successfully produce this vertical sand recycling machine to connect bucket wheel washer directly, and make a complete sand washing system. On the basis of the original dewatering screen, cyclone installed vertical to the screen surface. According to the principle of fluid mechanics, the recovery rate is higher than ordinary type, and the solid content will controlled to lower levels from overflow waste water, to achieve higher effect of sand recycling work. Widely used in mud purification, artificial sand production line, hydro power station and sand aggregate system, glass raw material processing system and coarse slime recovery, and fine material recovery.

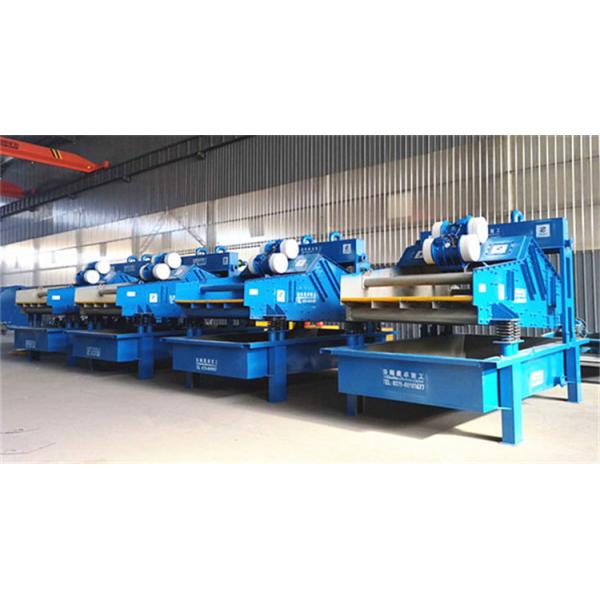

4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance

Structure

4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance

Working principle


The finished material of the sand washing machine directly enters the dewatering screen for dehydration. The mud water discharged from the sand washing machine enters the equipment cleaning tank, and is pumped to the high pressure separator through the bottom vacuum high pressure pump for classification and concentration. The sand mouth enters the dehydration, and other waste water, mud, powder, impurities, etc. are discharged into the return water tank through the overflow port of the high pressure separator.

Tech specification

Model

Water Consumption

(m³/h)

Screen size W*L

(mm)

Cyclone Model

/NO.(mm)

Power

(Kw)

Weight

(kg)

Dimension

L*W*H(mm)
MZ09-25 30-60 900*1800 250 12.5 1400 2000*1300*2900
MZ12-30 50-120 1200*2400 300 19.5 2044 2515*1580*2930
MZ15-65 80-160 1500*3000 300/2 36 3000 3327*1880*3200
MZ18-100 150-240 1800*4500 250/4 52 7164 4744*2500*3200
MZ24-120 200-300 2400*4500 300/4 75 8200 4744*3200*3200
MZ24-180 300-400 2400*4500 300/6 89 8800 4744*3200*3200

Spare parts

4 Cyclones Recycling Equipment 95% Fine Sand Recovery Rate High Performance
