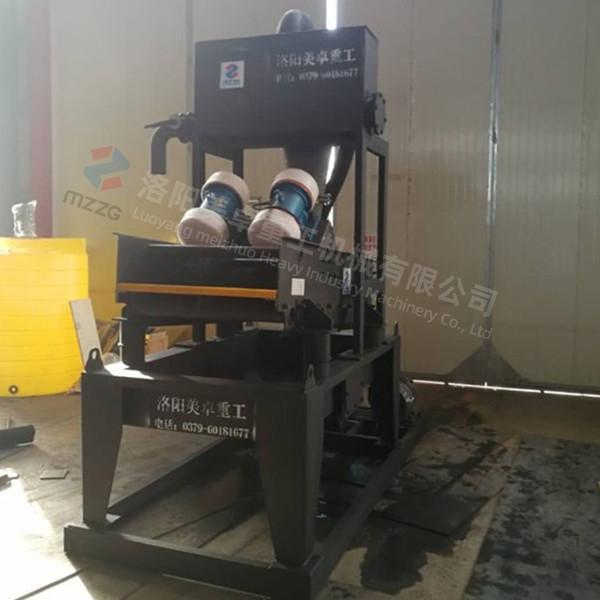

0-3mm Fine Sand Recycling Machine MZ100 20kw For Extracting Solid Sand

Introduction

Sand recycling machine is a device for extracting solid sand from slurry material, also called fine sand extractor. The machine is mainly used for the recovery and dewatering fine sand in the waste water discharged by the the wheel sand washing machine or the spiral sand washing machine. On the one hand, the fine sand extracted to obtain a better grade sand output mixed coarse and fine, on the other hand, it can solve the serious accumulation of sedimentation tank after washing sand.

Structure

Working principle

The overflow mouth before washing sand machine, aggregate recycling machines into the mouth, recycling machine aggregate the bottom and the slurry pump connection, slurry pump, pumping slurry into the hydrocyclone and rated filling pressure, through high-speed centrifugal force cyclone separating the sand in the pulp, at the same time after the sand concentration up to 60-70% through heavy spit into linear vibrating sieve dehydration screen surface, under the action of vibration sieve machine, the moisture in the sand removal. Fine sand in the sieve machine screen surface do linear jump movement, discharge from the outlet conveyor belt, so as to achieve the purpose of fine sand in the pulp recovery, dehydration, dry discharge.

Tech specifications

Main Features

1. The feed box distributed, to prevent material accumulation, ensure the effective dewater area of the material

2. Cyclone shell carbon steel, polyurethane liner, hardness 95, separation particle size 50-200um

3. The cyclone bracket prevents swinging irregularly, ensuring the recovery efficiency

4. High-efficiency wear-resistant slurry pump: single suction, impeller chrome material, wear-resistant

Spare parts
