Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance
Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance
Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance
Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance
Specifications
Place of Origin :
Henan, China
Brand Name :
MZZG
Supply Ability :
10 set 15 set per month
Packaging Details :
Depond on product
MOQ :
1 set
Price :
Negotiation
Delivery Time :
35 work days
Payment Terms :
L/C, T/T
Model Number :
ZSD2445
Warranty :
1 Year
After-sales Service Provided :
Free Spare Parts, Video technical support, Field installation, commissioning and training
Function :
Screening\separation\sieving
Layer(s) :
Single Layer
Capacity :
200-250t/h
Motor :
ZJK
Color :
Customers' Request
Port :
qingdao /shanghai
Description

Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance

Product Description

Working principle

This machine uses vibration motors with exactly the same performance parameters as the excitation source. When two vibration motors run at the same angular speed in the opposite direction, the inertial force generated by their eccentric blocks is repeatedly superimposed or cancelled at a fixed phase, resulting in huge The exciting force drives the screen box to make periodic reciprocating motion along the linear trajectory, so that the incoming material on the screen will gradually jump from the feed to the output. During the beating process, the part (water) smaller than the screen hole will fall through the screen hole. The remaining part is discharged by the discharge to achieve the purpose of screening and dehydration.

Structure

Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance

Introduction

In terms of productivity, the dehydrated screen has the capacity more than 150 t/h. About configuration, the dehydrated screen is driven by the exciter, ordinary motor installed outside the screen frame to provide power, more exciting and more stable.
For work timeliness, dehydrated screen suitable for 24 hours of non-stop work. In addition, dehydrated screen set 45 degrees at the feeding plate, also add polyurethane, to pre-dewater the material and let material travel on screen surface for long distance, effectively increasing actual dewatering area, and get the lower water content of final output material.

Tech specifications

Model

Power

(Kw)

Capacity

(t/h)

Feed size

(mm)

Screen

size W*L

(mm)

Screen

area

(m²)

Screen

Material

Weight

(kg)

Dimension

L*W*H

(mm)
ZSD1842 2*5.5 100-150 ≤10 1800*4200 7.56 PU 4130 4315*2449*1976
ZSD1845 2*5.5 120-170 ≤10 1800*4500 8.1 PU 4500 4620*3065*2008
ZSD2442 2*11 170-200 ≤10 2400*4200 10.1 PU 5060 4315*3085*2042
ZSD2445 2*11 200-250 ≤10 2400*4500 10.8 PU 5100 4621*2006*3702
ZSD3048 2*15 250-300 ≤10 3000*4800 14.4 PU 7550 4959*4514*2218

Features

1. Vibrator drive, high efficiency, high capacity
2. Can achieve 24-hour non-stop operation,strong stability of the whole machine
3. Polyurethane screen, acid resistance, corrosion resistance, good wear resistance
4. Customized for bolt riveting or rail base type pinch installation

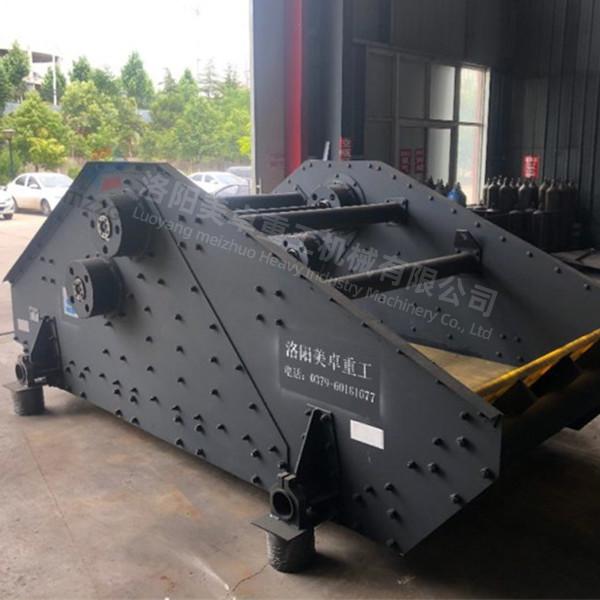

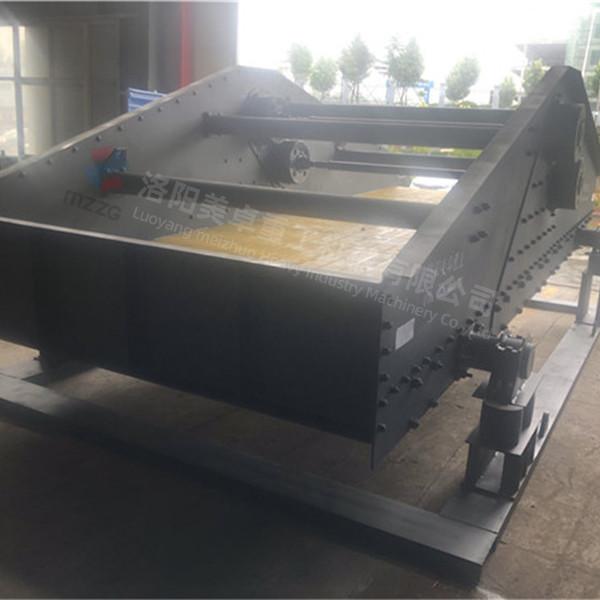

Products Show
Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable PerformanceLinear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance
