Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material
Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material
Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material
Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material
Specifications
Place of Origin :
Henan, China
Brand Name :
MZZG
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Depond on product
Delivery Time :
35 work days
Payment Terms :
L/C, T/T
Supply Ability :
10 set 15 set per month
Product name :
Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material
Applicable Industries :
Energy & Mining
Warranty :
12 months
Type :
Linear
Model :
TS1845
Power(kw) :
4*2
Capacity :
100-180TPH
Dimension(L*W*H) :
411.6*238.1*190cm
Description

Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material

Product Description

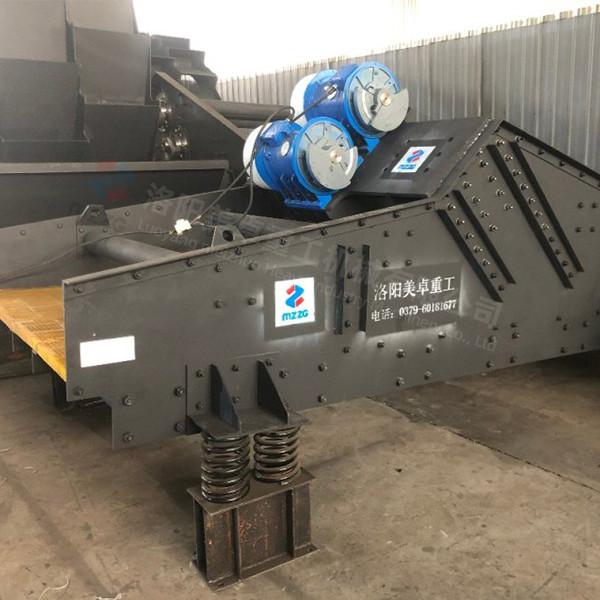

The linear dewatering screen is a linear vibrating screen with a straight motion trajectory. It has the advantages of advanced structure, sturdy and durable, low noise, and convenient maintenance. It is suitable for coal preparation, ore dressing, electric power, chemical industry, light industry and other departments to perform dry and wet sieving or dewatering, desizing and desliming of medium and fine-grained materials.

Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material

Working principle
Dewater vibrating screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal force is generated by the eccentric blocks superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand will be dehydrated and filtered.

Structure

Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material

Tech specification

Model

Power

(Kw)

Capacity

(t/h)

Feed size

(mm)

Screen size

W*L

(mm)

Screen area

(m²)

Screen

Material

Weight

(kg)

Dimension

L*W*H

(mm)
TS0918 0.75*2 10-30 ≤10 900*1800 1.6 PU 535 1885*1307*1133
TS1224 2.2*2 40-60 ≤10 1200*2400 2.88 PU 1080 2515*1607*1399
TS1530 3*2 80-100 ≤10 1500*3000 4.5 PU 1550 3083*1907*1484
TS1840 4*2 100-140 ≤10 1800*4000 7.2 PU 3100 4116*2381*1900
TS1842 4*2 100-150 ≤10 1800*4200 7.56 PU 3200 4316*2381*1976
TS1845 4*2 100-180 ≤10 1800*4500 8.1 PU 3400 4900*2380*2050
TS2445 7.5*2 180-200 ≤10 2400*4500 10.8 PU 4651 4616*3085*2248

Customers Site

Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material

Performance advantages
1. The material of the dewatering screen is made of high-molecular-weight polyurethane, which is resistant to impact, low temperature, abrasion, and chemical corrosion.
2. The vibration motor of the dewatering screen is easy to replace. The base rubber spring is used to dampen the vibration, so that the amplitude is small, and the slow vibration can be taken off cleanly.
3. The dewatering screen can be customized according to the output and water content. The side plate of the fuselage has a reinforcing plate, with a support at the bottom, a horizontal bar at the bottom, and a triangular steel plate support at the discharge port.
4. The vibration motor is fixed with high-strength bolts, and the bottom spring is a rubber spring. The sieve plate has a high fixed density, and ribs are punched in the sieve plate.
5. After welding, the welder will strictly require no welding holes, and the bottom is supported by channel steel.
6. The sieve holes can be adjusted according to needs. The equipment has low noise and good dehydration effect.
7. Before delivery, the staff will debug it, whether the vibration motor is normal, and whether the exciter is running well to ensure that the quality of the factory product is guaranteed for the customer.

Spare parts

Polyurethane Screen Plate Sand Dewatering Screen Acid Resistance For Wet Minerals Material
