Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection
Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection
Specifications
Brand Name :
MZZG
Model Number :
WS-6700
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 set 15 set per month
Delivery Time :
35 work days
Packaging Details :
Depond on product
Manufacture standard :
Industrial Standard
Type :
Mining Thickener
Keyword :
Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection
Motor Type :
Normal
Weight (kg) :
13500
Advantages :
Change slurry water into clean
Selling Units :
Single item
After-sales Service Provided :
Video technical support, Online support, Free Spare Parts
Description

Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection

Details Show

Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection

Working principle
The waste water from the processing material enters the central feeding barrel through the material channel, and passes through a series of effects such as slow flow and flocculation, so that the thickened underflow mud is discharged from the discharge port at the bottom of the tank and enters the filter press equipment, and presses into mud cake . The upper part of the tank produces clean water (overflow clarified liquid) with high cleanliness, which is discharged from the water outlet at the top. The clean water can be recycled to achieve zero discharge of production wastewater.

Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection

What is the function of this Deep cone thickener?

The deep cone thickener completely replaces the traditional sedimentation tank through the interaction of the internal mechanism of the tank and the flocculant. The sewage washed into sand is clean and can be recycled for sand washing and water reduction. The occupation of resources and land meets the requirements of environmental protection and sustainable development.

Structure

Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection

Application

Now the deep cone thickener widely applied to dewatering to various metal and non-metal ores and the slurry solid-liquid separation in sectors like metallurgy, coals, chemicals, mine tailings and environment protection.

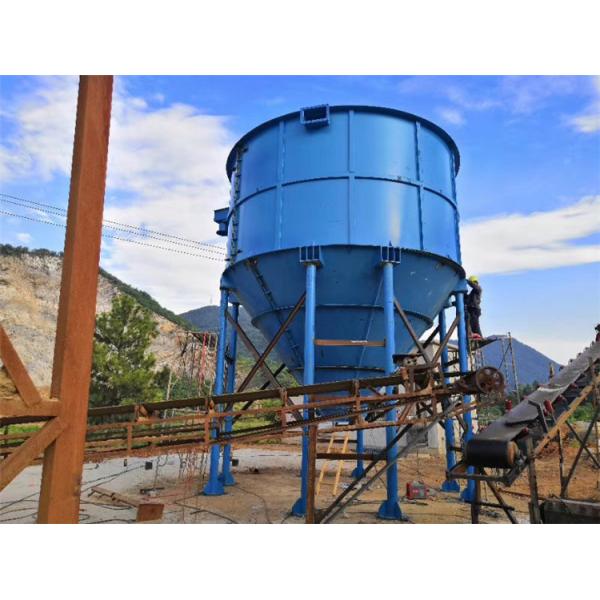

Equipment manufacturing site

Treatment Deep Cone Thickener Black Color High Cleanliness Environmental Protection

Tech specification

Model

Feed

concentration
(%)

 Weight
(kg)		 Tank diameter
(mm)		 Process
capacity(m³/h)		 Dimension
L*W*H
(mm)
WS-3600 ≤20 6000 Φ3000 100-120 3000*3000*6500
WS-6700 ≤20 13500 Φ6000 200-250 6000*6000*7500
WS-8700 ≤20 33000 Φ8000 250-350 8000*8000*7500
