Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size
Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size
Specifications
Brand Name :
MZZG
Model Number :
MZ200²
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 set 15 set per month
Delivery Time :
35 work days
Packaging Details :
Depond on product
Voltage :
Customized
FIltration Pressure :
0.4-0.6Mpa
Cake thickness :
30mm
Filter plate material :
Rubber Plastic
Material of frame :
Wrapped PP Plate
Keyword :
Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size
Function :
Mud Sewage Treatment
After-sales Service Provided :
Online support
Description

Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size

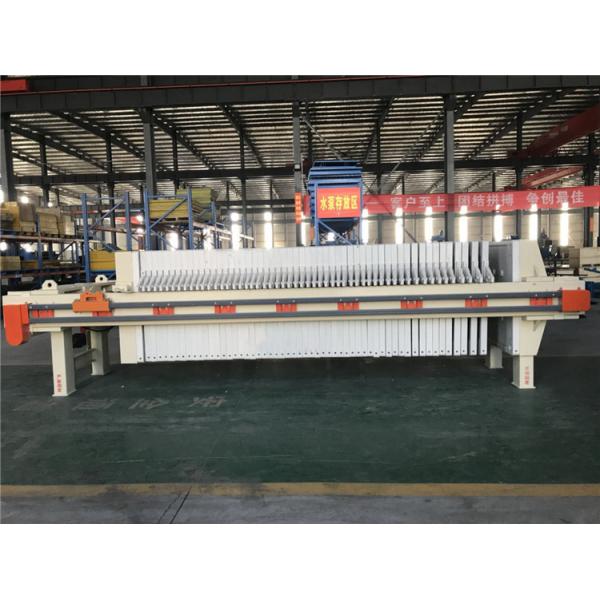

Products real shot

Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size

Structure

The frame part is the main body of the machine, which is used to support the filtering mechanism and connect other components. It is mainly composed of thrust plate, compression plate, cylinder block and main beam. When the machine is working, the piston inside the cylinder pushes the pressure plate, and presses the filter plate, diaphragm plate and filter cloth located between the pressure plate and the thrust plate to ensure that the pressured slurry is pressurized and filtered in the filter chamber.

Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size

Working principle

Chamber filter press is through the filter plate extrusion, so that the water in the sludge through the filter cloth discharge, to achieve the purpose of dehydration. A certain number of filter plates are closely arranged under the action of strong mechanical force, and a filter chamber is formed between the surface of the filter plate and the surface of the filter plate, filtered materials are sent to the filter chamber under strong positive pressure, the solid part of the filtered materials entering the filter chamber is intercepted by the filter medium (such as filter cloth) to form a filter cake, and the liquid part is discharged through the filter medium. So as to achieve the purpose of solid-liquid separation.

Spare parts

Hydraulic Operatio Screw Press Wastewater Treatment 1250x1250 Plate Size

Tech specifications

Model
Filtration
area
(㎡)
Power
(kw)
Plate
Dimension
(mm)
Plate NO.
(PCS)
Filter cake
capacity
(t/h)
Weight
(kg)
Dimension
L*W*H
(mm)
MZ50²
50
9.7
800*800
38
1-1.5
3456
4110*1400*1230
MZ80²
80
13.2
800*800
62
1-2
4584
4990*1400*1230
MZ100²
100
15
1000*1000
57
2-3
6628
5780*1500*1360
MZ140²
140
19
1250*1250
51
3-5
10455
5990*1800*1600
MZ200²
200
26
1250*1250
72
4-6
13504
7360*1800*1600
MZ250²
250
34
1250*1250
91
5-7
16227
8600*1800*1600
MZ400²
400
52.5
1500*1500
99
9-11
32574
9880*2200*1900
MZ500²
500
67.5
1500*1500
123
11-15
38606
11560*2200*1900

Advantage

The main advantages of this model are less loss during feeding, fast filtration speed, high temperature and high pressure resistance, good sealing performance, uniform cake washing, low water content, and uniform pressure in each filter chamber, and it is not easy to damage the board. Solid-liquid separation industry.
