Chemical Industry Automatic Sand Sieve Shaker , Laboratory Test Sieves Easy Operation
Chemical Industry Automatic Sand Sieve Shaker , Laboratory Test Sieves Easy Operation
Chemical Industry Automatic Sand Sieve Shaker , Laboratory Test Sieves Easy Operation
Chemical Industry Automatic Sand Sieve Shaker , Laboratory Test Sieves Easy Operation
Specifications
Brand Name :
WUWAY
Model Number :
WW-SS0201
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
500 + pcs + per month
Delivery Time :
15 work days
Packaging Details :
wood box
sieve spec. :
11 kinds
material :
stainless steel
Sieve size each sieve :
ɸ 200*25 mm
height each sieve group :
300 mm(without the cover)
sieve weight :
2.2 kg
No. of mesh :
11 kinds
Description
Description

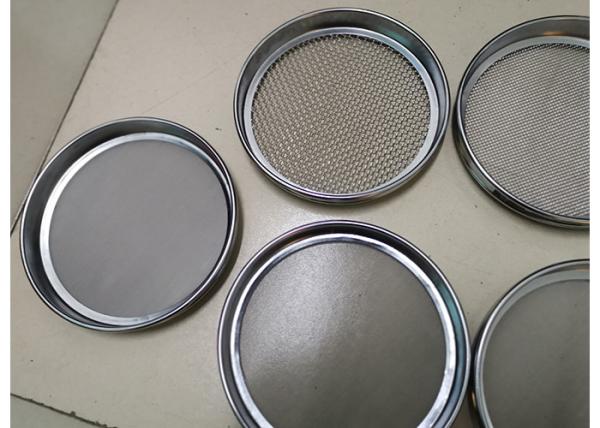

Its main use is to test the granularity of the molding materials. It includes 6,12,20,30,40,50,70,100,140,200,270mesh.
It also has sieve cover and bottom plate
main specifications
  • material: stainless steel
  • Sieve size each sieve ɸ200*25mm
  • height each sieve group 300mm(without the cover)00*25mm
  • weight of sieve group 2.2kg
  • check list between mesh and size No. 1 2 3 4 5 6 7 8 9 10 11
  • mesh No. 3 12 20 30 40 50 70 100 140 200 270
  • mesh size 3.35 1.7 0.85 0.6 0.425 0.3 0.212 0.15 0.103 0.075 0.053
Sieve size each sieve ɸ200*25mm
height each sieve group 300mm(without the cover)
weight of sieve group 2.2kg
check list between mesh and size No. 1 2 3 4 5 6 7 8 9 10 11
mesh No. 3 12 20 30 40 50 70 100 140 200 270
mesh size 3.35 1.7 0.85 0.6 0.425 0.3 0.212 0.15 0.103 0.075 0.053
Instrument features
1. It is mainly made of stainless steel, including stainless steel wire mesh, galvanized wire mesh, nylon mesh, chrome plate, stainless steel plate,
galvanized sheet, copper plate, copper plate, wood board, aluminum alloy plate, plastic plate.
2. Wear-resistant, easy to use, suitable for grading screening
3. ISO3310/1-1982 "Test sieves - Technical requirements and test sieves - Part 1: Wire mesh test sieves"
ISO3310/2-1982 "Test sieves - Technical requirements and test sieves - Part 1: Metal perforated plate test sieves"
main applications
It is mainly used in metallurgy, wine, medicine, chemical, agriculture, food, food, cement, coal, geology, scientific research and other industries of precision filtration.
Aperture mesh conversion
Screen size: 4.75mm, standard mesh: 4 mesh
Screen size: 4.00mm, standard mesh: 5 mesh
Screen size: 3.35mm, standard mesh: 6 mesh
Screen size: 2.80mm, standard mesh: 7 mesh
Screen size: 2.36mm, standard mesh: 8 mesh
Screen size: 2.00mm, standard mesh: 10 mesh
Screen size: 1.70mm, standard mesh: 12 mesh
Screen size: 1.70mm, standard mesh: 12 mesh
Screen size: 1.18mm, standard mesh: 16 mesh
Screen size: 1.00mm, standard mesh: 18 mesh
Screen size: 0.850mm, standard mesh: 20 mesh
Screen size: 0.710mm, standard mesh: 25 mesh
Screen size: 0.600mm, standard mesh: 30 mesh
Screen size: 0.500mm, standard mesh: 35 mesh
Screen size: 0.425mm, standard mesh: 40 mesh
Screen size: 0.355mm, standard mesh: 45 mesh
Screen size: 0.300mm, standard mesh: 50 mesh
Screen size: 0.250mm, standard mesh: 60 mesh
Screen size: 0.212mm, standard mesh: 70 mesh
Screen size: 0.180mm, standard mesh: 80 mesh
Screen size: 0.150mm, standard mesh: 100 mesh
Screen size: 0.125mm, standard mesh: 120 mesh
Screen size: 0.106mm, standard mesh: 140 mesh
Screen size: 0.090mm, standard mesh: 170 mesh
Screen size: 0.0750mm, standard mesh: 200 mesh
Screen size: 0.0630mm, standard mesh: 230 mesh
Screen size: 0.0530mm, standard mesh: 270 mesh
Screen size: 0.0450mm, standard mesh: 325 mesh
Screen size: 0.04mm, standard mesh: 363 mesh
Screen size: 0.0038mm, standard mesh: 400 mesh
Screen size: 0.0025mm, standard mesh: 500 mesh
Screen size: 0.0020mm, standard mesh: 600 mesh
Chemical Industry Automatic Sand Sieve Shaker , Laboratory Test Sieves Easy Operation
Chemical Industry Automatic Sand Sieve Shaker , Laboratory Test Sieves Easy Operation
