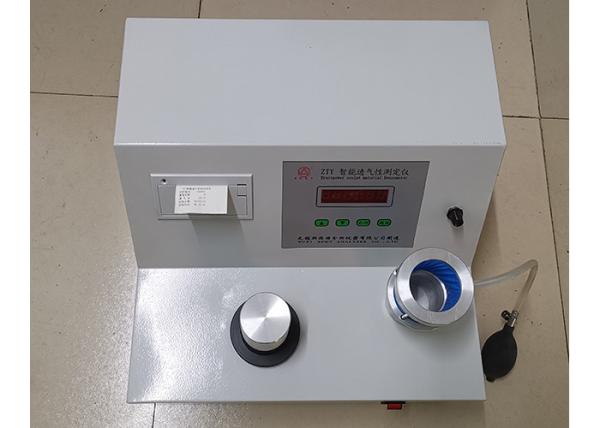

Moulding Sand Air Leakage Test Equipment , Porosity Testing Equipment Metal Shell
Moulding Sand Air Leakage Test Equipment , Porosity Testing Equipment Metal Shell
Specifications
Brand Name :
WUWAY
Model Number :
WW-AP1001
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, L/C
Supply Ability :
20 + pcs + per month
Delivery Time :
15 work days
Packaging Details :
wood box
name :
air permeability meter
air source pressure :
981 Pa±5 Pa (100 mm H2O）
control system :
micro computer
environment condition :
greenhouse, relative humidity: ≦90%(no on condensation)
air permeability :
0-2450, ±1% FS
air hole size :
large hole: 1.5mm, small hole: 0.5mm
Description
  • The instrument measures the wet compressive strength with a pressure sensor and measures the gas permeability using a barometric pressure sensor.
  • All actions are driven by air pressure.
  • The acquisition, processing, calculation and final printing of the detection signals are automatically performed under the control of the microcomputer.
  • The instrument is simple in structure, easy to operate, and fast and accurate.
Description
  1. It uses a special electronic frequency modulation motor, digitally controlled by a single chip microcomputer.
  2. High precision micro pressure sensor with constant air pressure output.
  3. It can automatically and accurately calculate the air permeability, display, data processing, storage and printing.
  4. It is used to determine the air permeability of moulding sand and core sand in dry or wet condition.
main specifications
  • measuring range: 0-0981 Pa
  • sample size ɸ50mm*50mm
  • air source pressure 981Pa±5Pa(100mmH2O)
  • air hole size large hole: 1.5mm, small hole: 0.5mm
  • air permeability 0-2450, ±1%FS
  • power source AC220V/50Hz, 3KW
  • enviroment condition greenhouse, relative humidity: ≦90%(no ondensation)
sample size ɸ50mm*50mm
air source pressure 981Pa±5Pa(100mmH2O)
air hole size large hole: 1.5mm, small hole: 0.5mm
air permeability 0-2450, ±1%FS
power source AC220V/50Hz, 3KW
enviroment condition greenhouse, relative humidity: ≦90%(no ondensation)
Instrument features
1. It adopts electronic frequency modulation speed regulation motor.
2. It is controlled by single chip micro computer.
3. It also adopts high precision micro pressure sensor in order to supply constant air pressure output.
4. It can finish testing, data processing, displaying, data saving and printing automaticly.
main applications
It is widely used in foundry, machinery, casting, qualitative inspection, scientific research, university lab....
