1. Description

25-35 years waterproof and fireproof sandwich panel living container house

2. Main Materials of container house

No	Component	Material	Specification	Picture
1	corner	ISO corner 178x162x118
2	Base beam	square tube Q235B	channel steel[12
3	base purlin	flat pipe Q235B	80x40x2
4	column	plate with hole Q235B	3mm
5	roof beam	flat pipe Q235B	120x80x3
6	floor board	cement board	18mm
7	floor decoration	PVC floor tile	2mm
8	roof tile	corrugated roof panel	1045×2.0mm
9	ceiling	EPS sandwich panel	1150×50mm
10	wall panel	EPS sandwich panel	1150×50mm
11	door plate	EPS doors	800mm*2100mm
12	window	PVC window	1150mm*1200mm

3. Feature

1. Long life span more than 20 years
2. Easy and fast to install, 4 experienced technicians/1 units 20ft container houses/day
3. Be combined freely to a big space in horizontal and vertical
4. Re-location wholly available
5. Multi layer is available
6. size customization

7. Energy saving and environment protection and can be recycled after lifetime .
8. Flexible design, many plan options for 1 bedroom with toilet, 2 bedroom unit, container kitchen, container toilet, container office etc,

4. Introduction of 20ft flat pack or foldable sandwich panel container

(1) The size of 20ft container house is 6.058 x 2.438x2.591m , 6 sets can put into a 40HQ . The man materials are ISO container corner , top&base steel structure , column (100x100mm square steel ) , floor board ,floor decoration , roof tile , ceiling , wall panel , door , window and screws . It is small and exquisite , economical and practical , life span is around 25-35 years , easy assemble and disassemble , 4 experience workers can install 1 unit 20ft container house in a day .

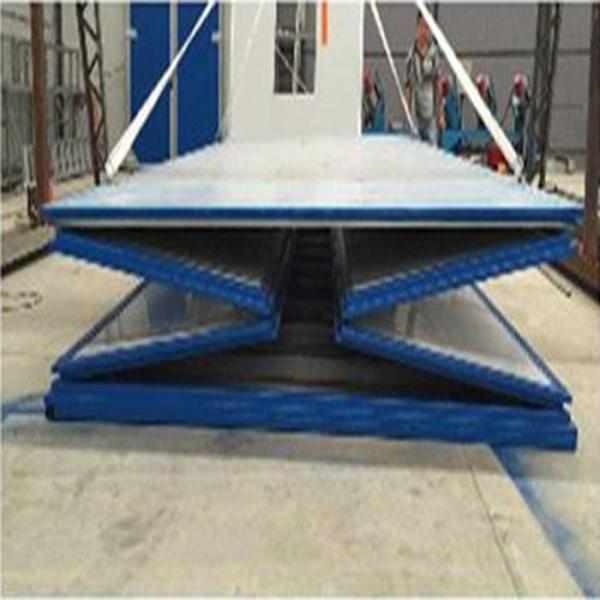

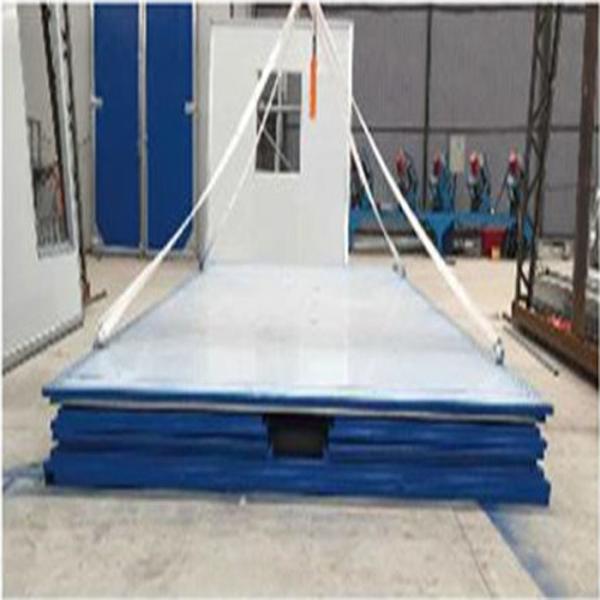

(2) The folding container house is new designed for quick assembly, convenient storage and transportation, with excellent features of heat preservation, inflaming retarding, water-proof, cold-proof, corrosion prevention, water tightness and air tightness.The whole structure is connected by hinge, hasp and other flexible components, and no need assemble installation process, no bolt fastening and electric power tools concern.Unfolding it only needs a forklift to raise top roof to its expanding height, then it is ready to use , low cost and saving the shipping cost , since 10 units can load into a 40HQ .

5. Window and doors

The size of window and doors can be done as your requirement .Window such as PVC sliding window , aluminum sliding window or other . Door use for the sandwich panel or steel door .

6. The below materials can choose for container house

6 . Different kinds of prefabricated house

We can do the following K type , T type , container house ect light steel structure prefab buildings, it is low cost and green evironmental protection and widely used for the worker camp , warehouse , dormitory , garage , office , shool , living house , temporary school and other project , life span is around 10-35 years and can be recycled after over lifetime .

7. Company information

8. Production workshop

9 . Shipment

10. Test certificate

10. FAQ

Q1 : Are you are manufacturer or trading company ?

We are manufacturer .

Q2 : When do you ship the goods if we place an order with you ?

With 2-10 days after received the payment .

Q3 : Can we have the samples , is it free ?

Yes , we can give away the small sample but no including the freight charge .

Q4 : What payment term be used for you ?

TT , L/C at sight . As a rule , 30%TT deposit after sign the contact , the balance should be paid before delivery .

Q5 : How many quantity put into a 40HQ ?

It depends on the item itself (Length , width , thickness ) , but usually 63 cubic meters for a 40HQ .
