Portable Construction Site Canteen Prefab Camp Modular Container House
Portable Construction Site Canteen Prefab Camp Modular Container House
Portable Construction Site Canteen Prefab Camp Modular Container House
Portable Construction Site Canteen Prefab Camp Modular Container House
Portable Construction Site Canteen Prefab Camp Modular Container House
Portable Construction Site Canteen Prefab Camp Modular Container House
Specifications
Brand Name :
KHOME
Model Number :
KHPA
Certification :
CE,ISO
Place of Origin :
Henan, China
MOQ :
4 units
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
420 units per month
Delivery Time :
Depend on quantity needs
Packaging Details :
Naked packaged in 20 GP or 40 HQ shiping container
Wall Material :
Rock wood/PU/EPS
Steel Frame Material :
Gavalnized Steel with Powder Coat
Wall Panel Thickness :
50 mm/ 75 mm/ 100 mm
Column Material :
2.3mm thickness galvanized steel structure
Cutomized :
Standard or Customized
Description

Portable Construction Site Canteen Prefab Camp Modular Container House

I. Product Introduction

Since the popularity of container houses is increasing year by year, it proves its recognition and acceptance of the market. After all, it is a new type of mobile house. Even though its service life will not be as long as the permanent building, but if it can maintain the container house scientifically in the use process, it can greatly improve the service life of the container house.

The container mobile house is mainly used in temporary houses such as housing construction sites, municipal engineering sites, railway engineering sites, highway engineering sites, and water conservancy engineering sites.

II. Product description

Portable Construction Site Canteen Prefab Camp Modular Container House

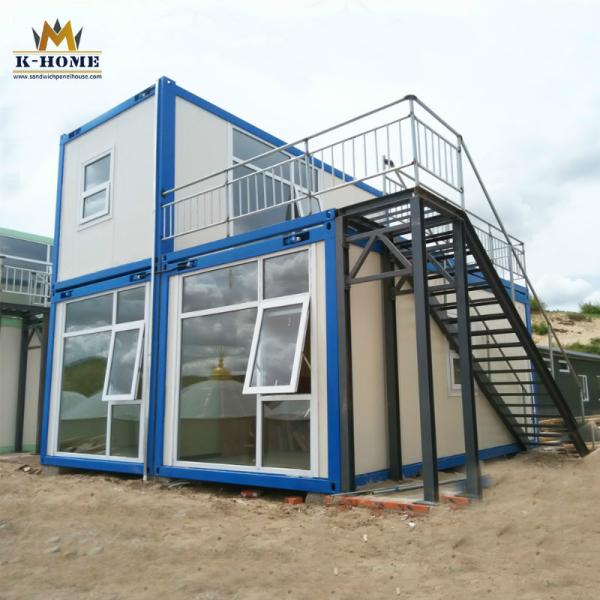

This portable sandwich panel house is designed for the site canteen.

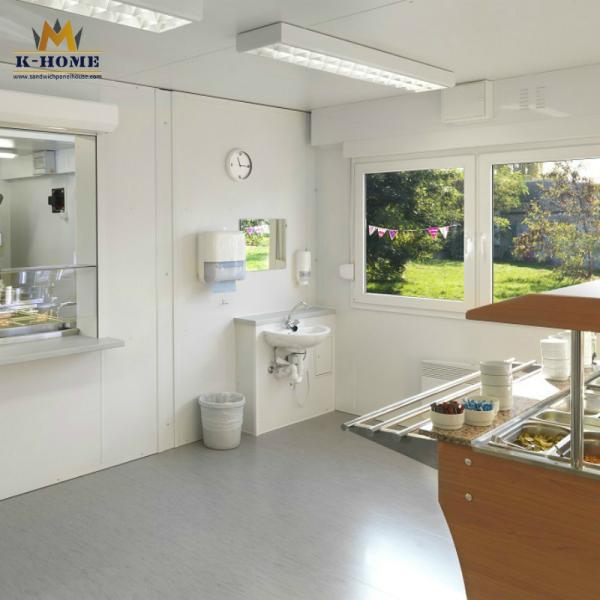

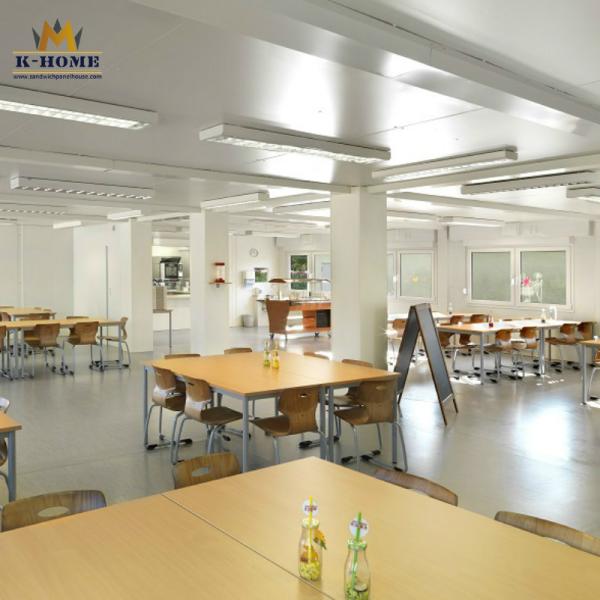

It is a two-story container building. On the ground floor, there is the kitchen and the dining hall. And the first floor is an entertainment room with a platform for people to enjoy themselves.

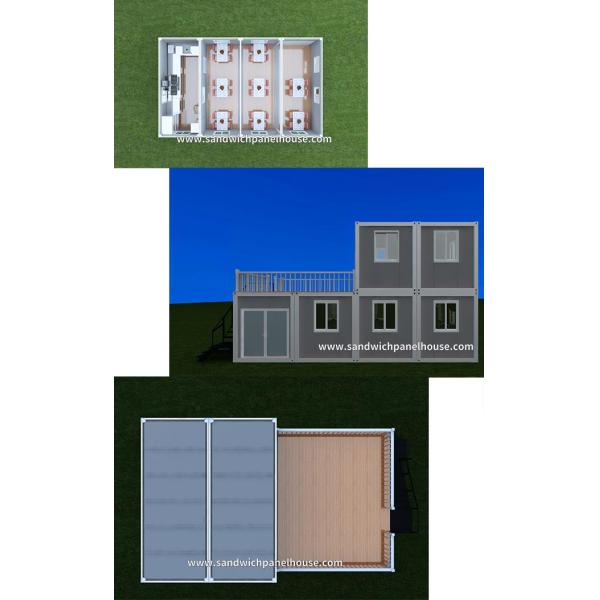

Layout information

1 Building area 144 sqm
2 Land area 72 sqm
3 Capacity 40 people

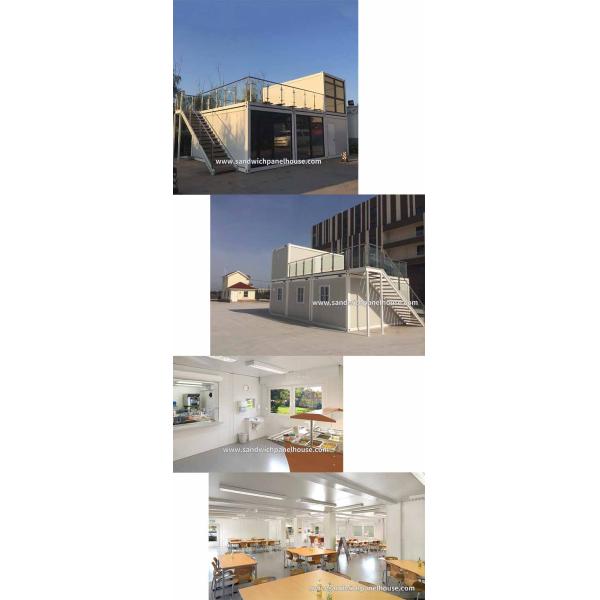

III. Product show

Portable Construction Site Canteen Prefab Camp Modular Container House

III. Main Specification

Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling)
I Roof Plate Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated;
Strong and corrosion resistance.
ii Roof Purlin 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube;
Firm, strong corrosion resistance and has a long service life.
Part 2: Steel Frame (Corner post + column + beam + bolt)
I Corner Connection Part Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;
Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top);
Feather: Safe, strong, and corrosion resistance.
The color is glossy and can last for a long time.
ii Column Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size: 160* 160* 2480mm;
Feather: Safe, strong, and corrosion resistance.
The color is glossy and can last for a long time.
iii Top and Floor Long Beam Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size 1: 3680* 60* 160 mm;
Size 2: 5680* 60* 160 mm;
Feather: Safe, strong, and corrosion resistance. The color is glossy and can last for a long time.
iv Top & Floor Short Beam Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size 1: 2680* 60* 160 mm;
Feather: Safe, strong, and corrosion resistance.
The color is glossy and can last for a long time.

Portable Construction Site Canteen Prefab Camp Modular Container House
