Lightweight Portable Construction Site Office Modular Container House With Glass Facades
Lightweight Portable Construction Site Office Modular Container House With Glass Facades
Lightweight Portable Construction Site Office Modular Container House With Glass Facades
Lightweight Portable Construction Site Office Modular Container House With Glass Facades
Lightweight Portable Construction Site Office Modular Container House With Glass Facades
Lightweight Portable Construction Site Office Modular Container House With Glass Facades
Specifications
Brand Name :
KHOME
Model Number :
KHPCO
Certification :
CE, ISO
Place of Origin :
Henan, China
MOQ :
10 units
Price :
$2050-$2100 per unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
420 units per month
Delivery Time :
Depend on quantity needs
Packaging Details :
Naked packaged in 20 GP or 40 HQ shipping container
Connection :
Screws,Bolts
Fireproof level :
A1
Cutomized :
Standard or Customized
Wall Insulation :
Rock wood sandwich panel
Service life :
More than 15 years
HS code :
9406900090
Description

Beautiful Designed Portable Construction Office Modular Container House With Glass Facades

I. Introduction

The Portable container house is sturdy and durable, especially suitable for the units that doing construction works.

It is composed of steel and has strong anti-seismic and anti-deformation capabilities.

This kind of house can be combined with multiple container mobile homes to form different shapes and can be beautiful like villas, and more can be composed of different sizes of employee dormitory, management office, etc., which can be moved and used at any time without generating any operational waste.

II. Design description

Lightweight Portable Construction Site Office Modular Container House With Glass Facades

This Portable container office building can be used for construction sites, factories, and oil & gas fields. The office building is decorated with glass facades for all side of the walkway container, making it looks very beautiful and much more durable.

It is designed with 9 rooms for this building, three big rooms on the first floor as the conference room, dining room, and toilet room.

On the second floor, there are 6 small rooms for offices, which could be used for different departments.

III. Layout description

1 Building area 336 sqm
2 Land area 168 sqm
2 Office room qty. 6
3 Conference room qty. 1
4 Dining room qty. 1
5 Toilet room qty. 1

IV. Main material specification

Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling)
I Roof Plate Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated;
Strong and corrosion resistance.
ii Roof Purlin 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube;
Firm, strong corrosion resistance and has a long service life.
iii Roof Insulation 50 mm glass wool insulation material;
Fireproof A1 class, non-combustion.
iv Ceiling The ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and color coated;
Strong and corrosion resistance.
Part 2: Steel Frame (Corner post + column + beam + bolt)
I Corner Connection Part Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;
Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top);
Feather: Safe, strong and corrosion resistance.
The color is glossy and can last for a long time.
ii Column Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size: 160* 160* 2480mm;
Feather: Safe, strong and corrosion resistance.
The color is glossy and can last for a long time.
iii Top and Floor Long Beam Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size 1: 3680* 60* 160 mm;
Size 2: 5680* 60* 160 mm;
Feather: Safe, strong and corrosion resistance. The color is glossy and can last for a long time.
iv Top & Floor Short Beam Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size 1: 2680* 60* 160 mm;
Feather: Safe, strong and corrosion resistance.
The color is glossy and can last for a long time.
v Bolt High strength galvanized steel bolt;
To fix the Corner Connection Part and beam, Corner Connection Part and column;
Firm, strong and corrosion resistance.

Lightweight Portable Construction Site Office Modular Container House With Glass Facades

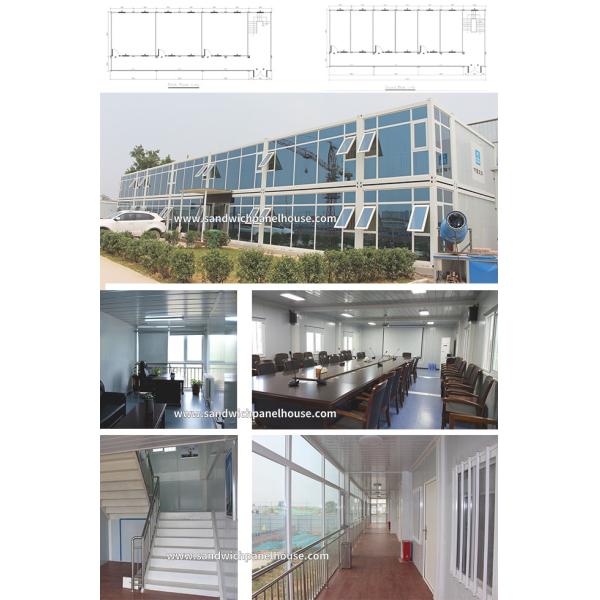

V. Program show

Lightweight Portable Construction Site Office Modular Container House With Glass Facades
