Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Fast Construction Container Living Quarters Homes
Specifications
Brand Name :
KHOME
Model Number :
KHSPCH
Certification :
CE, ISO, PVOC, SGS
Place of Origin :
Henan, China
MOQ :
4sets
Price :
USD2200/set~USD2500/set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
30 days
Packaging Details :
Loaded Into 20/40ft shipping container
Usage :
Container Van Dormitory
Warranty :
1 year
After-sale Service :
Online technical support, Onsite Installation
Product Type :
Flat Pack Modular Container
Design Style :
Customized
Furniture Accessories :
Provide if need
Floors :
1 or 2 or 3
Plumbing :
Provide if need
Electricity :
Provide
Life Span :
At least 20 years
Keywords :
Container Van Construction, Construction Site Living Quarters, On Site Accommodation
Description


Fast Construction Container Living Quarters Homes

Fast Construction Container house is very suited for construction sites, Office Building, School and hospital etc.
It can also be easily disassembled after use and transferred to a new location.
Advantages of Fast Construction Container house

With the modularity feature, the construction can be completed quickly;
Insulation, windproof, shockproof, moisture-proof, waterproof;
Especially for units that frequently change construction sites;
Clever and responsible design can meet a variety of needs.

Fast Construction Container Living Quarters Homes

Detail Specifications of Prefabricated Container House

Item Specification
Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling)
1 Roof Plate

Roof tile is 0.5 mm thickness steel sheet;

Pre-coated and color coated;

2 Roof Purlin 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube;
3 Roof Insulation 50 mm glass wool insulation material;
4 Ceiling

Ceiling is 0.4 mm thickness shaped steel plate;

Pre-coated and color coated;

Part 2: Steel Frame (Corner post + column + beam + bolt)
1 Corner Connection Part

Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;

Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top);

2 Column

Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;

Size: 160* 160* 2480mm;

3 Top and Floor Long Beam

Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;

Size: 5680* 60* 160 mm;

4 Top & Floor Short Beam

Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;

Size: 2680* 60* 160 mm;

5 Bolt

High strength galvanized steel bolt;

To fix the Corner Connection Part and beam, Corner Connection Part and column;

Part 3: Floor System (Floor structure + floor panel + floor leather)+Wall Panel
1 Floor Purlin Material: 10pcs 40x80mm Galvanized Square tube +4pcs 40x80mm Galvanized Square tube +2pcs 30x50mm Galvanized Square tube;
2 Floor Panel 18 mm MGO board
3 Wall Panel

50 mm rock wool sandwich Panel;

Outside color is light silver gray (0.38mm thickness steel );
Inside is white color steel (0.38mm thickness steel ).

Part 4: Drainage system (Top drainage channel + drain pipe)
1 Water drain pipe and channel Water drain pipe:
Diameter: 50mm
Length: 2700mm;
Water drain channel: 90(W)x50(H)mm;
Part 5 : Door & window system
1 Standard Door Size 1: 930mm*2000mm
Material: sandwich panel/steel door;
2 Window Size 1: 930mm*1200mm
Plastic steel single glass sliding window (including screens) With 0.35mm Double glass and strength pvc window frame/Glass Window;
Window rail is smooth.
Part 6: Electricity System
1 Lamp Type: LED energy saving lamp;
Power: 24W
Include: Two sockets and one switch;
Note: The socket will be equipped according to the local standard.
Includes: electric wire and conduit;
Use: The electric wire will be in the conduit and go through the wall panel for concealed installation.
2 Socket & Switch
3 Electric Wire
4 Air Circuit Breaker
Part 7: Internal Decoration
1 Internal Corner Material: PVC;
Includes: Vertical internal corner and horizontal internal corner.
2 Steel Plate for Internal Connection Material: Stainless Steel;
Used on the joints between two bottom frames when different containers connected with each other.
3Floor LeatherMaterial: PVC
Thickness: 1.6mm
Features: moisture proof; wear resisting;
anti-corrosive and thermal insulation.
Part 8: Installation Accessories
1 Sealant Used for the joints of doors and windows for better waterproof.
2 Structure Adhesive Used for the reinforcement and seal of the steel frames.
3 Screws Include: rivets, bolts, drill tail screw;


Fast Construction Container Living Quarters Homes

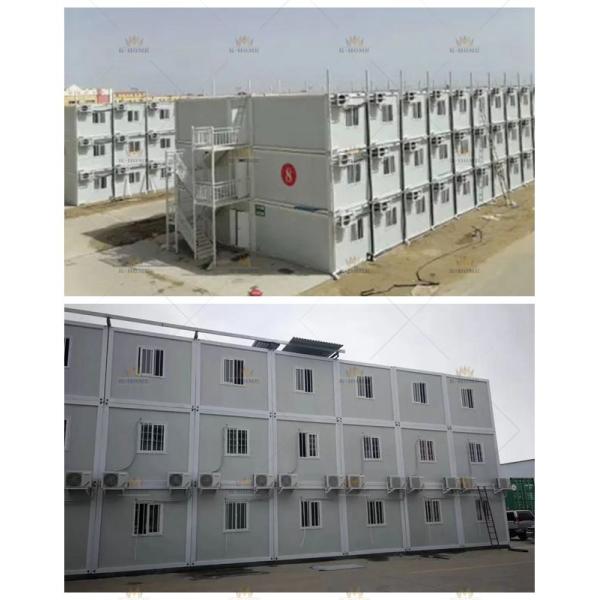

On-site Feedback from Our Customer

Fast Construction Container Living Quarters Homes

FAQ:
1. What kind of company you are?
We are kinds of steel structure building Manufacturer located in Henan, China.
You will enjoy the best price and competitive price.
Our factory has more than 20 years of working experience.
We exported to Kenya, Singapore, Philippines, Guatemala, Sudan, Ethiopia, Arab, and so on.

2. What‘s the quality assurance you provided and how do you control quality?
Established a procedure to check products at all stages of the manufacturing process - raw materials, in-process materials,
validated or tested materials, finished goods, etc.

3. Can you provide the design drawings service?
Yes, we have a professional design team. We could design a turnkey solution as your requirements.

4. Do you provide installation service?
Yes, we can provide the service of installation.
We can send one or two professional technical engineers to guide installation on-site overseas if you need.
Or we can send you detailed installation instructions based on your drawing.
