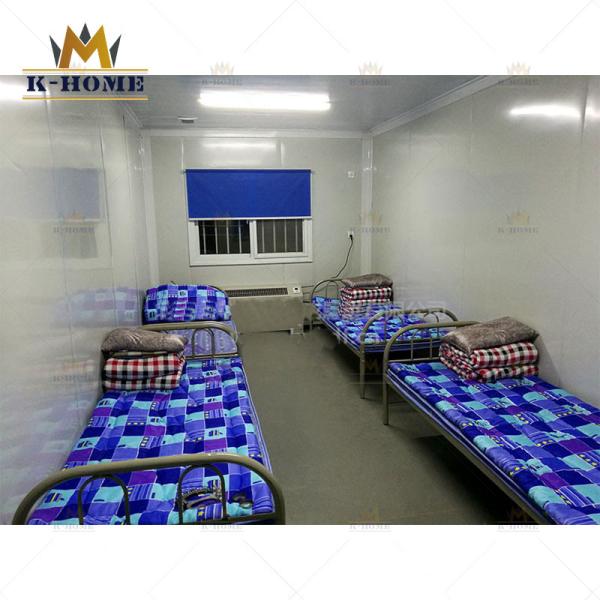

20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
20Ft Temporary Construction Site Worker Accommodation
Specifications
Brand Name :
KHOME
Model Number :
KHPA
Certification :
CE, SGS, ISO, PVOC
Place of Origin :
Henan, China
MOQ :
4 sets
Price :
USD2200/set~USD2400/set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
30 days
Packaging Details :
20/40 shipping container
Material :
Container
Usage :
Office, Dormitory, Living Unit, Toilet, Shop
Size :
3000*5950*2800mm or Customized
Roof :
Roof structure
Body Structure :
Prefabricated Light Steel Structure
Door :
Steel Door
Window :
PVC Sliding Window / Shutter Window
Ceiling :
Steel Ceiling
Flooring :
Fireproof MGO board+floor leather
Specification :
Customized
Keywords :
Construction Site Facilities, Construction Site Living Quarters, Mining Construction Kit House
Description

20Ft Temporary Construction Site Worker Accommodation

The layout of 20Ft Temporary Construction Site Worker Accommodation shall be convenient for workers' living.
The Temporary Construction Site Worker Accommodation should be built inside the construction site,

which is why we often see many container mobile houses as temporary Worker Accommodation in the construction site.

Why is the container mobile house the first choice for Temporary Construction Site Worker Accommodation?

  • The container mobile house has low cost and good seismic performance.
  • The house is an integral structure with a frame inside, and the wall is made of sandwich panels, which is safe and efficient, and can be moved as a whole.
  • No construction waste is produced, and the service life is long.
  • After this construction site is completed, it can be transported to the next construction site for use. Reuse, green and environmental protection.

20Ft Temporary Construction Site Worker Accommodation

20Ft Temporary Construction Site Worker Accommodation

The Techinical Specifications of 20Ft Temporary Construction Site Worker Accommodation House load:

20Ft Temporary Construction Site Worker Accommodation
● Bearing max. load capacity 2.0 kN/m² (200 kg/m²)
● Wind load:25 m/s (90 km/h)
● Compression capability loading—150kg/m3
● Steel frame: Maximum temperature of structure 500°C

Dimensions


●External Size(mm): 5950(L)×3000(W)×2800(H)
●Internal Size(mm): 5730(L)×2780(W)×2480(H)


Floor:


● MGO Board: 18mm thick fireproof floor board (Option Fiber cement floor)
● 1.6mm floor leather

Roof:


● Ceiling: 0.4mm steel ceiling
● Insulation: 50mmglass wool insulation material
● 0.5mm roof steel sheet
● Roof purlins

Wall panels:


● Width: 950mm
● Insulation: 50mm Rockwool, (Option PU sealing Rockwool and PU) ●Both side cladding: 0.4mm steel sheet, RAL9002

Windows:


● PVC steel sliding windows with dimension 950×1200mm
● Mosquito screen

Exterior Doors:


● Steel door with dimension 950×2000mm


Electricity:


● Light, Switch, Socket, distribution box and breaker,
● Different electrical standards to match with most countries in the world; such as CE, UL, CSA, AS

Project Show of 20Ft Temporary Construction Site Worker Accommodation

20Ft Temporary Construction Site Worker Accommodation
