Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface
Specifications
Brand Name :
SANCO
Model Number :
Membrane wall
Certification :
ASME ,ISO,EN,
Place of Origin :
China
MOQ :
10 T
Price :
Negotiation
Supply Ability :
800tons/months
Delivery Time :
100 working days
Packaging Details :
SEA PACKING
Application :
Boiler Walls
Pressure Range :
Up to 10MPa
Size :
Customized
Material :
Carbon Steel
Temperature Range :
Up to 600°C
Efficiency :
High
Description

Customized Dimension Boiler Menbrane Wall for Perfect Fit and Functionality

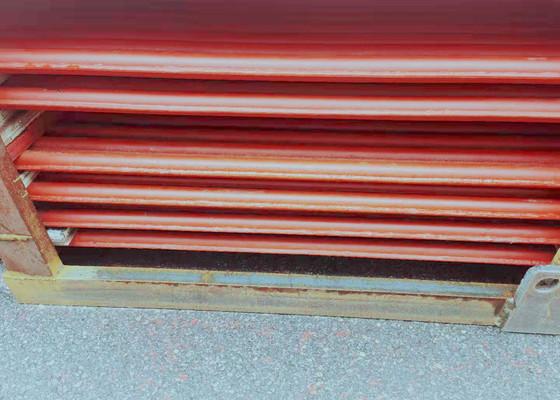

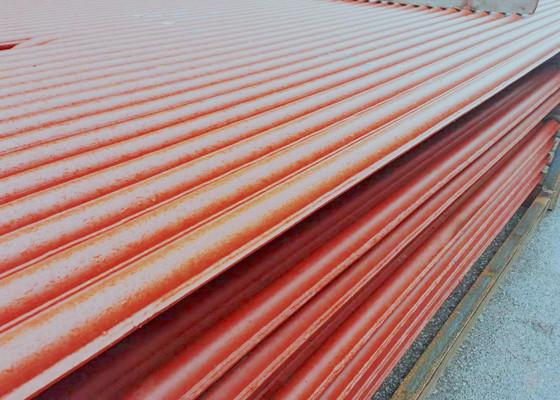

It is the main evaporation heating surface of the boiler. Its upper end is connected with the upper drum, and its lower end isconnected with the lower drum or header
Product Description
Material
Carbon steel,Alloy steel,etc.
Tube size
Φ38 - 76 mm, Customization
Standard
ISO , ASME
Model
Studded
Dimension
Customization
Manufacturing process
Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Polishing→Tube joint welding→Assembly →Welding →Inspection→Heat treatment→Hydraulic pressure test→Painting→ Packaging
Installation location
Around the boiler combustion chamber

Carbon Steel Boiler Menbrane Wall Water Wall Tube Evaporation Heating Surface

Adavantages of Water Wall Panel

1.ensure the sealing of furnace wall and reduce air leakage in combustion chamber.

2.realize full water cooling in the combustion chamber, which is conducive to preventing coking under the condition of intensified combustion.

3.low heat storage capacity, fast heating and cooling of the combustion chamber, which can shorten the cooling time of the boiler starting and stopping.

4.it is suitable to use tube-laying furnace wall, which greatly reduces the load of boiler frame and facilitates suspension.

5.compared with the light pipe, the heat absorption capacity of the pipe is improved.

6.improve the pre-assembly degree of boiler components, facilitate and reduce the installation workload.

Company Introduction

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
