GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
GB Standard Boiler Membrane Wall Water Panel For Sugar Mill Boilers
Specifications
Brand Name :
Saneco
Certification :
ASME, EN, GB, ISO
Place of Origin :
China
MOQ :
20 tons
Delivery Time :
80~120 days
Packaging Details :
Steel frame
Corrosion Resistance :
High
Material Of Tube :
SA192
Advantage :
Easy Install
Warranty :
2 Years
Function :
wall decoration and heat insulation
Usage :
Industry/Power Station
Application :
Boiler, Power Plant
Fin Bar :
SA 36
Nde :
100% PT,100 RT,100% UT
Fuel :
coal-fired
Insulation :
Excellent
Condition :
New
Temperature Resistance :
Up to 1000°C
Pressure :
high pressure
Welding Way :
Submerged Arc Welding
Description

Boiler Water Wall Panel of Membrane Type in ASME/GB Standard for Sugar Mill Boilers and Other Industrial Boilers​

Product Introduction

Membrane water wall is an air-tight structure consisting of pipes and fins.The advantages are less air leakage in furnace; can use pipe-laying wall, less load on steel structure and lower cost of boiler; easy to use suspension structure and improve thermal expansion system, suitable for large-scale mechanized production, high assembly rate, low heat storage capacity and shorten star-up and shutdown time. The disadvantage is that the manufacturing process is complex. Membrane water wall is often used in large capacity, high temperature and high pressure boilers.

Strong points of membrane water wall

(1) Ensure the sealing of furnace wall and reduce air leakage in combustion chamber.

(2)The realization of full water cooling in combustion chamber is beneficial to prevent coking under the condition of intensified combustion.

(3)The cooling time of start-up and shutdown of boilers can be shortened because of its small heat storage capacity, fast temperature rise and fast cooling in combustion chamber.

(4)Pipe-laying furnace wall is suitable, which greatly reduces the load of boiler frame and it is convenient for suspension and lifting.

(5)Compared with the bare tube type, the heat absorption capacity of the tube is improved.

(6)It improves the per-assembly degree of boiler components, facilitates and reduces the installation workload.

Specification

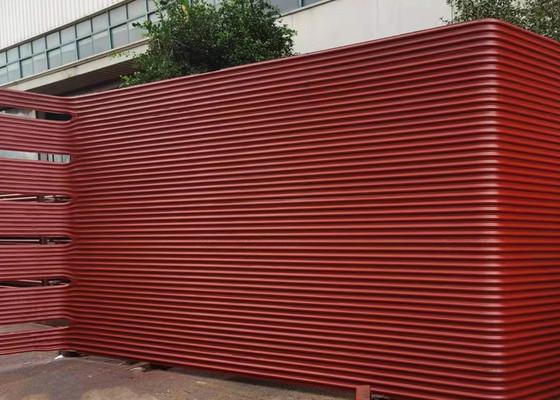

The pictures above are membrane walls for one Pakistan project with details of specification below:

Name Memebrane Walls
Material ASME SA192M and Q235B
Tube size 63.5*4.5mm
Standard As per ASME/GB standard
Equipment Automatic production equipment
Application Maintenance of Sugar Mill Boiler and Power Plant Boiler
