395-415 W 2x 54 CELLS IP68 3 Bypass Diodes 23KG PERC Solar Module Bifacial Half Cut Mono Panel
395-415 W 2x 54 CELLS IP68 3 Bypass Diodes 23KG PERC Solar Module Bifacial Half Cut Mono Panel
Specifications
Brand Name :
SANGSOLAR
Model Number :
SANGSOLAR
Place of Origin :
China
Testing Condition: STC Maximum Power (Pmax/W) :
395
Operating Voltage (Vmpp/V) :
31.30
Operating Current (Impp/A) :
12.62
Module Efficiency (%) :
20.23
Module Dimensions :
1722*1134*30mm(67.80*44.65*1.18inches)
Weight :
23KG
Frame :
Anodized Aluminium Alloy(Black）
Refer.Bifaciality Factor :
70%±5%
Connectors :
MC4
Junction Box :
IP68，3 Bypass Diodes
Output Cables :
4mm2，300mm(+)/300mm(-) Or Customized Length
Operating Temperature :
-40°C~+85°C
Maximun System Voltage :
DC1500V
Certification :
CE/TUV/BSP/CSI
Payment Terms :
TT/LC/Alibabashop
MOQ :
Pallet
Price :
Negotiated
Packaging Details :
Carton on Pallet
Delivery Time :
10-30days
Supply Ability :
2GW/Year
Description

Product Description:

Higher Power Output
Dual-sided Generation Effectively Reducing Balance Of System (BOS) Costs Conversion efficiency reaches 21.25%"
Less Loss
Innovative non-destructive cutting technology/reducing the risk of hidden cracks Promise a higher yield for PV system"
Enhanced Safety Level
Passed Fire test Class A
IP68 water resistant for long-term weaher endurance"
Rarely affected by light induced degradation
Resistant to harsh environments such as salt mist,sand and dust, ammonia gas, etc."

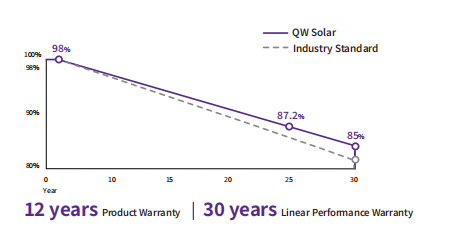

Excellent Linear Power Warranty
Power degradation within 2-30 years is ≤ 0.45% per year.
Minimum module output power not lower than 85% each 30 years.

The PERC Solar Module is also designed with safety in mind. It has a safety protection class of ClassⅡ, which means it is protected against electric shock. This makes it a safe and reliable choice for residential and commercial applications alike. With its advanced safety features, you can trust the PERC Solar Module to provide you with clean, renewable energy for years to come.

Another key feature of the PERC Solar Module is its junction box. This solar panel is equipped with an IP68-rated junction box, which provides excellent protection against dust and water. It also has three bypass diodes, which help to minimize the impact of shading on the performance of the panel. This makes it a highly efficient and reliable choice for those who want to maximize their energy production.

The PERC Solar Module also features a back glass that is 1.6mm thick and black grid-patterned. This provides excellent protection against environmental factors, such as wind and rain, while also ensuring maximum efficiency and performance. The front glass is coated with AR coating, which helps to improve the efficiency of the panel by reducing the reflection of sunlight. This means that the PERC Solar Module is able to generate more energy from the same amount of sunlight.

Overall, the PERC Solar Module is a high-quality, efficient, and reliable perc pv module that is perfect for a wide range of applications. Whether you're a homeowner looking to reduce your energy bills or a business owner looking to go green, the PERC Solar Module is the perfect choice for you. With its advanced features, high power output, and excellent efficiency, this solar panel is sure to provide you with clean, renewable energy for years to come.

395-415 W 2x 54 CELLS IP68 3 Bypass Diodes 23KG PERC Solar Module Bifacial Half Cut Mono Panel395-415 W 2x 54 CELLS IP68 3 Bypass Diodes 23KG PERC Solar Module Bifacial Half Cut Mono Panel

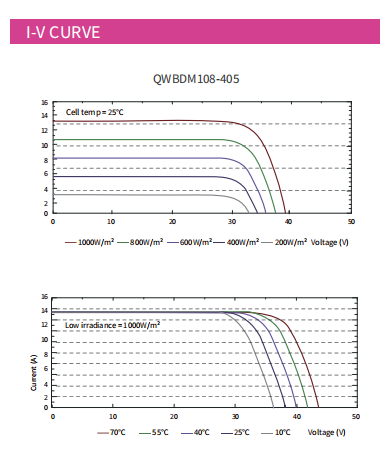

ELECTRICAL CHARACTERISTICS
Model/QWBDM108- 395W 440W 405W 410W 415W
Testing Condition: STC
Maximum Power (Pmax/W)		 395 440 405 410 415
Operating Voltage (Vmpp/V) 31.30 31.38 31.45 31.52 35.59
Operating Current (Impp/A) 12.62 12.75 12.88 13.01 13.14
Open-Circuit Voltage (Voc/V) 37.04 37.13 37.29 37.29 37.37
Short-Circuit Current (Isc/A) 13.47 13.60 13.73 13.76 13.99
Module Efficiency (%) 20.23 20.48 20.74 21.00 21.25

STC: Irradiance 1000W/m², Spectra at AM1.5,Cell Temperature 25℃.
Power Output Tolerance: 0~+5W, Test Uncertainty for Pmax:±3%

Features:

The Bifacial PERC Solar Module (half-cut) 395-415W is an advanced solar panel that offers many benefits to the user. One of the most significant advantages of this panel is its high power output. Due to its dual-sided generation capability, it can produce more electricity than traditional solar panels and can effectively reduce the balance of system (BOS) costs. Additionally, the conversion efficiency of the module reaches 21.25%, which is quite impressive.

The innovative non-destructive cutting technology used in the manufacturing process of the module makes it less prone to hidden cracks, reducing the risk of power loss and ensuring a higher yield for the PV system. Besides, the bifacial solar module is resistant to light-induced degradation and harsh environmental conditions such as salt mist, sand, dust, and ammonia gas, making it a reliable option for different applications.

The safety level of the Bifacial PERC Solar Module is also enhanced. It has passed the fire test Class A and features IP68 water resistance, ensuring long-term weather endurance. Users can trust this solar module to perform well even in adverse weather conditions.

The module also comes with an excellent linear power warranty, which guarantees that its power degradation within 2-30 years is ≤ 0.45% per year. Additionally, its minimum module output power is not lower than 85% each 30 years, implying excellent performance and longevity.

REAR SUDE POWER GAIN(REFERENCE TO 405W FRONT)
Pmax Gain 5% 10% 15% 20% 25%
Pmax/W 456.3 445.5 465.8 486 506.3
Vmpp/V 31.45 31.45 31.47 31.47 31.47
Impp/A 13.53 14.17 14.80 15.44 16.09
Voc/V 37.25 37.25 37.28 37.28 37.28
Isc/A 14.46 15.17 15.73 16.45 17.12

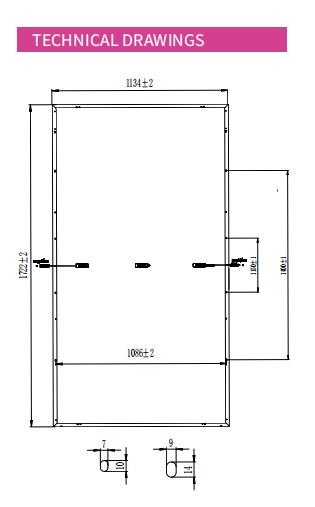

MECHANICAL CHARACTERISTICS
Solar Cell Mono-Crystalline Silicon 182*91mm
No. of Cells 108(6*18)
Module Dimensions 1722*1134*30mm(67.80*44.65*1.18inches)
Weight 23kg
Front Glass AR Coating Tempered Glass
Back Glass 1.6mm Black Grid-patterned Glass
Frame Anodized Aluminium Alloy(Black)
Junction Box IP68,3 Bypass Diodes
Output Cables 4mm² , 300mm(+)/300mm(-)
or Customized Length
Connectors MC4
395-415 W 2x 54 CELLS IP68 3 Bypass Diodes 23KG PERC Solar Module Bifacial Half Cut Mono Panel
APPLICATION CONDITIONS
Maximun System Voltage DC1500V
Operating Temperature -40°C~+85°C
Maximun Series Fuse 25A
Safety Protection Class ClassⅡ
Mechanical Load Front side 5400Pa, Backside 2400Pa
Refer.Bifaciality Factor 70%±5%
TEMPERATURE CHARACTERISTICS
Temperature Coefficient of Pmax -0.34%/°C
-0.25%/°C
+0.04%/°C

42±2°C
Temperature Coefficient of Voc
Temperature Coefficient of Isc
Nominal Module Operating
Temperature (NOCT)

Support and Services:

The PERC Solar Module product technical support and services include:

  • Product installation guidance and troubleshooting
  • Product operation and maintenance assistance
  • Warranty and repair services
  • Technical training and education
  • Product performance monitoring and optimization
  • Online resources and documentation
PACKING CONFIGURATION
Type of Shipping Platform Trailer (17.5m) Container 40'HC
Pieces/Pallet 36 36
Total Amout 1332 936

FAQ:

Q: What is the brand name of this solar module?

A: The brand name of this solar module is Sangsolar.

Q: What is the model number of this Sangsolar module?

A: The model number of this Sangsolar module is QWBDM108-.

Q: Where is this Sangsolar module made?

A: This Sangsolar module is made in China.

Q: What is the power output of this Sangsolar module?

A: The power output of this Sangsolar module is [insert power output here, e.g. 320 watts].

Q: What is the warranty period for this Sangsolar module?

A: We cannot provide warranty-related content, please refer to the warranty document.
