435-455W 2x 60CELLS Perc Solar Panel Module with MC4 Connectors IP68 Junction Box Grid patterned Back Glass
435-455W 2x 60CELLS Perc Solar Panel Module with MC4 Connectors IP68 Junction Box Grid patterned Back Glass
Specifications
Brand Name :
SANGSOLAR
Model Number :
SANGSOLAR
Place of Origin :
China
Power :
435w
Operating Voltage (Vmpp/V) :
34.67
Operating Current (Impp/A) :
12.55
Module Efficiency (%) :
20.04
Module Dimensions :
1914*1134*30mm(75.35*44.65*1.18inches）
Weight :
26.4kg
Maximun System Voltage :
DC1500V
Connectors :
MC4
Front Glass :
2.0mmAR Coating Tempered Glass
Maximun Series Fuse :
25A
Back Glass :
2.0mm Black Grid-patterned Glass
Junction Box :
IP68，3 Bypass Diodes
Refer.Bifaciality Factor :
70%±5%
Certification :
CE/TUV/BSP/CSI
Payment Terms :
TT/LC/Alibabashop
MOQ :
Pallet
Price :
Negotiated
Packaging Details :
Carton on Pallet
Delivery Time :
10-30days
Supply Ability :
2GW/Year
Description

Product Description:

One of the standout features of the PERC Solar Module product is its ability to operate in extreme temperatures. It can function between -40°C and +85°C, making it an ideal solar panel for harsh weather conditions. The output cables are 4mm2, 300mm (+)/300mm (-), but can also be customized to fit your specific needs.

Another impressive feature of the PERC Solar Module product is its mechanical load capacity. The front side can handle up to 5400Pa of pressure, while the backside can handle up to 2400Pa. This ensures that your solar panel will remain sturdy and reliable no matter the external conditions.

The PERC Solar Module product is a black mono PERC solar panel that utilizes half-cell MBB technology. This results in a higher efficiency rating and better performance overall. It has an impressive output of 405W, making it one of the most powerful solar panels available.

If you're looking for a top-of-the-line solar panel, the PERC Solar Module product is an excellent choice. It's manufactured by Canadian Solar, a trusted and reliable brand in the solar industry. With 415 Canadian Solar panels available, you can be sure that you're getting a high-quality product that will last for years to come.

Features:

Higher Power Output

Dual-sided generation ensures that the Bifacial PERC Solar Module produces a higher power output compared to other solar modules on the market, providing more energy for your PV system.

Reduced Costs

By effectively reducing balance of system (BOS) costs, the Bifacial PERC Solar Module makes it more economical for you to invest in the technology. Conversion efficiency reaches 21.25%, so you can be assured of maximum energy output for your investment.

Reduced Risk

The innovative non-destructive cutting technology used in the manufacturing of the Bifacial PERC Solar Module reduces the risk of hidden cracks, ensuring a higher yield for your PV system in the long run.

Enhanced Safety

The Bifacial PERC Solar Module has passed the Fire test Class A and is highly resilient, featuring a IP68 water-resistant structure for long-term weather endurance.

Excellent Durability

The Bifacial PERC Solar Module is resistant to light-induced degradation, which means that its efficiency will be maintained in even the harshest of environments. It is also resistant to salt mist, sand and dust, ammonia gas and other elements.

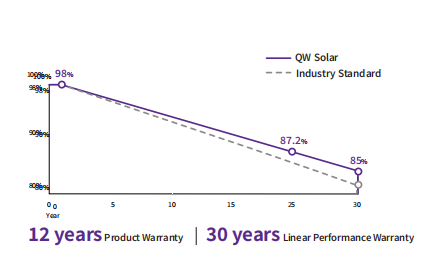

Long Warranty Period

The Bifacial PERC Solar Module has an excellent linear power warranty, with power degradation within 2-30 years being less than or equal to 0.45% per year. The minimum module output power is not lower than 85% each 30 years.

435-455W 2x 60CELLS Perc Solar Panel Module with MC4 Connectors IP68 Junction Box Grid patterned Back Glass435-455W 2x 60CELLS Perc Solar Panel Module with MC4 Connectors IP68 Junction Box Grid patterned Back Glass

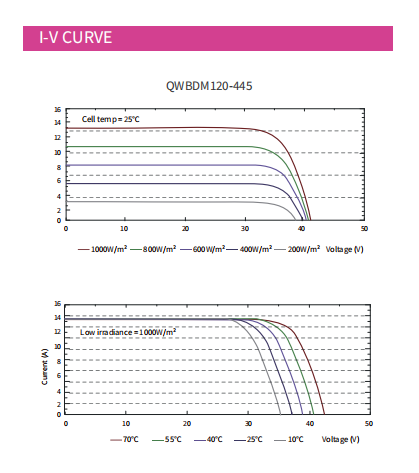

ELECTRICAL CHARACTERISTICS
Model/QWBDM120- 435W 440W 445W 450W 455W

Testing Condition: STC

Maximum Power (Pmax/W)

 435 440 445 450 455
Operating Voltage (Vmpp/V) 34.67 34.76 34.85 34.94 35.03
Operating Current (Impp/A) 12.55 12.66 12.77 12.88 12.99
Open-Circuit Voltage (Voc/V) 41.09 41.17 41.25 41.33 41.41
Short-Circuit Current (Isc/A) 13.40 13.51 13.62 13.73 13.84
Module Efficiency (%) 20.04 20.27 20.50 20.73 20.96

STC: Irradiance 1000W/m², Spectra at AM1.5,Cell Temperature 25℃.

Power Output Tolerance: 0~+5W, Test Uncertainty for Pmax:±3%

REAR SUDE POWER GAIN(REFERENCE TO 445W FRONT)

Pmax Gain 5% 10% 15% 20% 25%
Pmax/W 456.7 478.5 500.3 522 543.8
Vmpp/V 34.85 34.85 34.87 34.87 34.87
Impp/A 13.11 13.73 14.35 14.97 15.60
Voc/V 41.25 41.26 41.26 41.30 41.30
Isc/A 14.39 15.05 15.82 16.59 17.26

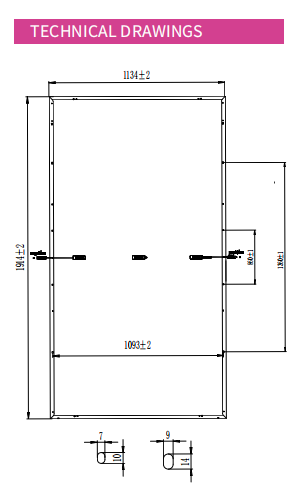

435-455W 2x 60CELLS Perc Solar Panel Module with MC4 Connectors IP68 Junction Box Grid patterned Back GlassMECHANICAL CHARACTERISTICS

Solar Cell Mono-Crystalline Silicon 182*91mm
No. of Cells 120(6*20)
Module Dimensions 1914*1134*30mm(75.35*44.65*1.18inches)
Weight 26.4kg
Front Glass 2.0mmAR Coating Tempered Glass
Back Glass 2.0mm White Grid-patterned Glass
Frame Anodized Aluminium Alloy
Junction Box IP68,3 Bypass Diodes
Output Cables

4mm² , 300mm(+)/300mm(-)

or Customized Length
Connectors MC4

APPLICATION CONDITIONS

Maximun System Voltage DC1500V
Operating Temperature -40°C~+85°C
Maximun Series Fuse 25A
Safety Protection Class ClassⅡ
Mechanical Load Front side 5400Pa, Backside 2400Pa
Refer.Bifaciality Factor 70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.34%/°C

-0.25%/°C

+0.04%/°C

42±2°C

Applications:

The PERC PV module is suitable for a wide range of applications, including residential, commercial, and industrial settings. It can be used in grid-tied or off-grid systems, and is particularly effective in areas with high temperatures and low light conditions. The high bifaciality factor of the module means that it is able to generate power from both sides, increasing its overall efficiency.

The Sangsolar can be used in a variety of scenarios, such as rooftop installations, ground-mounted arrays, and solar carports. It is also suitable for use in agricultural settings, providing power for irrigation systems and other farm equipment. The module is designed to withstand harsh weather conditions, making it ideal for use in areas with high wind and snow loads.

With its Class II safety protection rating, the Sangsolar is a safe and reliable choice for any solar installation. It is easy to install and maintain, and is backed by a warranty from the manufacturer. Whether you are looking for a high-performance monoperc module for your home or business, or need a reliable source of power for your farm or other outdoor applications, the Sangsolar PERC Solar Module is an excellent choice.

Support and Services:

The PERC Solar Module product technical support and services include:

- Assistance with installation and commissioning

- Troubleshooting and diagnosis of issues

- Technical guidance for optimal performance

- Warranty and claims support

- Maintenance and cleaning recommendations

- Product documentation and manuals

PACKING CONFIGURATION

Type of Shipping Platform Trailer (17.5m) Container 40'HC
Pieces/Pallet 36 36
Total Amout 1152 864
