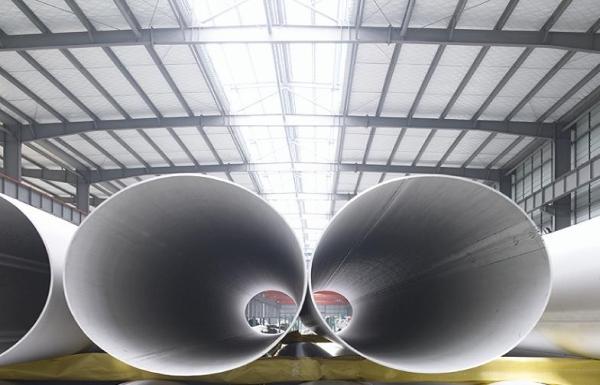

Big Diameter / Thin Wall Stainless Steel Tubing 304/304L 316L 2205 904L
Big Diameter / Thin Wall Stainless Steel Tubing 304/304L 316L 2205 904L
Specifications
Brand Name :
Hainer Steel
Model Number :
304/304L,316L,310S, 904L etc.
Certification :
ISO9001,SGS,CQC,BV, TUV etc.
Place of Origin :
China
MOQ :
100Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
5000Tons/Month
Delivery Time :
10-15 days
Description



Big Diameter / Thin Wall Stainless Steel Tubing 304/304L 316L 2205 904L







Quick Details:





















































Product Item No.

0013smls-Cosco Steel

Standard:

JIS,AISI,ASTM,GB,DIN,EN

Steel Grade:

310S(1.4845);317L(1.1138);321H(1.4878);304H(1.4948), etc

Model Number:

300 ,400 Series

Outer Diameter:

6mm-219mm

Thickness:

0.25mm-3mm

Section Shape:

Round

Surface Treatment:

annealed/pickled

Secondary Or Not:

Non-secondary

Type:

Seamless/welded

Technique:

Cold drawn& Cold Rolled




Specifications:






























































































































































Standard

ASTM A554, A249, A269 and A270, A312/DIN11850

Material Grade

201 ( Ni 0.8%-1.2%),



202 (Ni 3.5%~4.5%),



301(Ni 5%)



304 (Ni 8%, Cr 18%),



304L(Ni8,Cr18 with low carbon)



316 (Ni 10%, Cr 18%),



316L (Ni10%~14% CR:18% with low carbon),

Outer Diameter

ROUND :6mm—219mm SQUARE:10MMX10MM-100MMX100MM/RECTANGUALR:5MMX10MM-50MMX100MM

Thickness

0.25mm - 3.0mm

Length

6m or as customers´ request



Tolerance

a) Outer Diameter: +/- 0.2mm

b) Thickness: +/- 0.02mm

c) Length: +/- 5mm

Surface

Satin / Hairline/180G/320G/400G/600G(MirrorFinished)

Application

Decoration Structure, upholstery, industry instrument

Test

ULTRASONIC THICKNESS METER ,EXPANSION TEST,



EDDY TEST ETC.









Chemical Composition of Material

Material





Composition

201

202

304

316

430

C

≤0.15

≤0.15

≤0.08

≤0.08

≤0.12

Si

≤1.00

≤1.00

≤1.00

≤1.00

≤1.00

Mn

5.5-7.5

7.5-10

≤2.00

≤2.00

≤1.00

P

≤0.06

≤0.06

≤0.045

≤0.045

≤0.040

S

≤0.03

≤0.03

≤0.030

≤0.030

≤0.030

Cr

16-18

17-19

18-20

16-18

16-18

N

3.5-5.5

4-6

8-10.5

10-14



Mo







2.0-3.0





Mechanical Property

Material Item

201

202

304

316

Tensile Strength

≥535

≥520

≥520

≥520

Yield Strength

≥245

≥205

≥205

≥205

Extension

≥30%

≥30%

≥35%

≥35%

Hardness (HV)

<253

<253

<200

<200






Applications:





We,this type seamless steel pipe be widely used in kinds of industries:



Petroleum,Chemical industry,Environment protection equipment,



Medical equipment,Shipbuilding industry,Paper making factory,



Electric power plant,Pollution discharging project etc.







Our advantage:





Competitive price with good quality



Soonest delivery days (Big enough stock 304L Seamless Pipe in warehouse)



Good quality control system



Good after sales services



Good package
