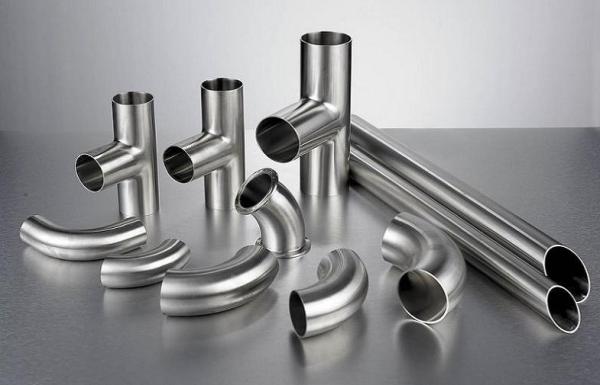

304 stainless steel 90 degree elbow , ASTM , JIS , BS , DIN , UNI Standard
Description:
ChinaStandardGB12459-90etc
U.S.AStandardASTMA403,ANSIB16.9,ANSIB16.28,ANSIB16.11etc
GermanyStandardKIN2605,DIN2606,DIN2615etc
JapaneseStandardJISB2311,JISB2312,JISB2313etc.
Applications:
We,thistypepipefittingsbewidelyusedinkindsofindustries:
Specification
NominalPipeSize(NPS) | OutsideDiameter | Center-to-Center,O | Back-to-Face,K | |
mm | Inch | |||
1/2 | 21.3 | 0.84 | 76 | 48 |
3/4 | 26.7 | 1.05 | 76 | 51 |
1 | 33.4 | 1.32 | 76 | 56 |
11/4 | 42.2 | 1.66 | 95 | 70 |
11/2 | 48.3 | 1.90 | 114 | 83 |
2 | 60.3 | 2.38 | 152 | 106 |
21/2 | 73.0 | 2.88 | 190 | 132 |
3 | 88.9 | 3.50 | 229 | 159 |
31/2 | 101.6 | 4.00 | 267 | 184 |
4 | 114.3 | 4.50 | 305 | 210 |
5 | 141.3 | 5.56 | 381 | 262 |
6 | 168.3 | 6.62 | 457 | 313 |
8 | 219.1 | 8.62 | 610 | 414 |
10 | 273.0 | 10.75 | 762 | 518 |
12 | 232.8 | 12.75 | 914 | 619 |
14 | 355.6 | 14.00 | 1067 | 711 |
16 | 406.4 | 16.00 | 1219 | 813 |
18 | 457.0 | 18.00 | 1372 | 914 |
20 | 508.0 | 20.00 | 1524 | 1016 |
22 | 555.9 | 22.00 | 1676 | 1118 |
24 | 610.0 | 24.00 | 1829 | 1219 |
