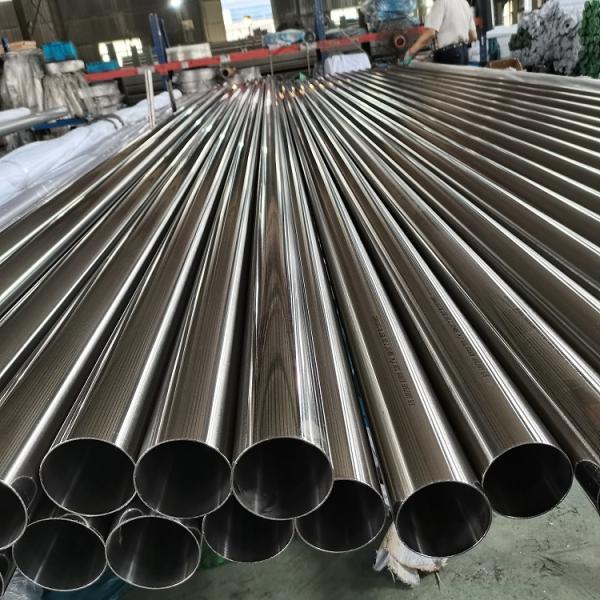

Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tube S31803 / S32205 / S32750
Specifications
Brand Name :
Hainer Steel
Model Number :
201，202，304，304L，316L，2205，904L etc.
Certification :
ISO9001,SGS,CQC,BV, TUV etc.
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
2000Tons/Month
Delivery Time :
15-20 days or Stock
Description

Bright Anealing Food Grade Stainless Steel Tubing S31803 / S32205 / S32750

QuickDetail:

ProductName

Bright Annealing Stainless Steel Tube For Food Processing ,

S31803 / S32205 /S32750

PipeStandard

JIS, AISI, ASTM, GB, DIN, ENETC.

Material

S31803 / S32205 / S32750 / S32900 / S31500 etc

Surface

Annealing And Picking Or Polishing

Outer Diameter

3.17mm-273mm

Thickness

0.3mm - 20mm

Hardness

≤30HRC
Tolerance According To Standard Or Client´s Requirement
Chemical Composition According To Standard Or Client´s Requirement

Description:

  1. ProductItemNo.: 0010foodtube-CoscoSteel
  2. Standard:ASTM A789/ASME SA789
  3. Material:S31803/S32750/S32205
  4. Outer Diameter:3.18mm-273mm
  5. Thickness:0.3mm-20mm
  6. Lengthofpipe:As required
  7. Kind:Straight tube/U-tube
  8. Technique:Cold Rolling/Cold Drawing
  9. Marking:Registeredlogo,HeatNumber,SteelGrade,Standard,Size
  10. Packing:Plasticbageachtube,woodenbox
  11. H.SCode:7304.4190
  12. FluidTubeStandardAndSize:

Standard

IS0

DIN1

DIN2

GB

IDF

Size

Ø19.1x1.5

Ø28x1.5

Ø29x1.5

Ø25x1.6

Ø19.1x1.2

Ø25.4x1.5

Ø34x1.5

Ø35x1.5

Ø32x1.6

Ø25.4x1.2

Ø31.8x1.5

Ø40x1.5

Ø41x1.5

Ø38x1.6

Ø31.8x1.2

Ø38.1x1.5

Ø52x1.5

Ø53x1.5

Ø45x1.6

Ø38.1x1.2

Ø50.8x1.5

Ø70x2.0

Ø70x2.0

Ø57x1.6

Ø50.8x1.2

Ø63.5x2.0

Ø85x2.0

Ø85x2.0

Ø76x2.0

Ø63.5x2.0

Ø76.0x2.0

Ø104x2.0

Ø104x2.0

Ø89x2.0

Ø72.0x2.0

Ø101.6x2.0

Ø129x2.0

Ø129x2.0

Ø108x2.0

Ø89.0x2.0

Ø154x2.0

Ø154x2.0

Ø133x2.9

Ø101.6x2.0

Wealsoproducethistubesizesaccordingtobuyer’srequirement

Tolerance:OD+/-0.5mm;WallThickness+/-0.2mm.

Chemical Composition

(the number show in the table is Max, except for the specified rang)

C

Si

Mn

P

S

Cr

Ni

Mo

Cu

N

ASTM A789 S31500

0.03

1.40~2.00

1.20~2.00

0.030

0.030

18.0~19.0

4.3~5.2

2.5~3.0

　

0.05~0.10

ASTMA789

S31803

0.03

1.00

2.00

0.030

0.020

21.0~23.0

4.5~6.5

2.5~3.5

　

0.08~0.20

ASTMA789

S32205

0.03

1.00

2.00

0.030

0.020

22.0~23.0

4.5~6.5

3.0~3.5

　

0.14~0.20

ASTM A789

S32750

0.03

0.80

1.20

0.035

0.020

24.0~26.0

6.0~8.0

3.0~5.0

0.50

0.24~0.32

ASTM A789

S32760

0.05

1.00

1.00

0.030

0.010

24.0~26.0

6.0~8.0

3.0~4.0

0.5~1.0

0.20~0.30

Applications:

We,thistypeseamlessandweldedfoodsteeltubebewidelyusedinkindsofindustries:

  1. Petrochemicalindustry,Electricity,Nuclearenergy,
  2. Chemicalfertilizer,Boiler,Lighttextile,
  3. Papermaking,Food,Dairyproducts,Makewine,Pharmacybio-engineering,
  4. Environmentprotectionequipment,etc.

MPS(ManufacturingPipeProcedure)
