Thick Wall Precision Seamless Steel Tube DIN17175 Cold Drawn Steel Pipe
Thick Wall Precision Seamless Steel Tube DIN17175 Cold Drawn Steel Pipe
Thick Wall Precision Seamless Steel Tube DIN17175 Cold Drawn Steel Pipe
Thick Wall Precision Seamless Steel Tube DIN17175 Cold Drawn Steel Pipe
Specifications
Brand Name :
Hainer Steel
Model Number :
St52,St35.8,St45-8,St52.4,ST35-ST52 etc
Certification :
ISO9001,SGS,CQC,BV, TUV etc.
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000Tons/Month
Delivery Time :
20-25 days
Description

Thick Wall Precision Seamless Steel Tube DIN17175 Cold Drawn Steel Pipe

QuickDetail:

1) Standard: DIN17175
2) Steel grade: St52,St35.8,St45-8,St52.4,ST35-ST52
3)Thickness:1.65 - 25.4 mm
Outer Diameter: 0.5 - 24 inch
4) Condition: GBK(+A)NBK(+N), BK(+C), BKS
5) Size: OD3-60mm. WT0.5-8mmMax length 12meters.
6)Technique:Cold Drawn
7) All steel tube can test Ultrasonic flaw detector, Eddy current flaw detector, depend on customers requirement
8) Usage: It is used for pipelines of boiler industry.

Description:

  1. ProductItemNo.:007Precision-CoscoSteel
  2. Productname: Cold Drawn Seamless Tube For Boiler And Heat Exchanger DIN17175 / 2013 new products Very Professional DIN17175/En10216-2 cold drawn seamless tube / DIN17175 St45.8 Cold Drawn/Rolled Seamless Steel Tube / cold drawn seamless tube

  3. Standard: DIN17175

  4. Material: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910...

  5. Size: 12mm~323.9mm

  6. Wall Thickness: 2mm~45mm

  7. Manufacturing method: Cold-drawn

  8. Delivery condition: Annealed, normalized(used for medium and low carbon steel, Short cycle ), stress-relieving.

  9. End finish: Plain end with square cut, bevelled end above 2´´.

  10. Surface treatment: Oil-coating, black-painting, end plastic caps to be confirmed.

  11. Standard packing: In bundles tied with steel strips.

  12. Quality Control:Our quality control department consists of experienced technicians. These personnel strictly control the whole production procedure, from introduction of raw materials to finish products. They ensure high quality products for our customers.

Outside DiameterTolerance

Standard

Outside Diameter

OD Tolerance

DIN 17175

≤120mm

±0.6%(min.±0.25mm)

>120mm

±0.75%

Wall Thickness Tolerance

Standard

OD

WT

WT Tolerance

DIN 17175

≤130mm

S≤2Sn

+15%,-10%

2Sn

12.5%,-10%

S>4Sn

±9%

130mm-320mm

s≤0.05da

+17.5%,-12.5%

0.05da

±12.5%

S>0.11da

±10%



Standard


Grade

Chemical
Composition (%)

Mechanical
Properties

C

Si

Mn

P

S

Cr

Mo


Tensile Strength

(M pa)


Yield Strength

(M pa)


E

( % )

DIN17175

ST35.8

≤0.17

0.10-0.35

0.40-0.80

≤0.030

≤0.030

/

/

350-480

≥235

≥25

ST45.8

≤0.21

0.10-0.35

0.40-1.20

≤0.030

≤0.030

/

/

410-530

≥255

≥21

15Mo3

0.12-0.20

0.10-0.35

0.40-0.80

≤0.030

≤0.030

/

0.25-0.35

450-600

≥270

≥20

13CrMo44

0.10-0.18

0.10-0.35

0.04-0.70

≤0.030

≤0.030

0.70-1.10

0.45-0.65

440-590

≥290

≥20

10CrMo910

0.08-0.15

≤0.50

0.40-0.70

≤0.030

≤0.030

2.00-2.50

0.90-1.20

450-600

≥380

≥18




Applications:

We,thistypeseamlesssteelpipebewidelyusedinkindsofindustries:

  1. Bicyclespindle,hub,carriage,handleofchildrencart
  2. Automobileoilduct,oil,ductconnector,shockabsorb-er,sunvisor,leveljoystick
  3. Sportsequipment,electricroller
  4. Sewingmachine,medicalequipment


Ouradvantage

Weownedspecialequipmentformanufacturingvarioushighprecisionproducts

  1. High-precisioncolddrawingunit

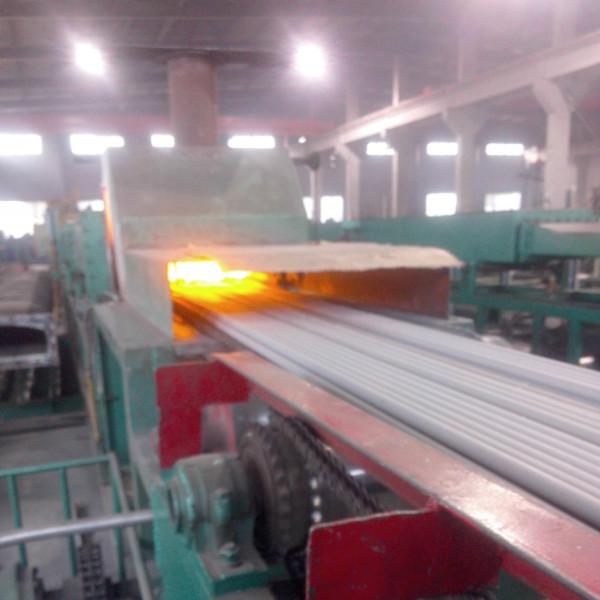

  2. Brightannealingoven
  3. Straighter
  4. 100%UTinspectionifbuyerrequested
  5. 100%ETinspectionifbuyerrequested
