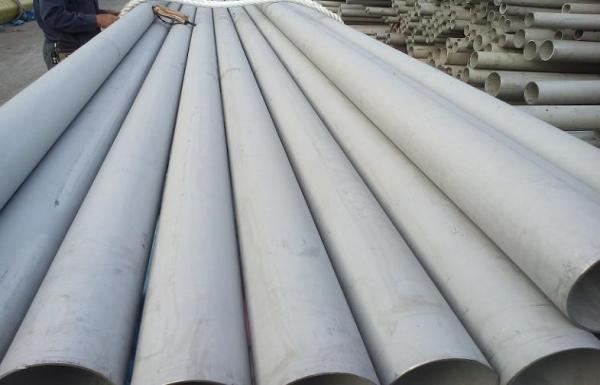

Heat Exchanger Varnished Hot Rolled Stainless Steel Tube Jis G3463 Sus317tb
Heat Exchanger Varnished Hot Rolled Stainless Steel Tube Jis G3463 Sus317tb
Heat Exchanger Varnished Hot Rolled Stainless Steel Tube Jis G3463 Sus317tb
Heat Exchanger Varnished Hot Rolled Stainless Steel Tube Jis G3463 Sus317tb
Specifications
Brand Name :
Cosco Steel
Model Number :
SUSU 304 TB, SUS 304L TB, SUS 310 TB, SUS 310S TB etc.
Certification :
ISO,SGS,CQC,etc.
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
600Tons/Month
Delivery Time :
20-25 days
Description

Hot Rolled / Varnished Stainless Steel Heat Exchanger Tube 316 , JIS G3463 SUS317TB

QuickDetail:

Tube / Pipe Standard:JIS G3463

Material: SUS321TB,SUS321HTB,SUS347TB,SUS347HTB,SUSXM15J1TB,SUS329J1TB,SUS329J3LTB,SUS329J4LTB

,SUS405TB,SUS409TB,SUS 409LTB,SUS 410TB,SUS 410TiTB,SUS 430TB,SUS 430LXTB,SUS 430JL!LTB,SUS 436LTB,SUS 444TB,SUS XM8TB,SUS XM27TB

Outsider Diameter: 10mm-650mm

Min wall thickness: 1mm to 80 mm

Delivery Condition:Hot-Finished & Varnished

Type of Pipe/Tube: Seamless Steel Tube

Description:

  1. Type:Round Or Oval Seamless Tube
  2. Application:Boiler, electricity, mechanical, gas cylinder, chemical, offshore and oil service.
  3. Surface Finishing:Anti-corrosion and high-temperature resistant with black painting.
  4. Marking:Registeredlogo,HeatNumber,SteelGrade,Standard,Size
  5. Packing:woodenbox
  6. H.SCode:7304.4190
  7. OrderingInformation:Itshallbetheresponsibilityofthepurchasertospecifyall

Requirementsthatarenecessaryforproductsunderthisspecification.Suchrequirementstobeconsidered

included,butarenotlimitedto,thefollowing:

7.1.1Quantity(feet,meters,ornumberoflengths)

7.1.2Nameofmaterial(seamlesstubes)

7.1.3Grade(Tables2for Low Alloy Steel)

7.1.4Size(outsiderdiameter,minimumwallthickness)

7.1.5Length(specificorrandom)

7.1.6Hydro-staticTestorNondestructiveElectricTest

7.1.7Condition(hotfinishedorcoldfinished)

7.1.8Specificationdesignationandyearofissue

7.1.9Specialrequirementsandanysupplementaryrequirementsselected

Specification

This Japanese Industrial Standard specifies the stainless steel tubes (hereafter referred to as "tubes") used for exchanging heat on the inside and outside of the tube, such as
superheater tubes of boilers, and heat exchanger tubs, condenser tube, such as superheater tube of boilers, and chemical and petroleum industries, However, it is not applicable
to the heating furnace tube.

Composition

Grade

C

Si

Mn

P

S

Ni

Cr

Mo

etc

SUS304 TB

0.08

1.00

2.00

0.040

0.030

8.00～11.00

18.00～20.00

SUS304L TB

0.030

1.00

2.00

0.040

0.030

9.00～13.00

18.00～20.00

SUS304H TB

0.04～0.10

0.75

2.00

0.040

0.030

8.00～11.00

18.00～20.00

SUS309TB

0.15

1.00

2.00

0.040

0.030

12.00～15.00

22.00～24.00

SUS309STB

0.08

1.0

2.00

0.040

0.030

12.00～15.00

22.00～24.00

SUS310TB

0.15

1.5

2.00

0.040

0.030

19.00～22.00

24.00～26.00

SUS310S TB

0.08

1.50

2.00

0.040

0.030

19.00～22.00

24.00～26.00

SUS316 TB

0.080

1.00

2.00

0.040

0.030

10.00～14.00

16.00～18.00

2.00～3.00

SUS316L TB

0.030

1.00

2.00

0.040

0.030

12.00～16.00

16.00～18.00

2.00～3.00

SUS316H TB

0.04～0.10

0.75

2.00

0.030

0.030

11.00～14.00

16.00～18.00

2.00～3.00

SUS316Ti TB

0.080

1.00

2.00

0.040

0.030

10.00～14.00

16.00～18.00

2.00～3.00

Ti≥5C

SUS317TB

0.08

1.00

2.00

0.040

0.030

11.00～15.00

18.00～20.00

3.00～4.00

SUS317LTB

0.030

1.00

2.00

0.040

0.030

11.00～15.00

18.00～20.00

3.00～4.00

SUS836LTB

0.030

1.00

2.00

0.040

0.030

24.00～265.0

19.00～24.00

5.00～7.00

N≥0.25

SUS890LTB

0.020

1.00

2.00

0.040

0.030

23.02815.00

19.00～23.00

4.00～5.00

Cu 1.00～2.00

SUS321 TB

0.080

1.00

2.00

0.040

0.030

9.00～13.00

17.00～19.00

Ti≥5C

SUS321H TB

0.04～0.10

0.75

2.00

0.030

0.030

9.00～13.00

17.00～20.00

Ti:4C～0.60

SUS347 TB

0.080

1.00

2.00

0.040

0.030

9.00～13.00

17.00～19.00

Nb≥10C

SUS347H TB

0.04～0.10

1.00

2.00

0.030

0.030

9.00～13.00

17.00～20.00

Nb:8C～1.00

SUSXM15J1TB

0.08

3.00～5.00

2.00

0.045

0.030

11.50～15.00

15.00～20.00

SUS329J1 TB

0.08

1.00

1.50

0.040

0.030

3.00～6.00

23.00～28.00

1.00～3.00

SUS329J3 TB

0.030

1.00

1.50

0.040

0.030

4.50～6.50

21.00～24.00

2.50～3.50

N:0.08～0.20

SUS329J3 LTB

0.030

1.00

1.50

0.040

0.030

4.50～7.50

21.00～26.00

2.50～4.00

N:0.08～0.30

SUS329J4 LTB

0.030

1.00

1.50

0.040

0.030

5.50～7.50

24.00～26.00

2.50～3.50

N:0.08～0.30

SUS405TB

0.08

1.00

1.00

0.040

0.030

-

11.50～14.50

Al:0.10～0.30

SUS409TB

0.08

1.00

1.00

0.040

0.030

-

10.50～11.75

Ti:6C～0.75

SUS409LTB

0.030

1.00

1.00

0.040

0.030

-

10.50～11.75

Ti:6C～0.75

SUS410TB

0.15

1.00

1.00

0.040

0.030

-

11.5～13.50

Ti:6C～0.75

SUS410TiB

0.08

1.00

1.00

0.040

0.030

-

11.5～13.50

N≥0.25

SUSXM8TB

0.08

1.00

1.00

0.040

0.030

-

17.00～19.00

-

Ti:12C～1.10

SUSXM27TB

0.010

0.40

0.40

0.030

0.020

-

25.00～27.50

0.75～1.50

N≥0.015
Note:The date in the above is maximum,except the spcified

Grade

Heat Treatment

Tensile

Strength

MPa(Min)

Yield

Strength

MPa(Min)

Elongation

D＜10mm

10≤D＜20 mm

D＞20 mm

SUS304 TB

≥1010,Quick Cold

520

205

27

30

35

SUS304L TB

≥1040,Quick Cold

480

175

SUS304H TB

≥1010,Quick Cold

520

205

SUS310S TB

≥1030,Quick Cold

520

205

SUS316 TB

≥1010,Quick Cold

520

205

SUS316L TB

≥1010,Quick Cold

480

175

SUS316H TB

≥1040,Quick Cold

520

205

SUS316Ti TB

≥920,Quick Cold

520

205

SUS321 TB

≥920,Quick Cold

520

205

SUS321H TB

Cold Working: ≥1095,

Quick Cold

Hot Working≥1095,Quick Hot

≥980,Quick Cold

520

205

SUS347H TB

Cold Working: ≥1095,

Quick Cold

Hot Working≥1095,Quick Cold

520

205

SUS329J1 TB

950,Quick Cold

590

390

10

13

18

SUS329J3 TB

≥950,Quick Cold

620

450

Size

Tolerance

Cold Finished

Welded

Nominal Outside Diameter

(D)

＜40

±0.25

±0.25

40～＜50

50～＜60

60～＜80

±0.30

±0.30

80～＜100

±0.40

±0.40

100～＜120

+0.40,-0.60

+0.40,-0.60

120～＜160

+0.40,-0.80

+0.40,-0.80

160～＜200

+0.40,-1.20

+0.40,-1.20

≥200

+0.40,-1.60

+0.40,-1.60

Outside Diameter

Outside Diameter

＜40

≥40

＜40

≥40

Nominal Wall Thickness

(S)

＜2.0

+0.40

+22%S0

+0.40 S0

+22%S0

2～＜2.4

+20%S0

+20%S0

2.4～＜3.8

3.8～＜4.6

≥4.6

Allowable Deviation of Length

Outside Diameter≤50mm

L≤7m

+7mm,-0mm

L＞7m

Each Additional 3m on Length, The maximum deviation to add 3mm on the length is not more than 15 mm

Outside Diameter＞50mm

L≤7m

+10mm,-0mm

L＞7m

Each Additional 3m on Length, The maximum deviation to add 3mm on the length is not more than 15 mm

Applications:

We,thistypeseamlessandweldedfoodsteeltubebewidelyusedinkindsofindustries:

  1. Petrochemicalindustry,Electricity,
  2. Nuclearenergy,
  3. Chemicalfertilizer,Boiler,Lighttextile,
  4. Spinningandweavingindustry,
  5. Powerindustry,
  6. Pharmacyandbiologyetc.

Ouradvantage

  1. 100%TubeHydro-staticTestorNondestructiveElectricTest
  2. 100%EddyCurrentTest
  3. 100%UltrasonicDetectorTestifcustomerrequested
  4. TensileandHardnessTestforeachHeatNo.’smaterial
  5. 100%Annealing&SolutionandPickling
