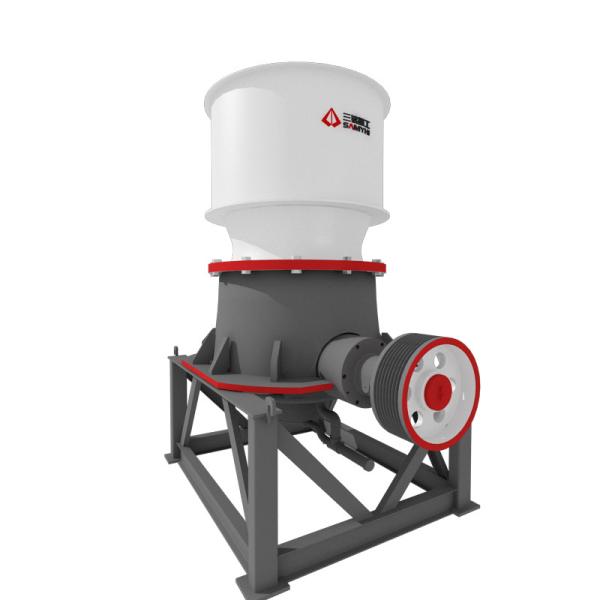

Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials
Specifications
Brand Name :
SAMYHI
Model Number :
DPH
Place of Origin :
CHINA
MOQ :
10 SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10 SET per month
Delivery Time :
20 work days
Certification :
ISO
POWER :
220,315
Capacity :
195-1050
Max Feed Size :
560
Material :
steel
Application :
Metallyurgy, Constrution,building materials
Delivery Detail :
20 work days after receive order
Packaging Details :
Standard Package
Description

Single Cylinder Cone Crusher With Stronger Carrying Capacity And High Output

Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials

Product Avantage

1. Upgrade Material And Process Makes The Bearing Capacity Stronger
Adopting advanced melting and casting technology, selecting high-quality carbon steel for the overall casting of the machine shell, and using spiral bevel gear transmission, with low noise and strong bearing capacity.


2. Upgraded sliding bearing, labor-saving hydraulic adjustment
Improvements have been made to the sliding bearing to adapt to higher rotational speeds, increase the swing speed of the main shaft, make the particle shape more uniform and the output higher. The discharge port can be adjusted by the hydraulic system without affecting production, and it has the function of dynamic compensation for the discharge port.


3. The bowl liner is free of fillers and quick and convenient to replace
The assembly surface is specially designed and precisely processed on a special machine tool. The bowl liner and the crushing wall do not require fillers and are convenient to replace.


4. High degree of automation, stronger safety
Adopting an automated remote control system to monitor core parameters such as temperature, pressure and current in real time. The hydraulic system is convenient and reliable, with safe and effective overload protection.

Steel Single Cylinder Cone Crushing Machine 315kw For Building Materials

Technical Parameters

Model Crushing Cavity Pattern Feed Port Size(mm) Discharge Port Rang (mm) MotorPower(KW) Pocessinh Capacity (t/h)
DPS660 EEC 560 41-83 315 350-1050
DPS660 EC 500 38-70 315 350-890

DPS660

 C 400 30-60 315 280-750
DPS440 EC 450 35-54 220 265-600
DPS440 C 400 29-51 220 225-510
DPS440 M 300 25-51 220 195-485
