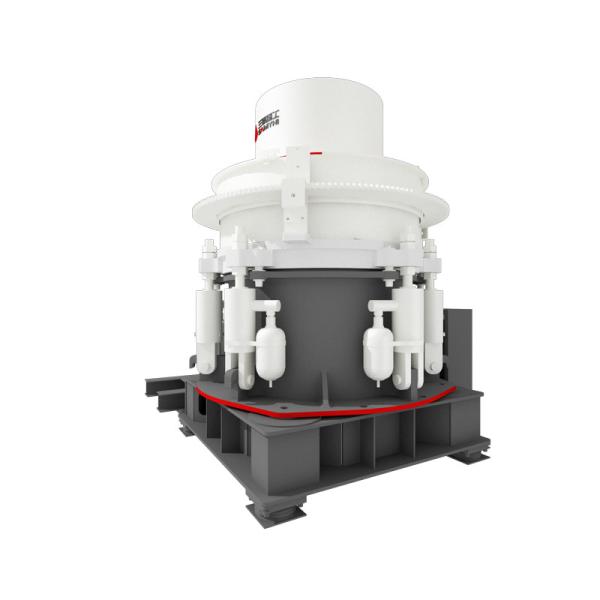

Limestone Multi Cylinder Cone Crusher With Capacity 220 Tph For Mining

Description

The equipment is equipped with an intelligent electronic control system with self-learning function, which monitors the spindle position and crushing force distribution in real time through the pressure sensor network, and realizes dynamic gap compensation with the hydraulic drive device to ensure that the output particle size is continuously adjustable within the range of 38-300mm. According to the test and verification of the China Building Materials Research Institute, the cube content of the finished product is more than 92%, and the needle-like ratio is less than 8%, which is particularly suitable for harsh engineering standard scenarios such as high-speed rail track plate aggregate.

In terms of adaptability to working conditions, the equipment uses a combination of a curved crushing wall made of Swedish SSAB wear-resistant steel and a manganese steel liner, combined with a fully enclosed dustproof structure, to effectively cope with the high abrasive conditions in the crushing process of river pebbles. Actual production data shows that when processing granite with a Mohs hardness of 7.2, the processing capacity of a single machine can reach 800t/h, which reduces energy consumption by 23% compared to traditional equipment and extends the service life of the liner by 40%.

Technical Details

Product Advantage

1. Fixed-axis heavy-duty structure design (VS peer cantilever spindle structure)
Adopting a fully constrained fixed-axis topology architecture, the spindle and the frame form a statically determinate support system. Compared with the traditional cantilever spindle structure, the axial stiffness is increased by 45%, and the dynamic load bearing capacity reaches 3200kN/m² (the industry average is 2400kN/m²). Combined with the high-strength alloy steel casting matrix optimized by finite element topology, the volume is reduced by 18%, and the fatigue life of the whole machine exceeds 30,000 hours (benchmarked against 28,000 hours for international brands). The standard floating anti-seismic base reduces the foundation cost by 37% compared with the traditional rigid installation, and meets the ASME B5.54 anti-seismic standard.

2. Laminated crushing dynamics optimization (VS single particle crushing mode)
The four-dimensional crushing cavity is constructed based on EDEM discrete element simulation, and the directional energy transfer is achieved through particle flow field reorganization technology. Actual working data show that the proportion of 3-25mm intermediate particles in the finished granite crushing products is 78% (the industry average is 65%), and the needle-like rate is stable below 6.8% (the industry standard is ≤15%).

3. Intelligent temperature control lubrication system (VS traditional water cooling system)
Integrated three-stage filtration precision oil circuit (β≥200), using aviation-grade titanium alloy plate air cooler (heat exchange efficiency ≥92%), completely eliminate the common oil-water emulsification problem of water cooling system.

4. Filler-free quick-change liner system (VS epoxy resin filled type)
The cone self-locking device is developed based on the DIN 7182 standard, and the bowl-shaped bearing mounting surface is precisely ground by a five-axis linkage machining center (flatness ≤ 0.02mm). The liner replacement operation time is shortened to 35 minutes (the traditional process takes 2-3 hours), and there is no need for a curing waiting period. The patented wedge preload structure increases the uniformity of contact stress distribution by 60%, and is successfully applied to the continuous crushing system of the Baihetan Hydropower Station (the daily replacement frequency is reduced by 83%).

5. Heavy-duty transmission assembly (VS rolling bearing solution)
Innovatively adopts a tin bronze-based self-lubricating bearing (PV value of 3.5MPa·m/s) + Klingenberg spiral bevel gear (AGMA 12 grade accuracy) transmission combination. Under the working condition of dust concentration of 200mg/m³, the transmission system noise is ≤85dB(A) (national standard ≤95dB(A)), and the rated torque transmission efficiency reaches 98.2% (94-96% of the same rolling bearing solution). Verified by the Chinese Academy of Mechanical Sciences, the life span under the impact load spectrum reaches 10^8 cycles (industry benchmark 7.5×10^7 times).

Applicable Materials and Application

Cone rusher machine applicable mining, metallurgy, building materials, transportation, water conservancy and hydropower, construction crushing. Applicable to the production of all machine-made sand in the sand and gravel aggregate industry, including common limestone, river pebble, basalt, granite, iron ore, construction waste, etc.Different models match different materials.


Company Introduction



Chongqing Sanming Heavy Industry Co., Ltd. was established in 1994 as a comprehensive equipment manufacturing company that integrates scientific research, production, sales and service. The company adheres to the business philosophy of "integrity, pragmatism and innovation" and is committed to providing customers with high-quality machine-made sand and gravel·intelligent green mine integrated solutions. Sanming Heavy Industry is based in Chongqing and serves the world. With a professional and strong team, it focuses on serving medium and large mining companies with an output of 500-3000 tons per hour, providing fixed crusher equipment, feed screening equipment, sand processing equipment, belt conveyor equipment, intelligent control system, mobile crushing station, tower sand making building and other products and services, and its application areas cover mining, building materials, roads, railways, bridges, coal, metallurgy, chemicals and many other industries.

Workshop

Production and Processing Workshop


Finished Product Display Workshop



Project Cases





FAQ

1. Can I request a sample order?
A: Yes, you can.

2. What is the lead time?
A: The lead time is 15 working days.

3. Is there a minimum order quantity (MOQ)?
A: The MOQ is 1 set.

4. Do you offer OEM and ODM services?
A: Yes, we do.

5. Will you provide pre-sale services?
A: Yes. Our team at SAMYHI, composed of experienced specialists, will provide timely solutions tailored to client requirements.

6. Is your after-sales service top-notch?
A: Absolutely. SAMYHI’s skilled technicians are available for onsite installation, commissioning, and training upon request.

7. Do you offer technical support?
A: Yes, SAMYHI provides ample hardware resources, especially for large-scale production lines, enabling clients to conduct installation, commissioning, and acceptance testing prior to delivery.
