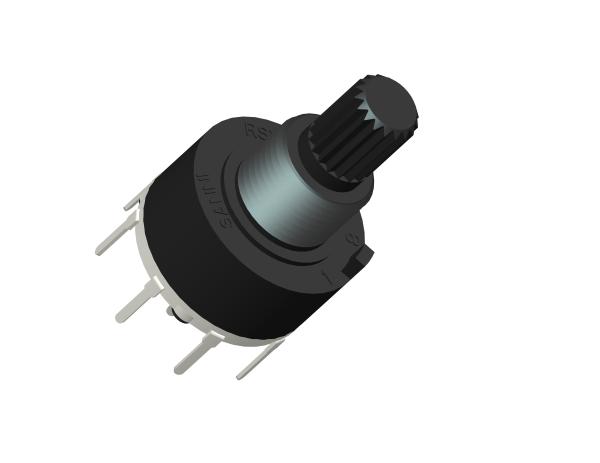

2 Pole 2 Position Rotary Switch Channel Selecting Band 16MM RS16211-2P2T
2 Pole 2 Position Rotary Switch Channel Selecting Band 16MM RS16211-2P2T
Specifications
Brand Name :
SANNI
Model Number :
RS16211-2P2T
Place of Origin :
China
MOQ :
2000PCS
Price :
USD0.3~0.5 per pc
Payment Terms :
T/T
Supply Ability :
10000pcs per Month
Delivery Time :
25 Working days
Packaging Details :
1000pcs per Carton box,
Model NO. :
RS16211-2P2T
Specification :
16MM
Circuit :
2Pole and 2 Position
Structure :
Screw Shank
Trademark :
SANNI
Operation :
Knob
Description

RS16211-2P2T Rotary Switch Channel Selecting Band Switch

Description of Rotary Switch

The rotary switch is a switch operated by rotation. They are often be chosen when more than 2 locations are needed, such as a three-speed fan or CB radio with multiple receiving frequencies or "channels". The rotary switch will always have clear click sound when you rotate it to change the band.

Application:

Used as channel selectors on signal receivers, as well as range selectors on electric meter equipment and band selectors on multi-band radios, etc....

Product Specifications

1.Electrical Characteristics
Rating(max.)/(min.)(Resistive load) 0.1A 16V DC/50uA 3V DC
Contact Resistance(Initial/After Operating life) 100mΩmax.
Insulation resistance 100MΩ min. 100V DC
Voltage proof 100V AC for 1 minute
2.Mechanical Characteristics
Switching Angle RS121:30o±3o
Rotation Stopper strengh Min:5Kgf
Totational torque 30±15mN.m
Shaft push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
Shaft Wobble Max: 0.6*L/20mm P-P
3.Durability
Operating life without load 10,000 cycles 100mΩ max
Operating life with load Load:as rating 10,000 cycles 150mΩ max
4.Environmental Performance
Operating temperature range -10oC to +85oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 350oC±10oC/3+1S
Wave Soldering 260oC±5oC/10±1S
Reflow Soldering See temperature distribution on data sheet

FAQ

Q: Can I get sample from you?

A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

Q: Do you accept customization?

A: Yes, customization is acceptable, please contact our sales staffs for consult.

Q: Can you provide help for technical issues?

A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
