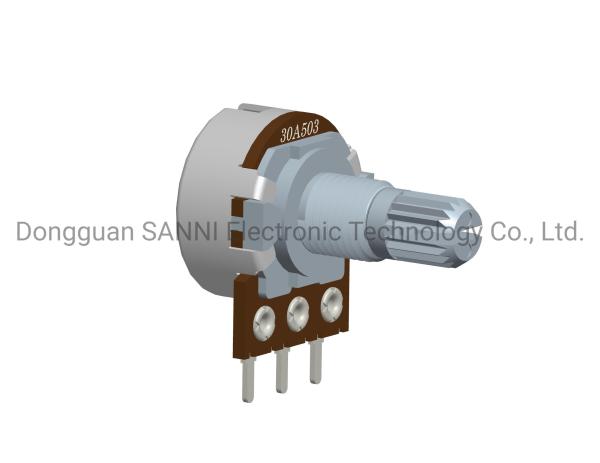

Single Unit Shaft Sealed Rotary Potentiometer 16mm Horizontal Mount RV16110N0
Single Unit Shaft Sealed Rotary Potentiometer 16mm Horizontal Mount RV16110N0
Specifications
Place of Origin :
China
Brand Name :
SANNI
MOQ :
2000PCS
Packaging Details :
2000PCS/BOX
Delivery Time :
25 Working days
Payment Terms :
T/T
Supply Ability :
30000pcs/Month
Model Number :
RV16110N0
Price :
USD0.2~0.3 per pc
Model NO. :
RV16110N0
Taper :
Audio or Linear
Brand :
SANNI
Mount Direction :
Horizontal
Installation :
PCB DIP Mounting
Customization :
Available | Customized Request
Description

RV16110N0 Rotary Potentiometer 16mm Single Unit Shaft Sealed Potentiometer

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.

Good sealing performance

Can be with positioning.

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.

Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, automobile power amplifier,multimedia audio, and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.

Specification of Rotary Potentiometer

1.Mechanical Characteristics
Rotation stopper strength Min:6.0Kgf
Total rotation angle 300o±5o
Totational torque 20-200gf.cm
Key push-pull strength Min:8Kgf
Vibration 10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively.
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 500Ω-2MΩ
Total resistance tolerance 50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 250V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
4.Welding heat reference
Reference for hand soldering 260oC-280oC±10oC/3+1S

Our Services

1. Offer 1 year warranty

2. OEM/ODM service to meet all your needs

3. within 24 hours to reply your inquiries

4. Strong R&D team for technical support

5. Offer free sample for test
