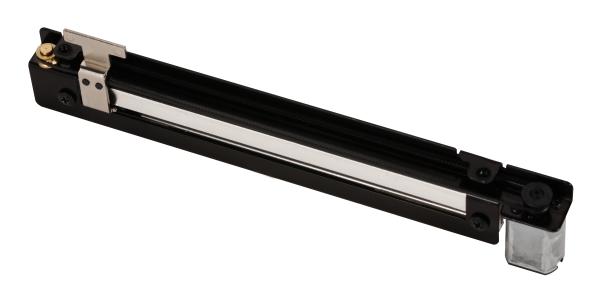

Dual Rail Motorised Slide Potentiometer Single Unit For Sound Console System
Dual Rail Motorised Slide Potentiometer Single Unit For Sound Console System
Specifications
Brand Name :
SANNI
Model Number :
RAM0104NM
Place of Origin :
China
MOQ :
500pcs
Price :
USD15~18 per pc
Payment Terms :
T/T
Supply Ability :
5000pcs per Month
Delivery Time :
45 working days
Packaging Details :
100pcs per Carton box,
Model NO. :
RAM0104NM
Resistance change scale :
Linear or Audio
Application :
Sound Console System
Brand :
SANNI
Slide Travel :
100mm
Resistance :
Standard or Customize
Description

RAM0104NM Motorised Linear Slide Potentiometer Double Rail Single Unit for Sound Console System

Description of Slide Potentiometer

Sliding potentiometer (pot) uses a resistance element and sliding contacts to form an adjustable voltage divider. If only two terminals, one end of the element and adjustable contacts are used, it acts as a variable resistor or rheostat.

Features of Slide Potentiometer

  • RoHS compliant
  • Vertical PCB insert type
  • Motor dirve
  • Small volume
  • Width: 16mm
  • Inner double slide rail
  • Double rails for the slide track guide the smooth slide without wobble

Dual Rail Motorised Slide Potentiometer Single Unit For Sound Console System
Product Characteristics

1.Electrical Characteristics
Total resistance 5KΩ-500KΩ
Total resistance tolerance ±10% or ±20%
Rated Power 0.05W for linear taper, 0.025W for audio taper
Dielctrical strength 250V DC for １minute
Max. operation voltage 50V AC, 20V DC
Residual resistance 50Ω Max
Insulation resistance 100MΩ min．(DC 500V)
Noise 47 mV max
2.Mechanical Characteristics
Lever travel 100±1mm
6Kgf.cm Min 2(2xL/25)mm P-P Max.
Lever stop strength 6Kgf.cm Min
Slide trust of the Lever 5Kgf 10s Min
Operating force 5-35gf.cm
Life Cycle 30,000 cycles
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -30oC to +70oC
4.Welding Performance
Reference for hand soldering 235℃ 5sec.
Motor Drive Characteristics
Rated voltage 5V DC
Actuator move speed 20mm/0.1 sec. Min.
Operating voltage 4~6V DC
Max current 300-600mA

Our Services

  1. Offer 1 year warranty
  2. OEM/ODM service to meet customer's requirements.
  3. Strong R&D team for professional technical support
  4. Offer free sample for test

Our Advantage

  1. More than 10 years of experience in research and development production design.
  2. 10 automation production lines, more than 100 experienced workers for higher precision products.
  3. 10+ dedicated and experienced engineers and designers in R&D department.
  4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
  5. Professional Testing instruments and team to ensure product quality.


Dual Rail Motorised Slide Potentiometer Single Unit For Sound Console System
Dual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console SystemDual Rail Motorised Slide Potentiometer Single Unit For Sound Console System
